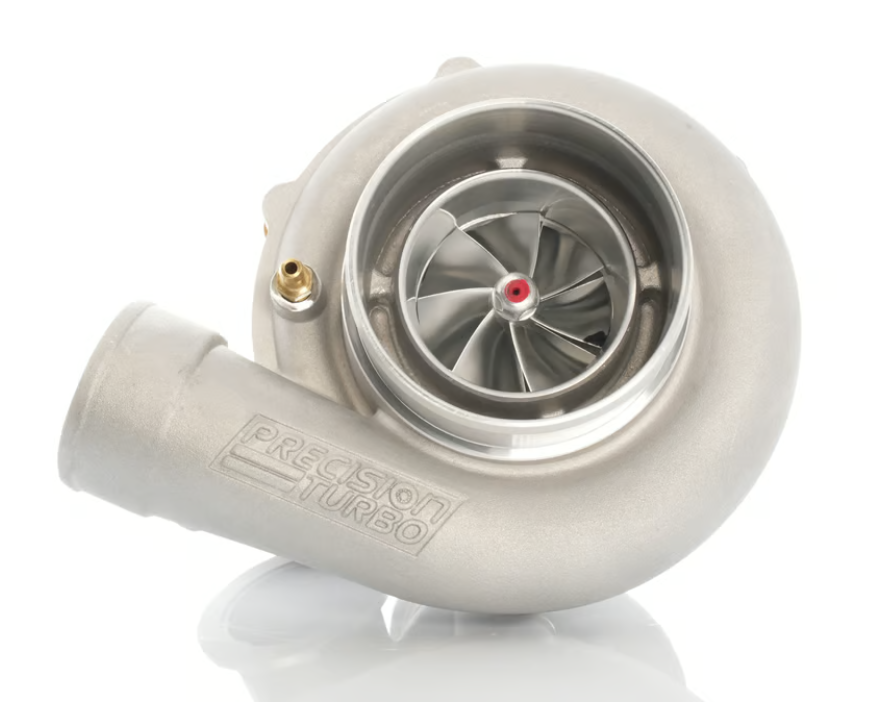

PTE – Next Gen PT6870 BB HP CC W/ T3 SS V-BAND IN/OUT 1.05 A/R

PTE – Next Gen 6870 BB HP CC W/ T3 SS V-BAND IN/OUT 1.05 A/R

The new 6870 Next Gen brings a new CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow and an all-new compressor cover design with flow enhancements and advanced machining techniques, providing 10% more airflow and greater efficiency at higher pressure ratios. This unit is available now in T3, T4 open, T4 divided or V-Band In/out housing options.

Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 1200 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow. • High flow / highly efficient 70mm turbine wheel • No price increase over Gen 2. Specifications: • Compressor Wheel Inducer: 68mm • Compressor Wheel Exducer: 92.5mm 94.7 ET • Turbine Wheel Inducer: 78.7mm • Turbine Wheel Exducer: 70.2mm
