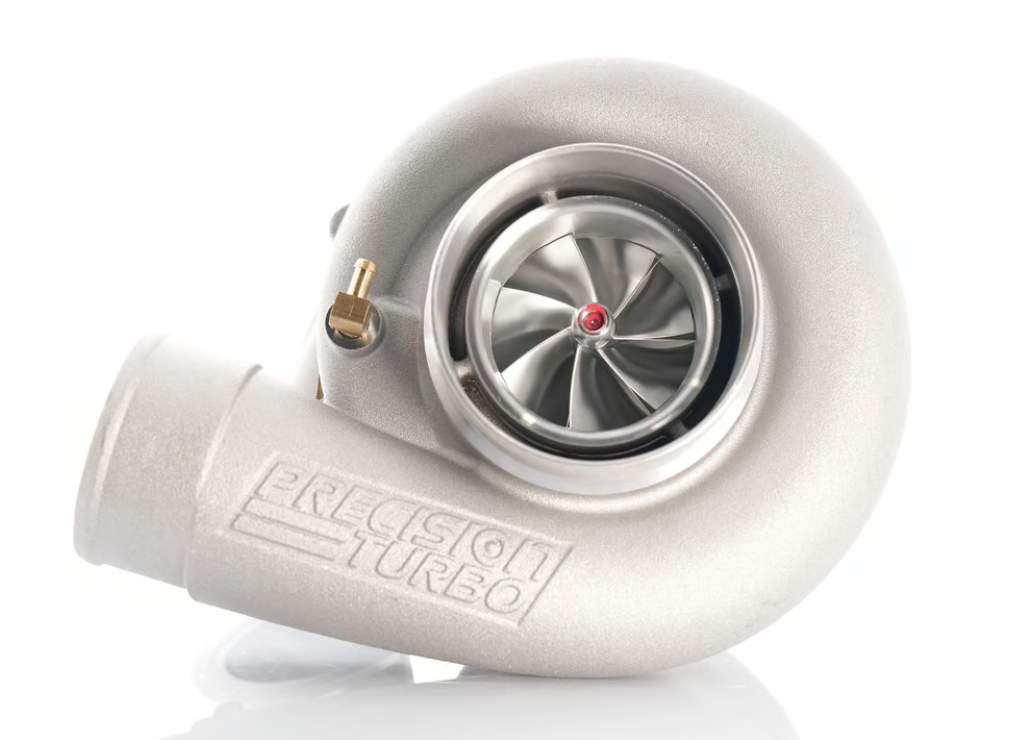

PTE – NEXT GEN PT6466 BB HP CC W/ T3 V-BAND IN/OUT .82 A/R

NEXT GEN PT6466 BB HP CC W/ T3 V-BAND IN/OUT .82 A/R

This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.

Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 1000 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow. • High flow / highly efficient 66mm turbine wheel Specifications: Compressor Wheel Inducer: 64mm Compressor Wheel Exducer: 86mm/ 88.1mm ET Turbine Wheel Inducer: 74mm Turbine Wheel Exducer: 66mm
