SVT Design Fab – EVAP Purge Valve Replacement for Fiesta ST 1.6L

SVT Design Fab – EVAP Purge Valve Replacement for Fiesta ST 1.6L

Replaces a section of the Evap Purge Valve harness to fix the common P1450 “unable to bleed tank vacuum” code and the stalling issue that comes with it when filling up the tank.

Features:

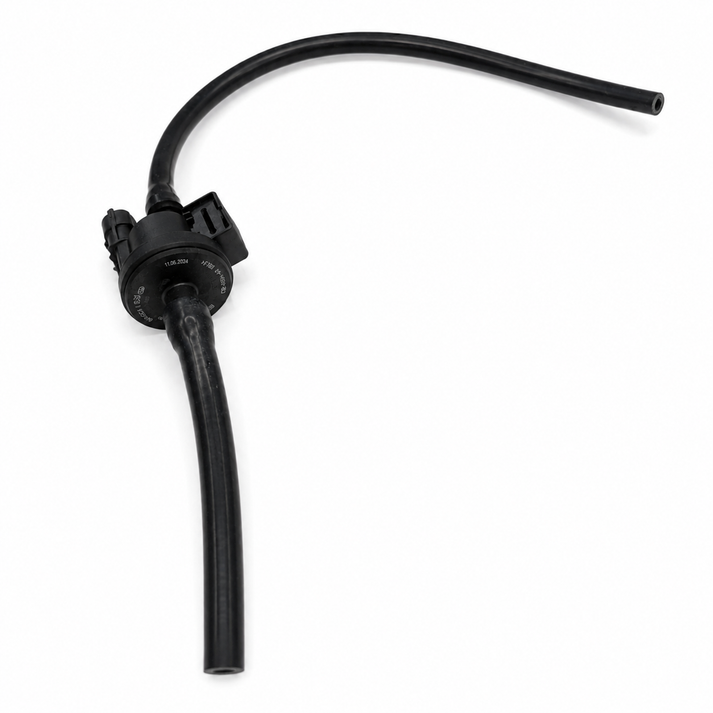

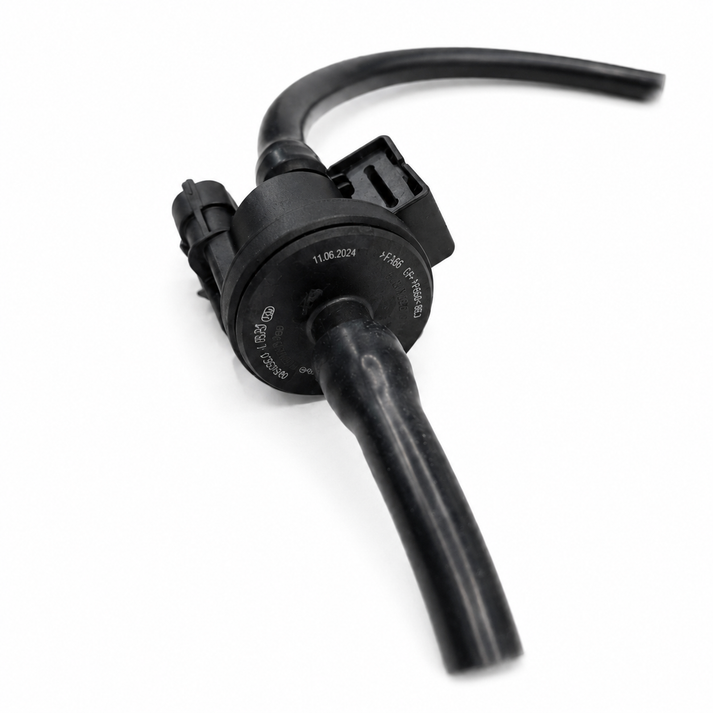

• Pre assembled harness section with Motorcraft purge valve
• Fixes P1450 code and fuel fill stalling issue
• Direct fit into the factory evap harness location

Install notes: make a vertical incision on both sides of the evap harness, at the tee up front and at the connection below the brake booster. Slide the new line over the barbs, noting purge valve flow direction runs away from the fuel tank toward the front of the vehicle.

Applications: 2014 to 2015 Fiesta ST, 1.6L EcoBoost

Available at Engineered Motorsport Solutions INC.
www.emsinc-tn.com | (423) 500-4901 | Sales@emsinc-tn.com
