SVT Design Fab – Single Port Aux Fuel Throttle Body Adapter for 2014-2019 Fiesta ST 1.6L

SVTDF Single Port Auxiliary Fuel Throttle Body Adapter | 2014 to 2019 Ford Fiesta ST

A clean solution for adding single port auxiliary fueling to the Fiesta ST while upgrading to a larger EcoBoost throttle body.

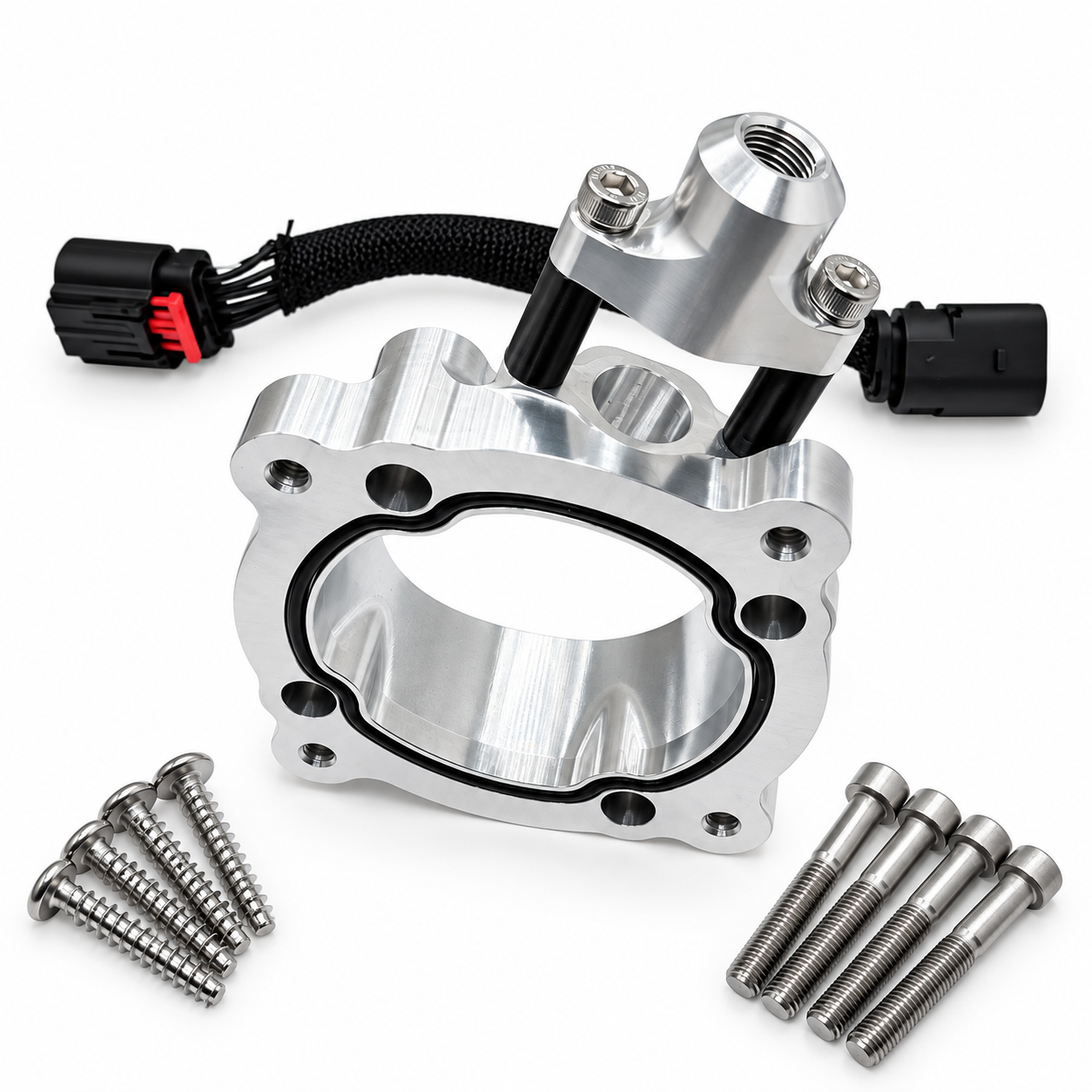

The SVT Design & Fab Single Port Auxiliary Fuel Throttle Body Adapter allows a 2.0L or 2.3L EcoBoost throttle body to be installed on the 1.6L EcoBoost intake manifold while providing an integrated port for an auxiliary fuel injector.

Features

• Designed for single port auxiliary fueling
• Adapts a 2.0L or 2.3L EcoBoost throttle body to the 1.6L EcoBoost intake manifold
• Compatible with Injector Dynamics ID1050 injectors
• Compatible with injectors using a 14mm port bore and 14mm feed bore
• Includes throttle body adapter
• Includes wiring harness jumper
• Includes mounting hardware for all three common injector lengths
• Includes injector adapter with 1/8 NPT fuel feed port
• Available in raw, red anodized, black anodized, or blue anodized finish
• Optional 57mm Focus RS throttle body available
• Optional 63mm Mustang throttle body available

Applications

• 2014 to 2019 Ford Fiesta ST
• 1.6L EcoBoost engine
• Single port auxiliary fuel applications

Available at Engineered Motorsport Solutions INC.

www.emsinc-tn.com | (423) 500-4901 | Sales@emsinc-tn.com
