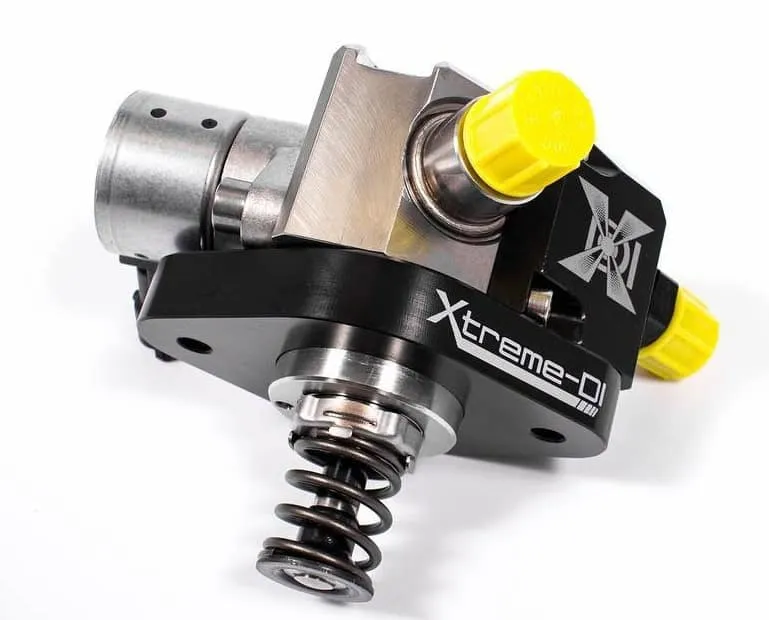

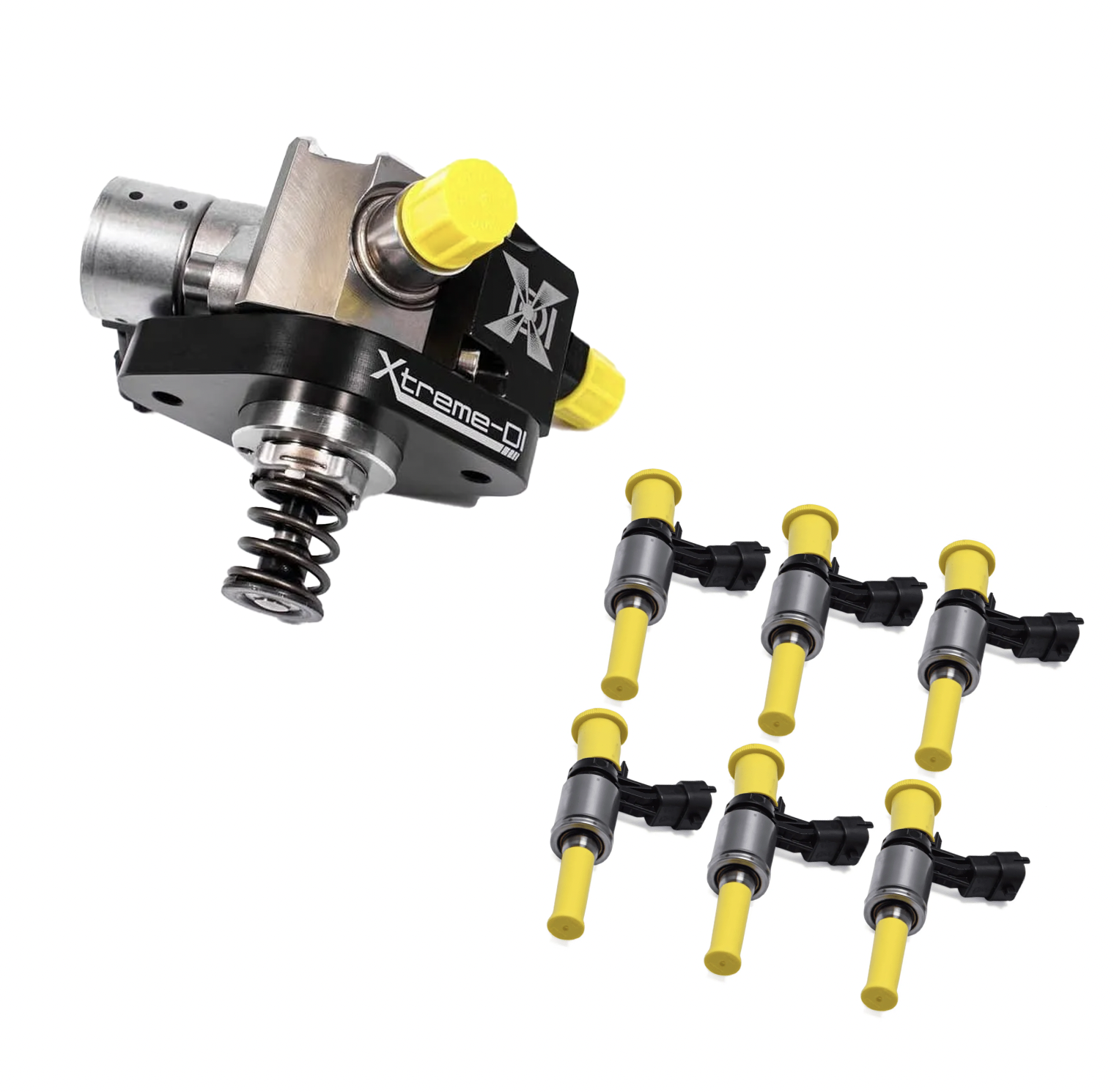

XDI – Ford Taurus SHO 3.5L EcoBoost HPFP / Injectors

Maximum Rail Pressure
OEM = 150bar / 2150psi
XDI-35 = 180bar / 2600psi
XDI-EVO = 250bar / 3500psi
XDI-60 = 260bar / 3600psi

Geometric Volume
OEM 1.12cc / rev
XDI-35 / EVO = 1.52cc/rev = +36% capacity
XDI-60 = 1.83cc/rev = +63% capacity

Fuel Compatibility: all known fuels, all Ethanol blends
Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI
Accessories: electric pigtail
Maximum Flow Rate: tbc
Housing material: stainless steel, hard coated Aluminum
Tuning Support:  Standalone, SCT
Dry Weight: 1112 g

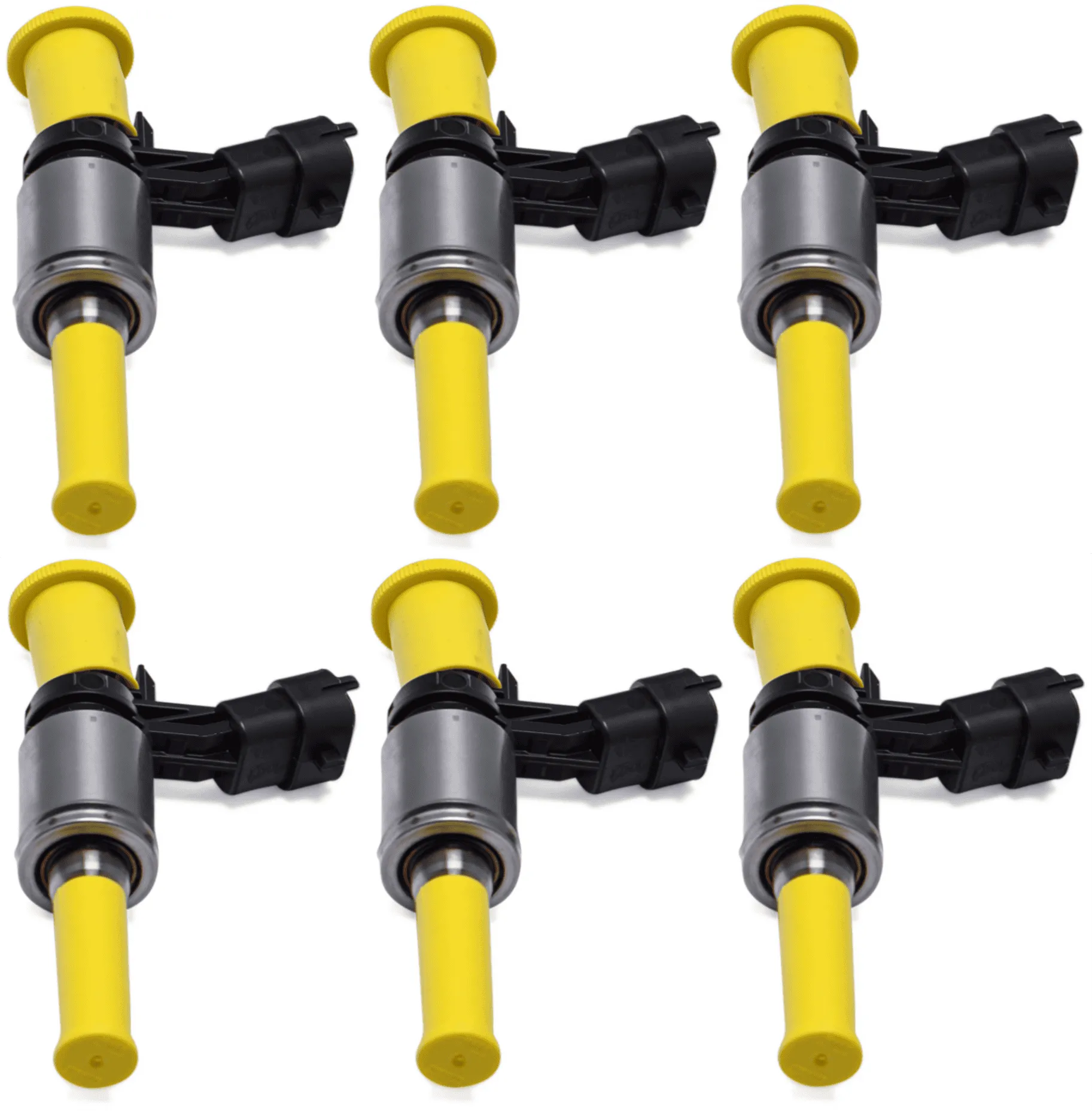

Our XDI-manufactured and rigorously tested Direct Injection (DI) Injectors are specifically designed for the 2010-2019 Gen 1 3.5L EcoBoost series engines, delivering the precise fuel flow required for high-horsepower applications without auxiliary fuel systems. Each injector undergoes comprehensive testing at 100 bar and 200 bar on OEM-grade equipment at our XDI facility. We flow-match every set to within ±1% at both pressure levels, ensuring consistent accuracy and reliability.

• 2000cc, 50% Greater Flow than stock injectors
• OEM Spray Pattern for effective atomization
• OEM Idle Characteristics for smooth and stable idle
• Full Control and Diagnostics: No additional methanol injection, port fuel injection (PFI), extra ECUs, or wiring required

These injectors deliver pure power through optimized fueling, allowing for seamless performance in demanding applications.
