XDI – 2015-2023 Mustang EcoBoost +35 Pump

XDI – 2015-2023 Mustang EcoBoost +35 Pump

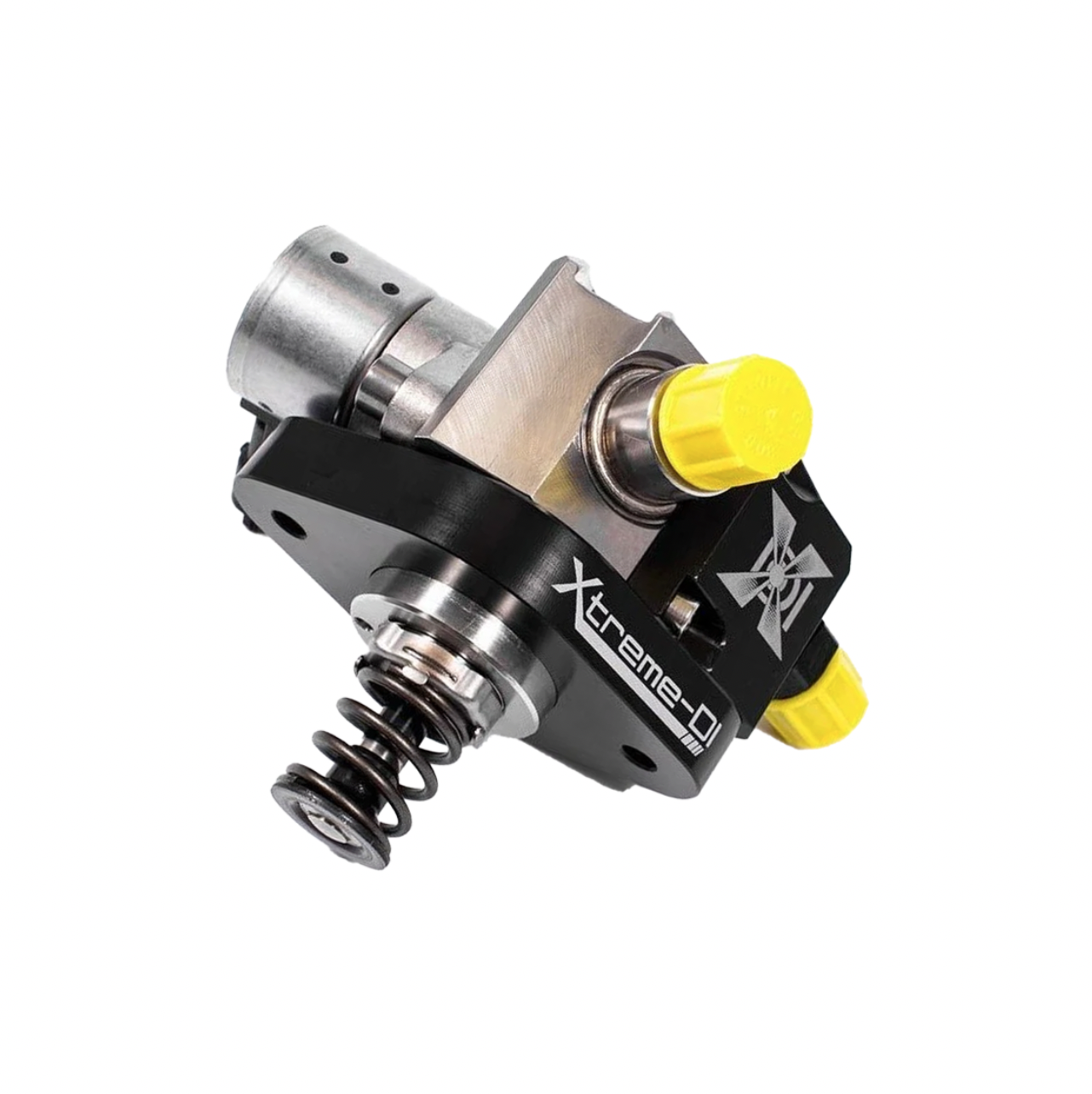

This Patent Pending GDI high pressure pump was developed to replace the Bosch OEM high pressure pump. It delivers up to even more fuel flow than the +35 when mounted on the same CAM-Lobe.

The kit comes with everything you need: the HPFP, an OEM style inlet hose with OEM fuel pressure sensor, a new HP-Line and an electric pigtail.
Customer-specific fittings and lines on request.

Straight E85 380 hp GDI only !!!

no meth, no PFI, no extra ECUs, no wiring, full control, full OBD Diagnostics.



APPLICATION

Maximum Rail Pressure
180bar / 2600psi (XDI-HPFP35)
200bar / 2900psi (XDI-2000cc Injectors) (Minimum Pulse Width .8m/s)
250bar / 3600psi (EVO)
260bar / 3800psi (XDI-HPFP60)

Fuel Compatibility: all known fuels, all Ethanol blends

Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI, tuning changes needed
Accessories: electric pigtail



MECHANICAL DATA

Geometric Volume

OEM: 1.12cc/rev

HPFP35/EVO: 1.52cc / rev
(+36% capacity over OEM)

HPFP60: 1.82cc / rev
(+63% capacity over OEM)

Combinations and Power Potential:
On a 2.3 Mustang with stock turbo, just an XDI-HPFP35 is needed to run full E85. No LPFP, no bigger injectors, no port injection.
Up to 450lbft possible but not recommended with stock motor. 383whp (auto) / 400whp (manual), turbo limited.
With bigger turbo and E85 you need the XDI-HPFP35 and our XDI+50% DI-Injectors for >420whp, up to 500-550whp.
Above 500-550whp on E85 you need the XDI-HPFP60 and our XDI+50% DI-Injectors.
These numbers are not guaranteed, they are highly based on environment and dyno type and calibration.

Housing material: stainless steel, hard coated Aluminum

Tuning Support:  Standalone, SCT, COBB

Dry Weight: 1112 g

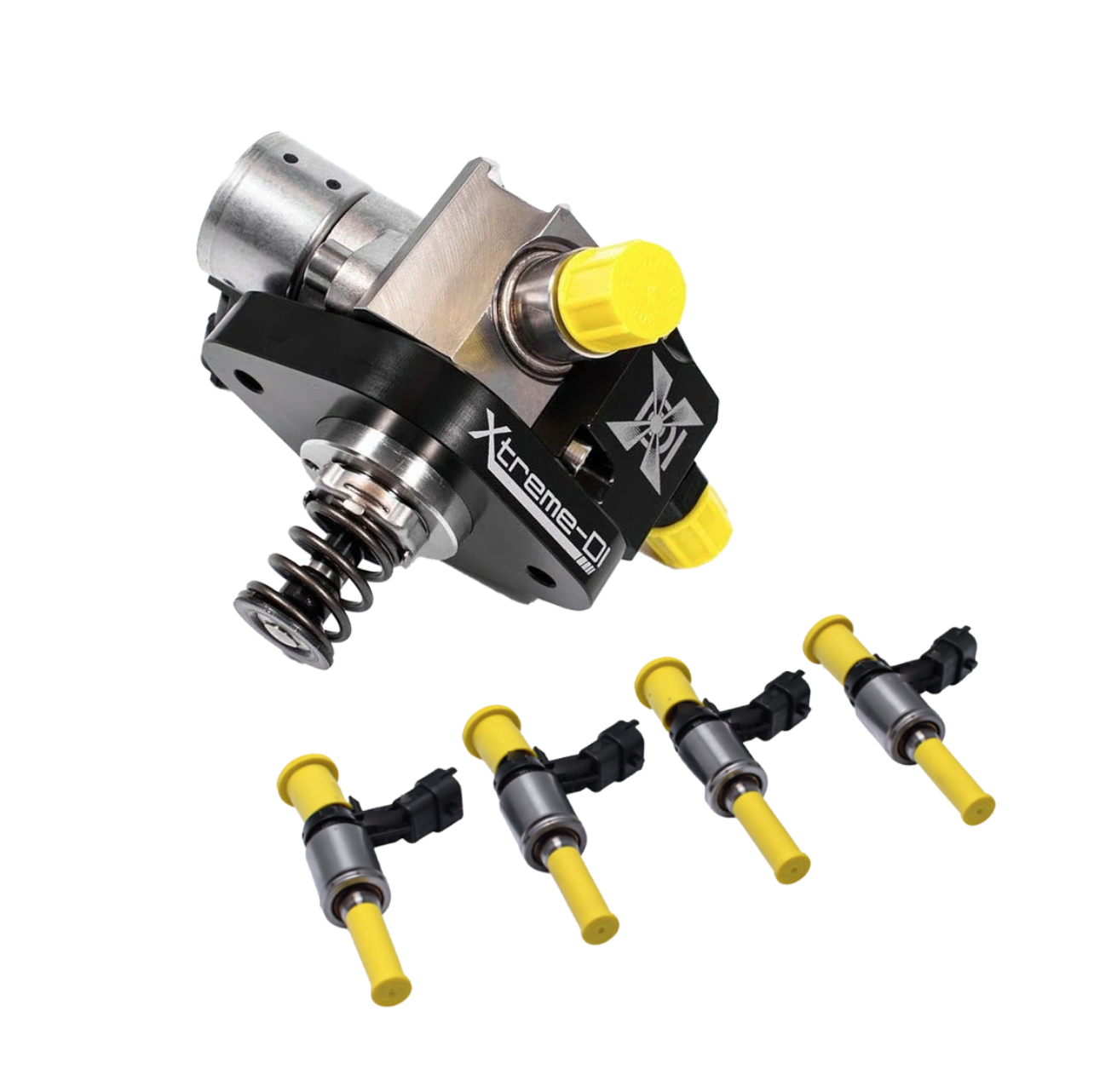

Injectors

• 2000cc/min at 100bar

•3000cc/min at 220bar

• 684bhp on E30

• 527whp on E85

• Rock solid, perfectly linear.

• 100% drop in fitment

• OEM spray pattern

• stock like cold start and idle

• just one ECU value change

Custom Tuning is required.

Every XDI injector set gets tested and matched at three different operating points and comes with full documentation:
1) 0.8ms/20bar for idle stability
2) 10ms/100bar for static flow reference
3) 6ms/200bar for wot performance and stability
