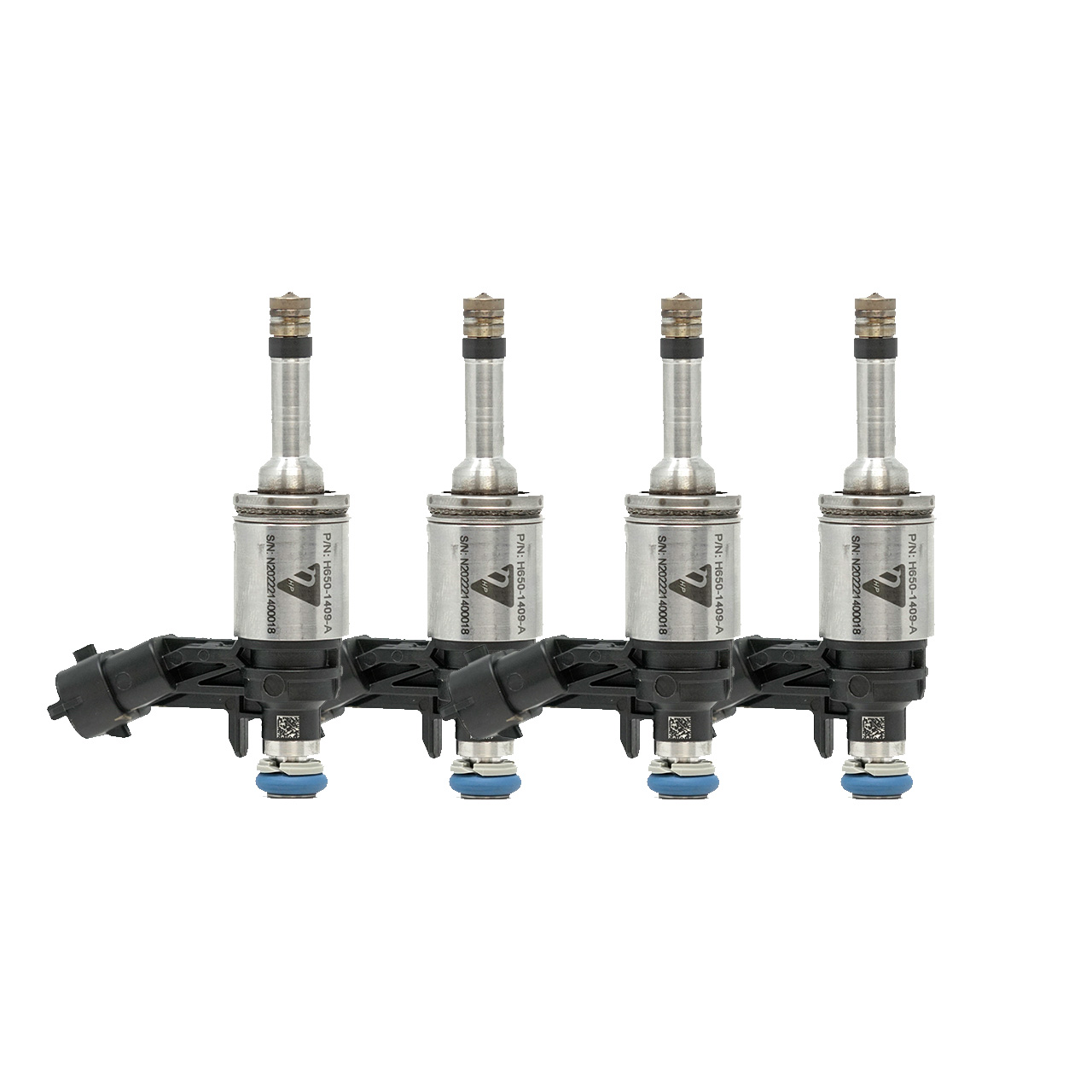

Introducing Nostrum’s High Flow Injectors for the 2.3 Ecoboost Ford Ranger!
- Direct Replacement
- OEM equivalent spray pattern
- Limited Lifetime Warranty
- Detailed Installation guide provided
- Tuning guide available
- 40% Flow rate increase
- 250 Bar capable
- Ethanol Compatible
Our upgraded injectors have been designed and tested to flow 40% more fuel than the Ranger’s stock 2.3 EcoBoost injectors. That additional fuel flow allows for a significant increase in horsepower, with proper tuning. We estimate that these injectors will flow enough fuel to make over 700 wheel horsepower without the need for secondary port injection!
To take full advantage of your new NHP injectors, we recommend pairing them with our Standard Bore Plus HPFP, which flows 36% more fuel than the stock pump. This is perfect for anyone who is looking to get the most out of their stock turbo, or run pump E85! That additional fuel flow allows for significant torque increases earlier in the rev range, and provide the injectors with all the fuel they need to make more peak horsepower, when properly tuned.
Inside the box, you will find what you need to get your new fuel system installed quickly, including all the hardware and accessories that you need, as well as extensively detailed installation instructions that outline special tools and Ford Motorcraft replacement parts you might need! Being that everything is installed like a factory part, there’s no need to worry about secondary injection controllers, filling meth tanks, clogged meth injectors, or any of the other complex solutions people use to squeeze more power out of these vehicles. Additionally, these injectors are operating with all the OEM ECU’s engine management system diagnostics and safety functions – resulting in a much happier and responsive system!
When you are ready to tune, we have suite specific tuning guides (HP Tuners, SCT) available for your dealer or tuner. These tuning guides are developed by our in-house calibration team on-dyno and on-road! We worked extensively with SW companies like HP Tuners to validate their tables and make sure everything needed is there to run these injectors perfeclty in the Ranger ECU!
Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.
- 2020-2023 Ford Ranger 2.3
Recommended tuners:
Dyno graph sponsorship results:
This stock turbo Ranger put down over 350 whp on Pump E85 with just fuel system upgrades!
*Horsepower and Torque numbers are approximate and can vary significantly depending on numerous factors including what supporting upgrades are done to the vehicle, ambient temperature, elevation, road surface, tire selection & condition, fuel octane and quality, vehicle weight, and more. The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications. Your results may vary.
Frequently ask questions:
Q: Why do your numbers say I will make less horsepower on E85 than 93 octane?
A: Great question! The numbers we list in the product descriptions are similar to the numbers a turbo charger lists for air flow. The numbers are the “fuel system capacity to generate power” regardless of the other engine system limitations (air handling, mechanical limitations, knock propensity). Essentially the numbers are calculated assuming “sufficiently large air flow”, “sufficiently capable mechanical assemblies” and disregarding knock limits. The equation uses actual observed engine volumetric efficiency (when available from sponsorship vehicles) and fuel capacity (including target pressures) to calculate power. Gasoline has more energy per mass volume than E85. So the higher fuel flow capacity will mathematically generate higher power potential for a gasoline than a high ethanol content fuel. The other variables (air flow, spark, rotating assembly strength, charge cooling, mechanical assembly strength) are highly variable from build to build. This is why we state horsepower capacity for the fuel system – representing the potential of the fuel system if you have all the other aspects of your build addressed!
Q: I see a lot of mentions about OEM equivalent spray patterns. What does that mean and why is it important?
While increasing flow rate is critical to making more horsepower, there are other factors to consider when choosing fuel system upgrades. A bigger injector isn’t always a better injector! It can flow a large volume of fuel at WOT, but if the spray pattern is poor, you can expect poor idle quality, poor drivability, increased knock propensity, soot, NVH (noise vibration harshness,) and tuning difficulty. Additionally, the wrong spray pattern can result in liquid fuel impinging in the cylinder walls, causing oil dilution, which increases mechanical wear to internal engine components.
Nostrum has invested significant time and resources into acquiring the equipment and machinery necessary to deliver an OEM level of quality on our injectors. Our spray patternation and arc flash machines (images below) give us an unparalleled look at how an OEM injector is designed and how it operates. Our engineers design and develop injectors to optimally interact with engine air flow inside the combustion chamber to improve fuel evaporation and create a homogenous air-fuel mixture that results in a higher combustion quality. For you, this means that you can expect our injectors to perform at their absolute best regardless of what you are asking from them, from daily driver duty to setting new ¼ mile records.
