- Direct-fit for 2015-2017 Ford Mustang EcoBoost
- Reduces oil temperatures by up to 40 F (23 C)
- Minimal pressure drop

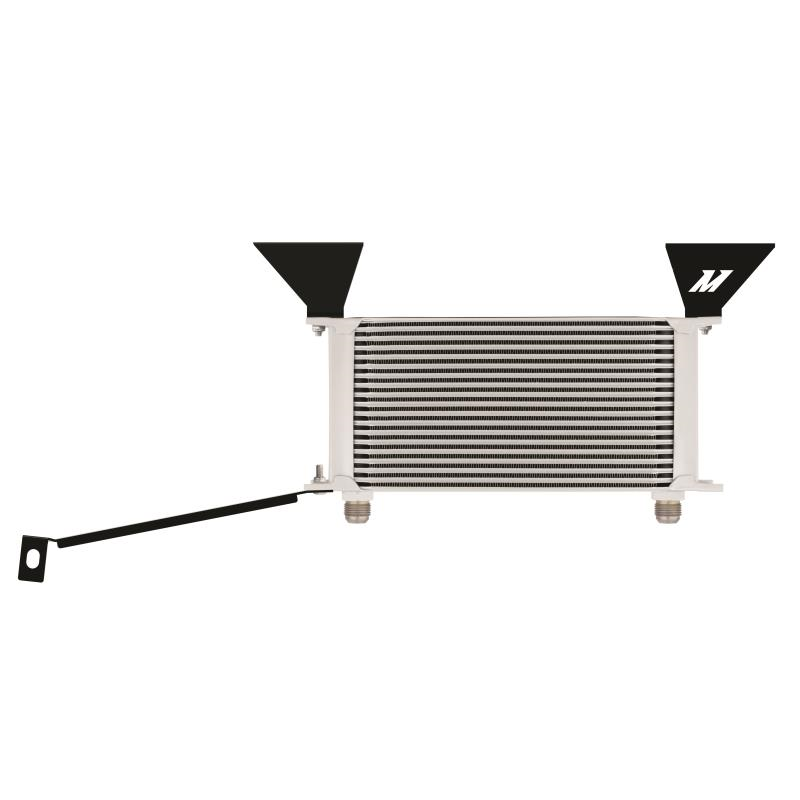

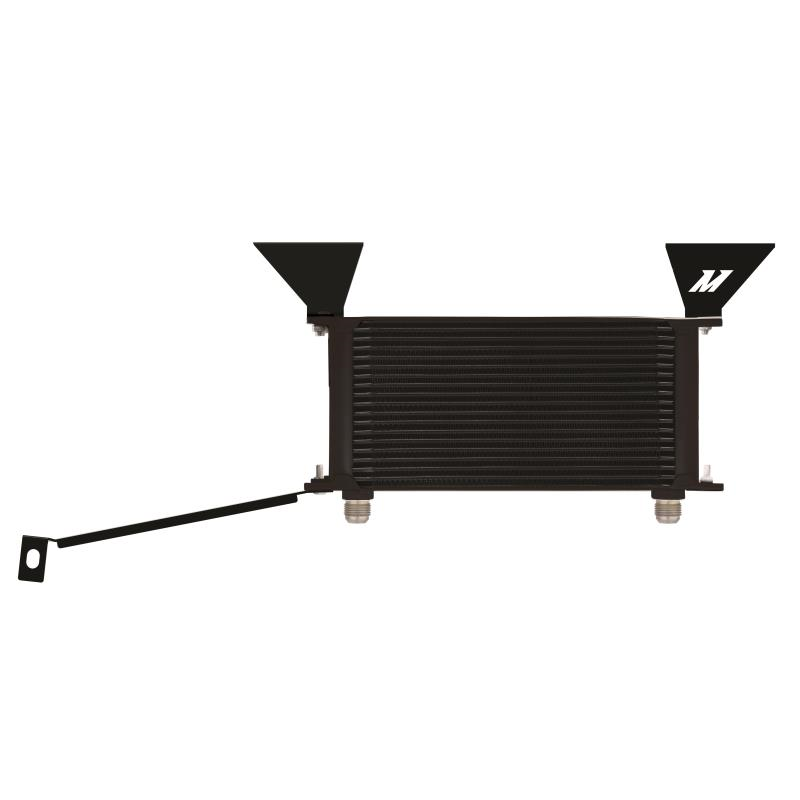

- Application-specific mounting bracket
- Premade braided stainless steel oil lines with durable -AN fittings

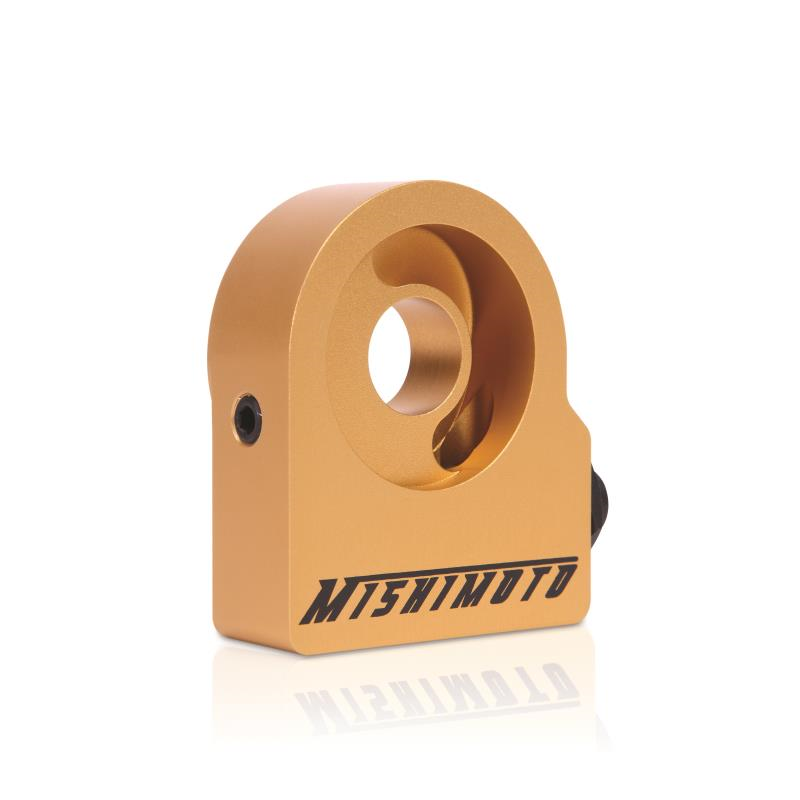

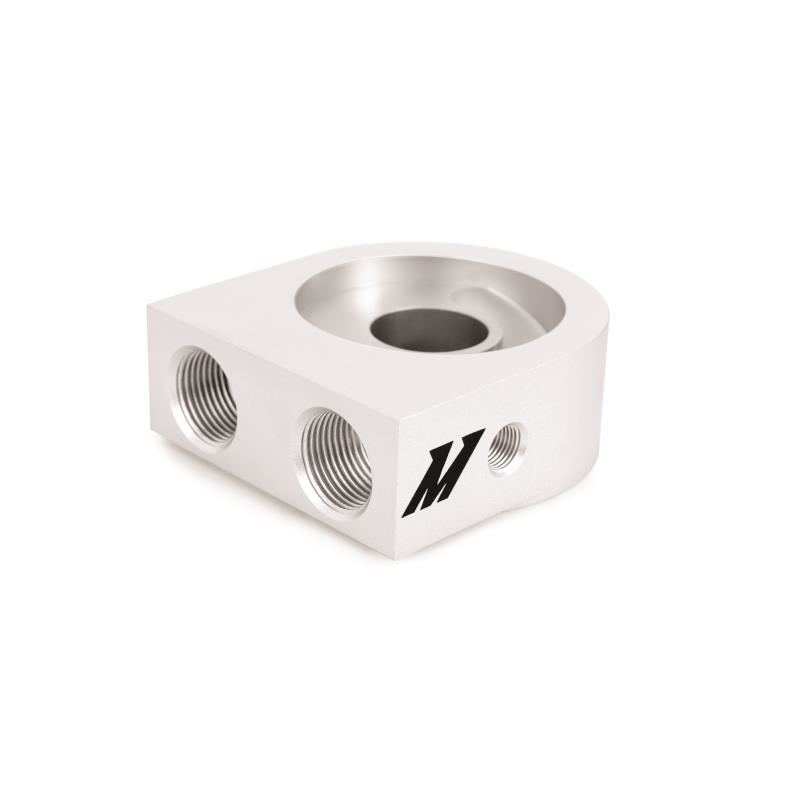

- Includes billet aluminum Oil Sandwich Plate or Thermostatic Oil Sandwich Plate
- 19-row stacked-plate oil cooler for optimal reduction in fluid temperature
- Thermostatic and non-thermostatic options available

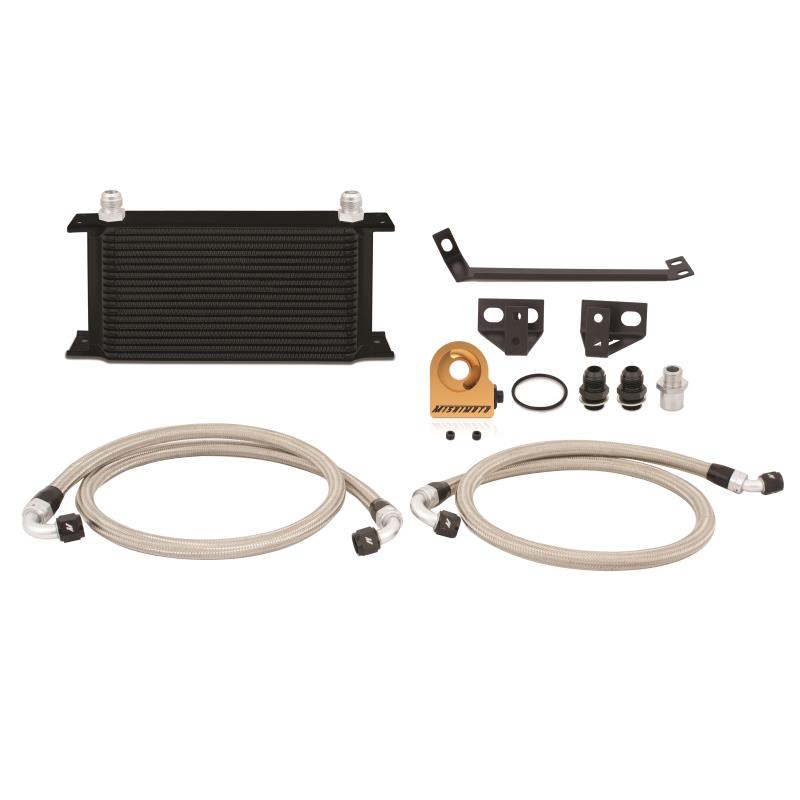

- Cooler available in Sleek Silver and Stealth Black
- Increases oil capacity by 0.75 qt
- Mishimoto Lifetime Warranty
PRODUCT DESCRIPTION
TECH SPECS
ROWS | 19 |
---|---|
CORE LENGTH (IN) | 11 |
CORE HEIGHT (IN) | 5.43 |
CORE THICKNESS (IN) | 1.97 |
ENGINE CODES | 2.3 EcoBoost |
CHASSIS CODES | S-550 |
INSTALLATION NOTES | Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
CAUTION | It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
NOTE | To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb |

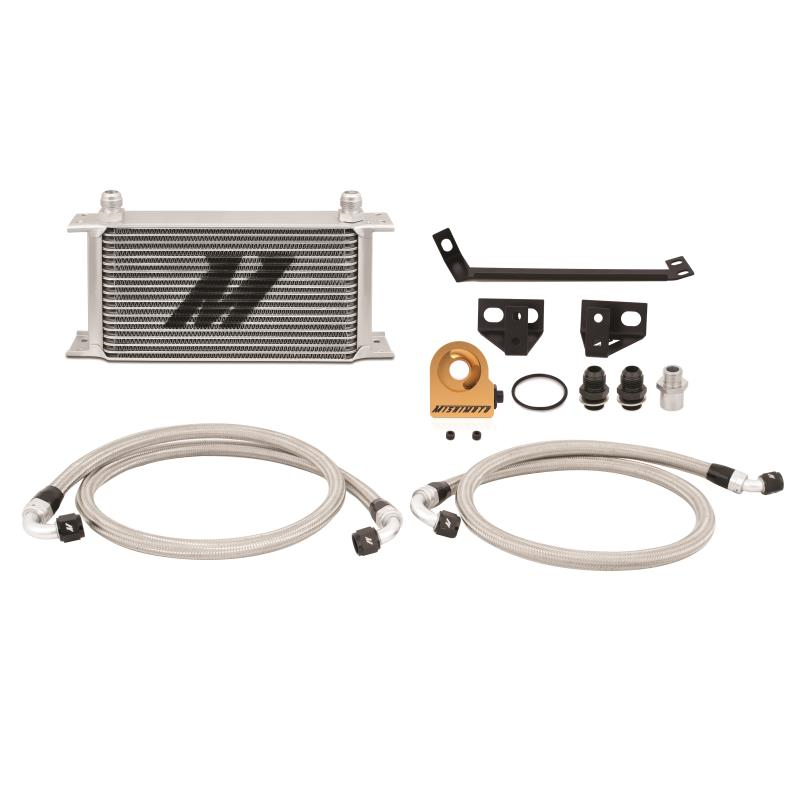

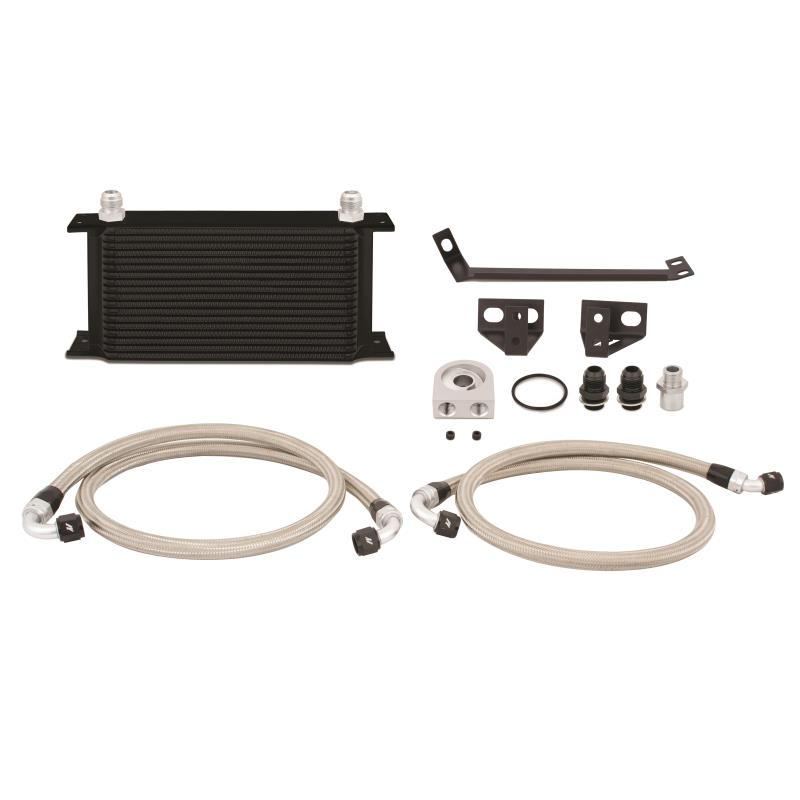

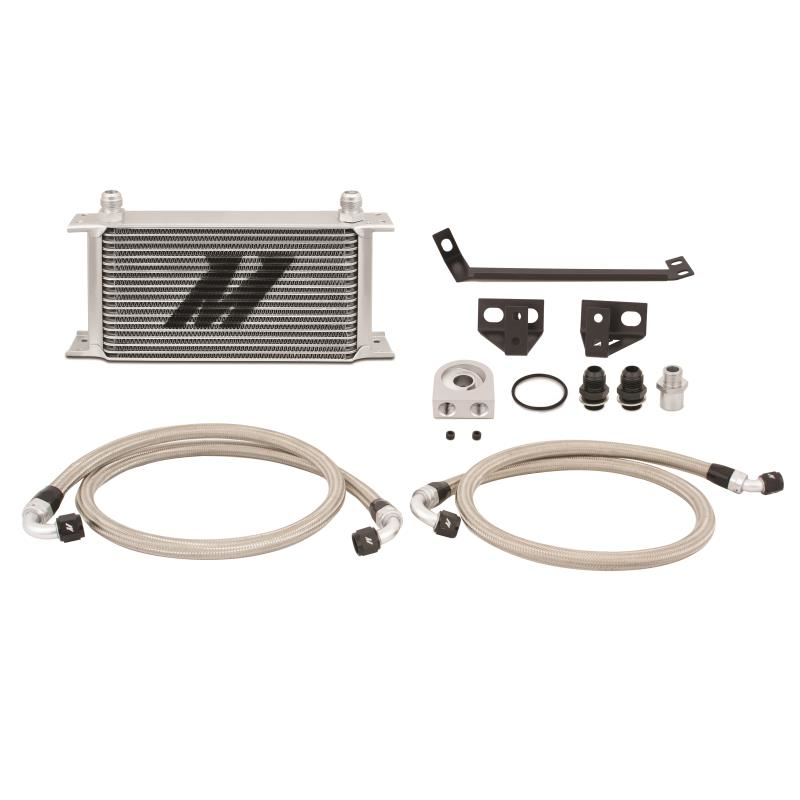

PURCHASE INCLUDES
19-Row Oil Cooler

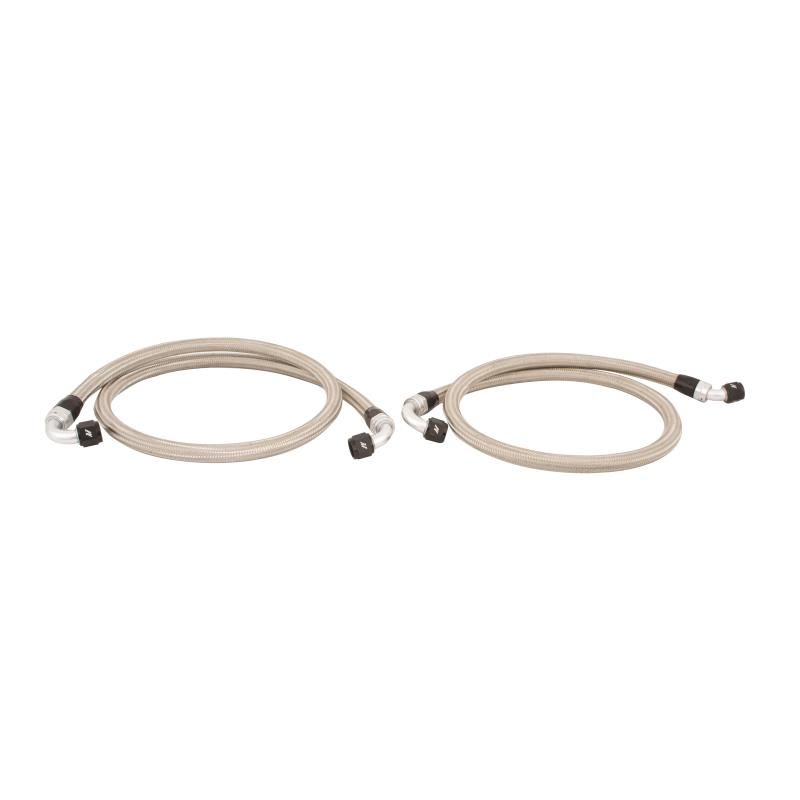

4-ft 3.5-in Stainless Steel Braided Hose with 45 and 120 -10AN Fittings
4-ft 10.5-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings
Oil Sandwich Plate

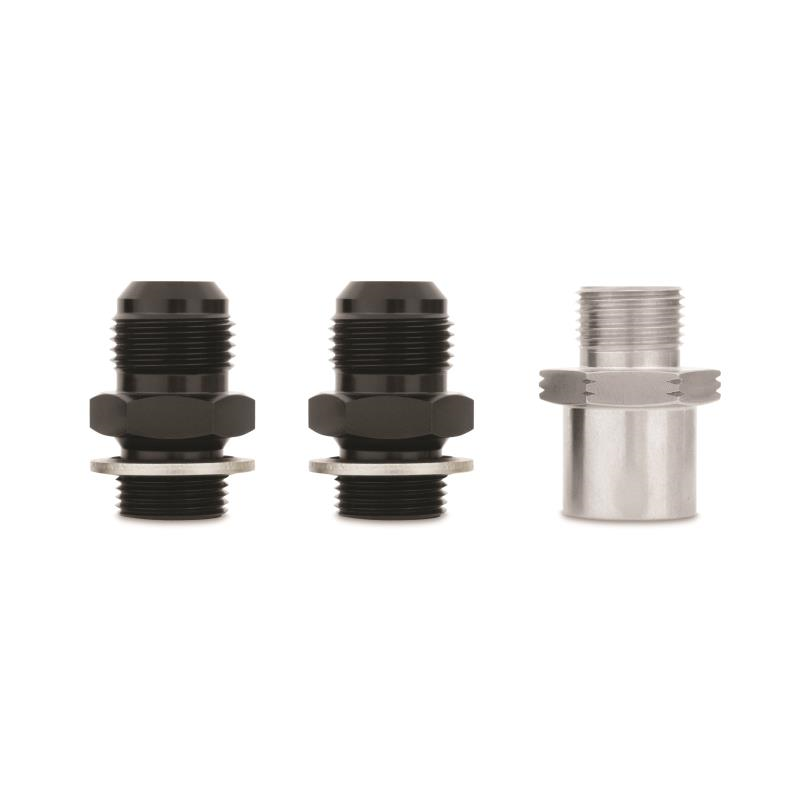

3/4 x 16 Stainless Steel Sandwich Plate Adapter
M20 x -10AN Straight Fittings

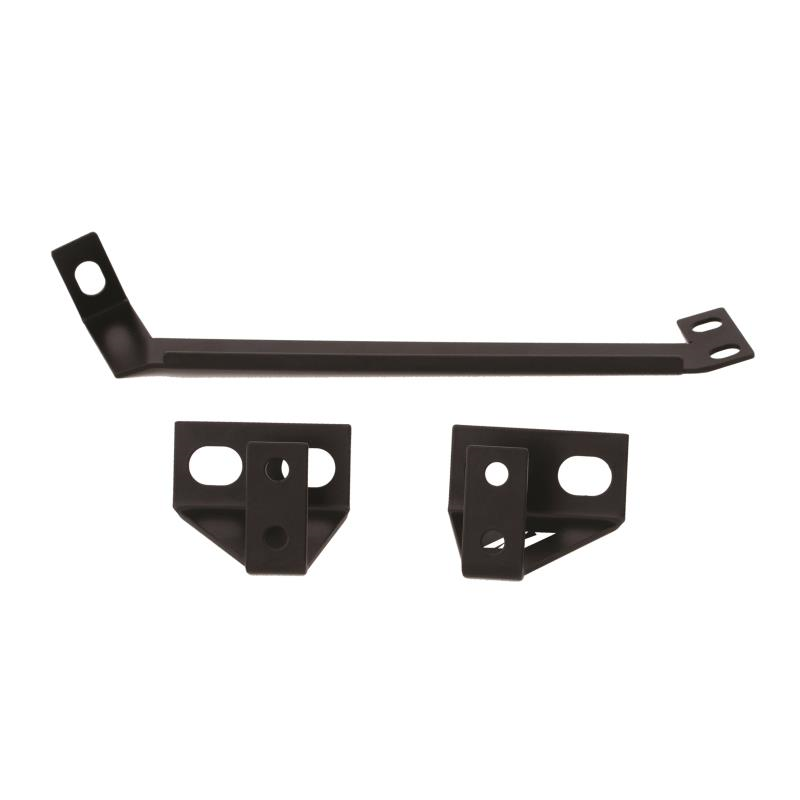

Mounting Hardware Set
Mishimoto Lifetime Warranty
Note:

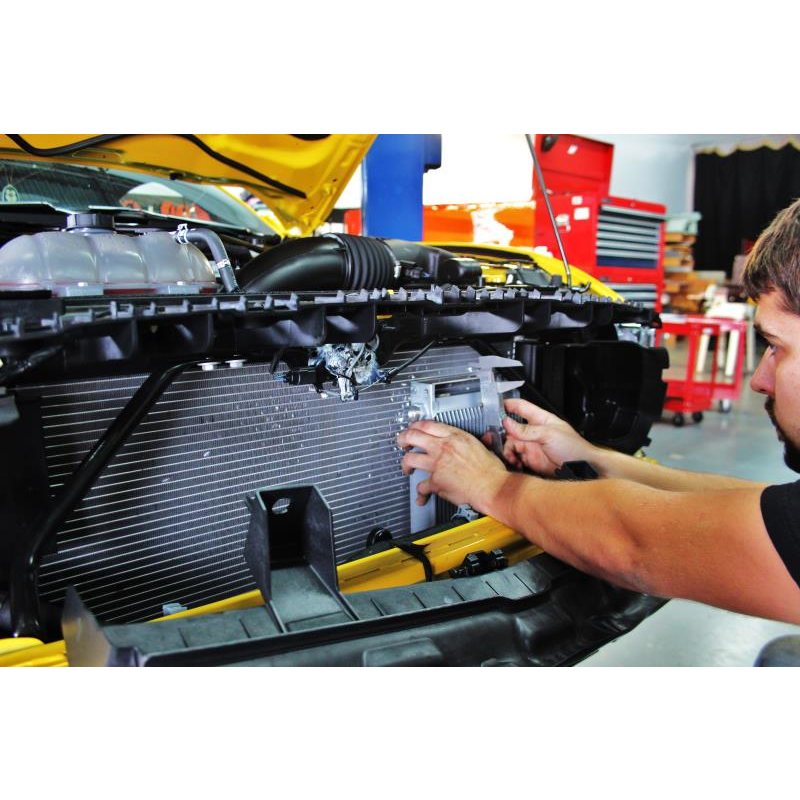

To provide maximum airflow to the front of your vehicle and the EcoBoost oil cooler, Mishimoto suggests disconnecting the connector for the front shutter doors
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb
