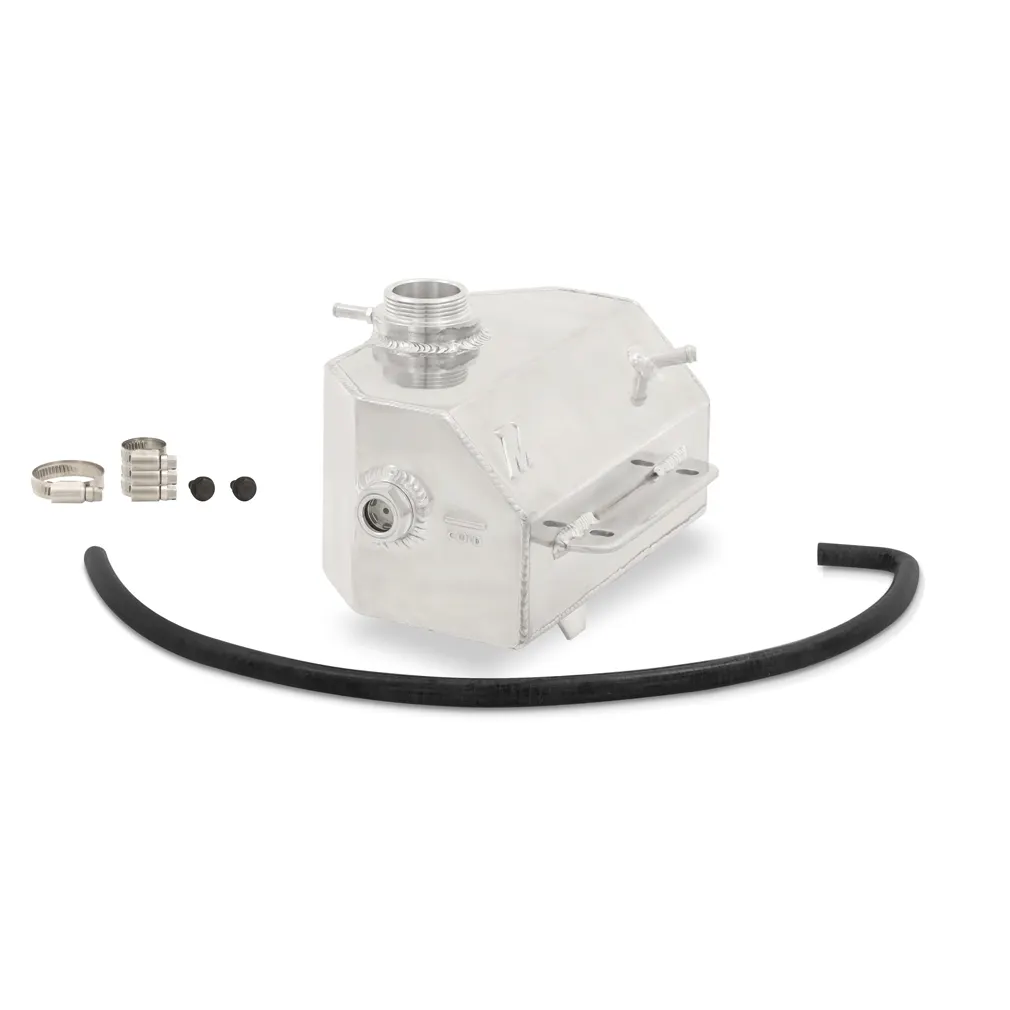

- Direct fit for the 2015-2023 Ford Mustang EcoBoost, V6, and V8
- Internal baffles keep coolant near overflow port during aggressive driving, preventing air entry into coolant system

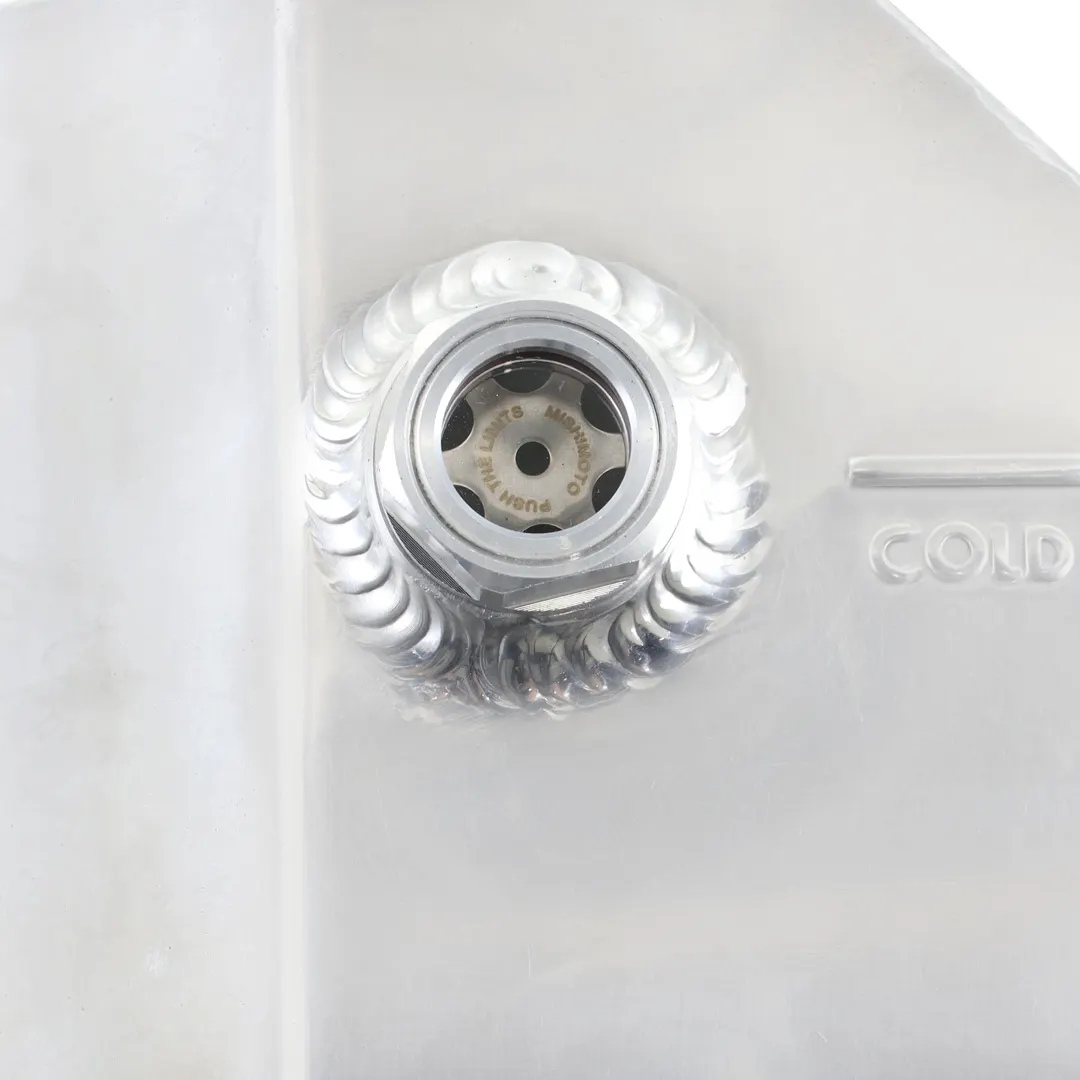

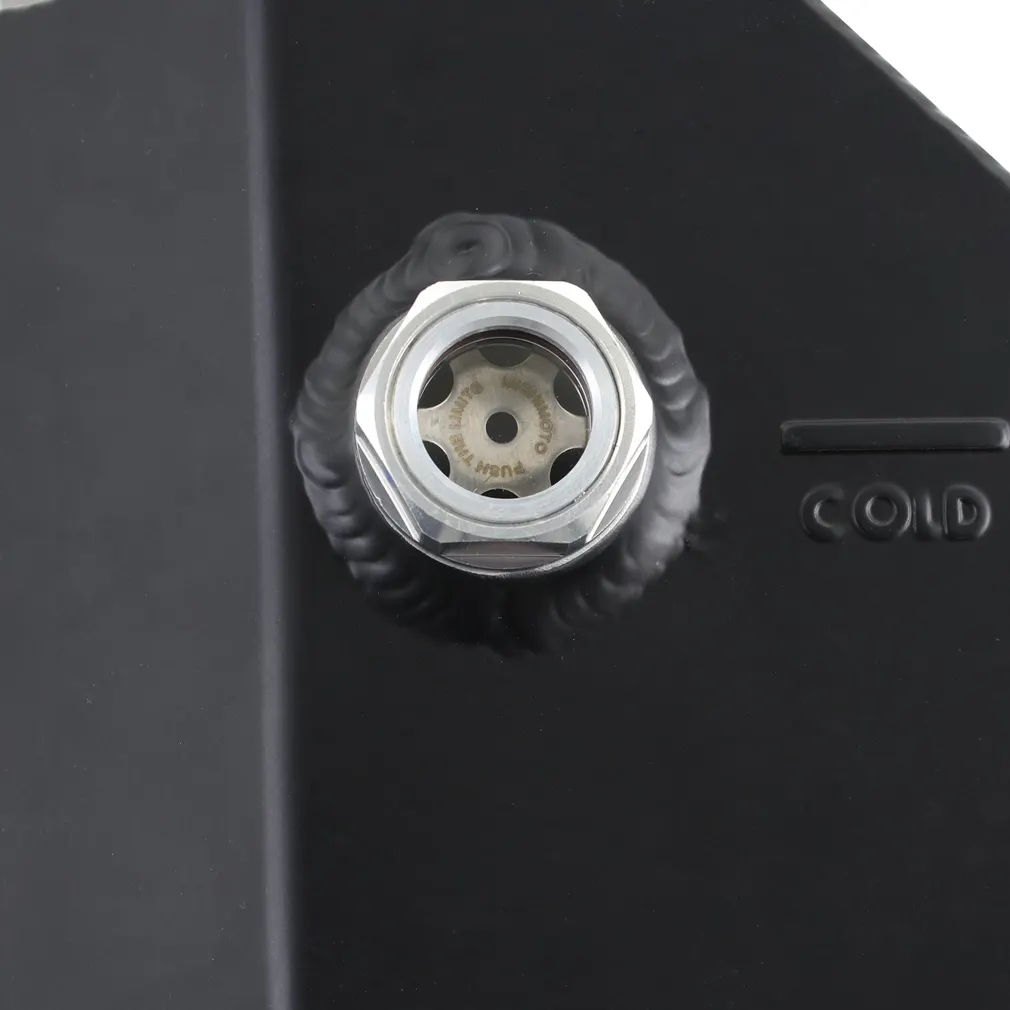

- Sight glass allows for proper hot and cold coolant levels
- Installs in under 1 hour
- Overflow nipple on fill neck allows for installation of additional NHRA-mandated overflow reservoir
- 100-percent aluminum, fully-welded construction for maximum durability during repeated temperature transitions
- Fits with stock overflow tank cap
- Available in polished or black powder coat
- Mishimoto Lifetime Warranty
PRODUCT DESCRIPTION
TECH SPECS
APPLICATIONS | 2015-2023 Mustang EcoBoost 2015-2023 Mustang V6 2015-2023 Mustang V8 |
---|---|
ENGINE CODES | 2.3L EcoBoost, 5.0L Coyote V8, 3.7L Cyclone V6 |
CHASSIS CODES | S550 |
INSTALLATION NOTES |
22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
|
NOTE |
After a few hot and cold cycles, Mishimoto recommends checking the sight glass on the side of the expansion tank to confirm proper coolant level.
|
(1) Overflow Hose
(3) Worm-Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty
Note:
Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
