Kelford Cams – Dual Variable Cams for 2015-2023 Mustang EcoBoost 2.3L

Dual Variable Cams 2015-2023 Mustang EcoBoost 2.3L

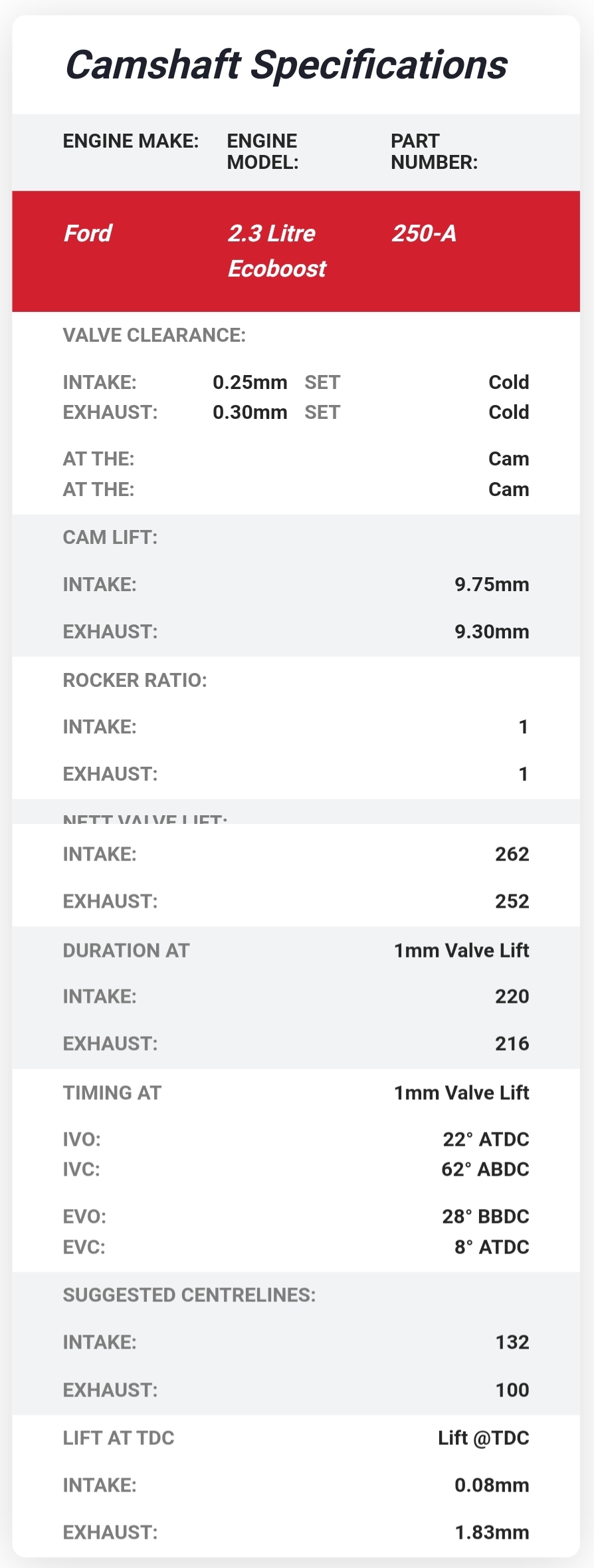

250-A Series

262°/252° | 9.50mm/9.00mm Valve Lift

Ford Ecoboost 2.3L Cams for mild track day or street applications for near stock engines. Suits 48-64mm turbo making up to 650hp. Valve spring upgrade required, Kelford Cams recommends KVS250X-T valve spring and retainer kit.

Comparable to Piper Cams Ultimate Road.

---

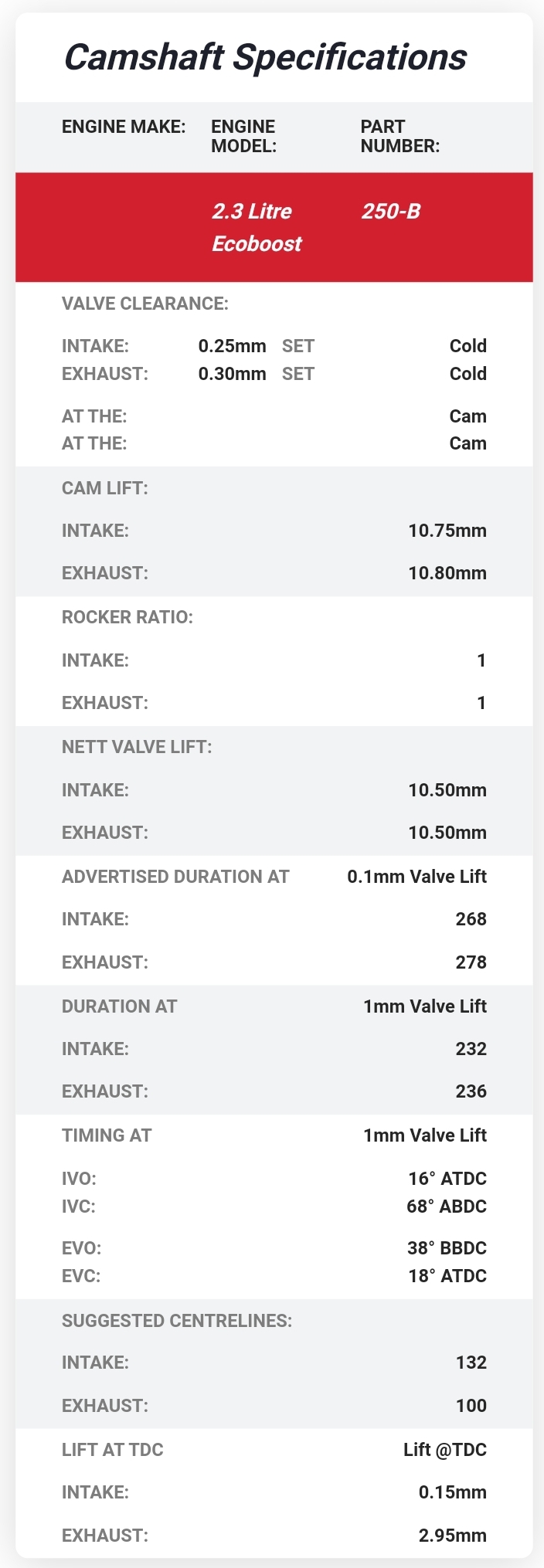

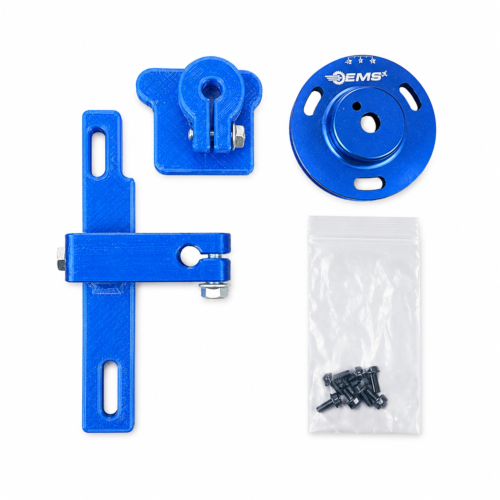

250-B Series *Requires Exhaust VCT Lockout*

268°/278° | 10.50mm/10.50mm Valve Lift

Ford Ecoboost 2.3L Camshafts, ultimate race performance to suit well built engines making 700hp+. Suits 64-72mm turbos with high RPM and big boost in mind. Valve spring upgrade required, Kelford Cams recommends KVS250X-T valve spring and retainer kit.

Comparable to Piper Cams Rally.

---

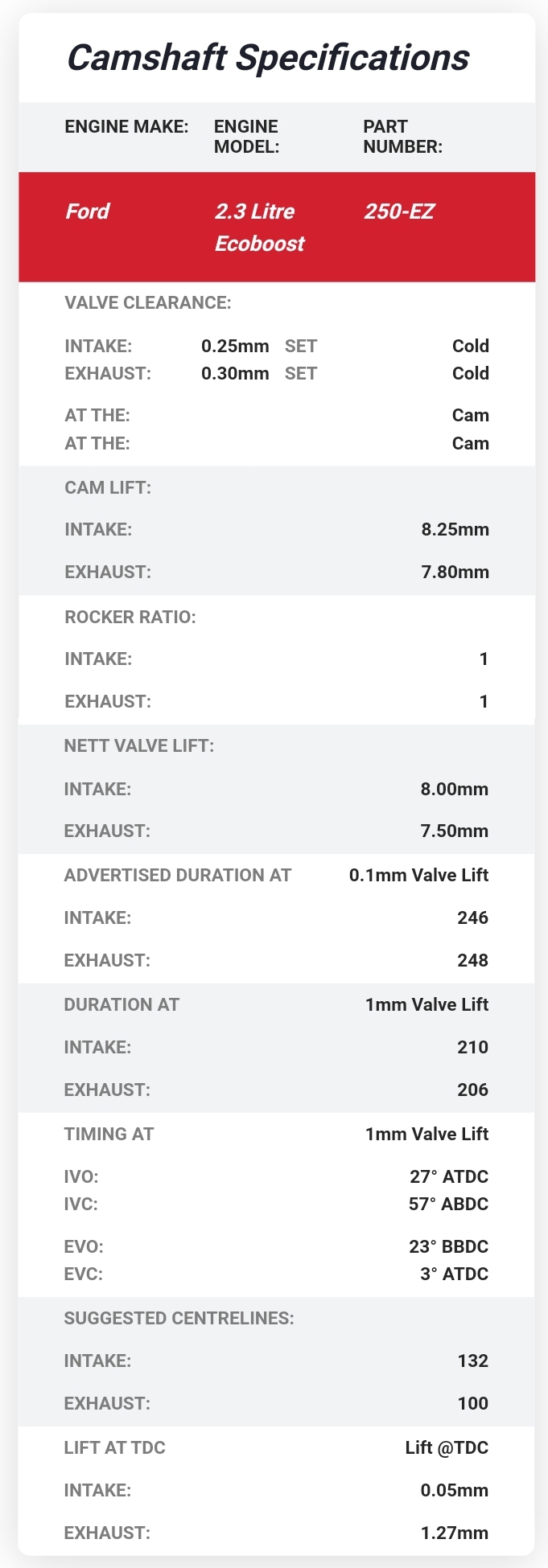

250-EZ Series

246°/248° | 8.25mm/7.80mm Valve Lift

Ford Ecoboost EZ Camshafts. Designed to drop-in on stock valve springs and OEM engine internals. Great with upgraded turbo for engines making 320hp+.

Comparable to Piper Fast Road cams.

---

We recommend having these installed by a trained professional, as valve lash and timing needs to be reset. Please feel free to contact us for a quote on installation at: engineeredmotorsportsolutions@gmail.com
