JMF – Billet Intake Manifold for the 2013-2018 Ford Focus ST/RS

JMF – 2013-2018 Ford Focus ST/RS EcoBoost Billet Intake Manifold

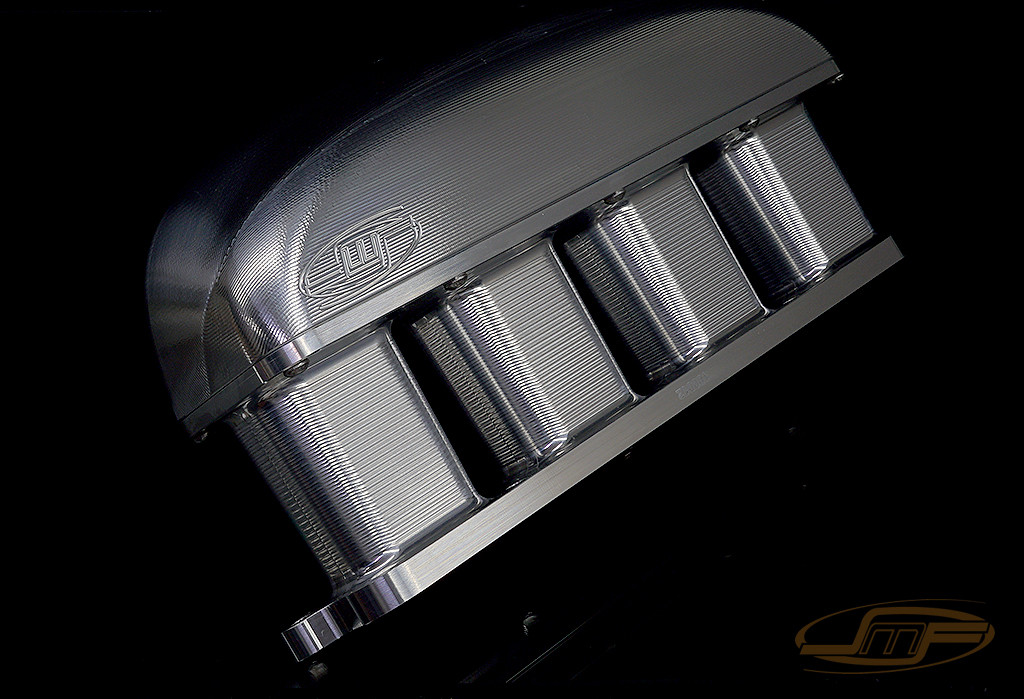

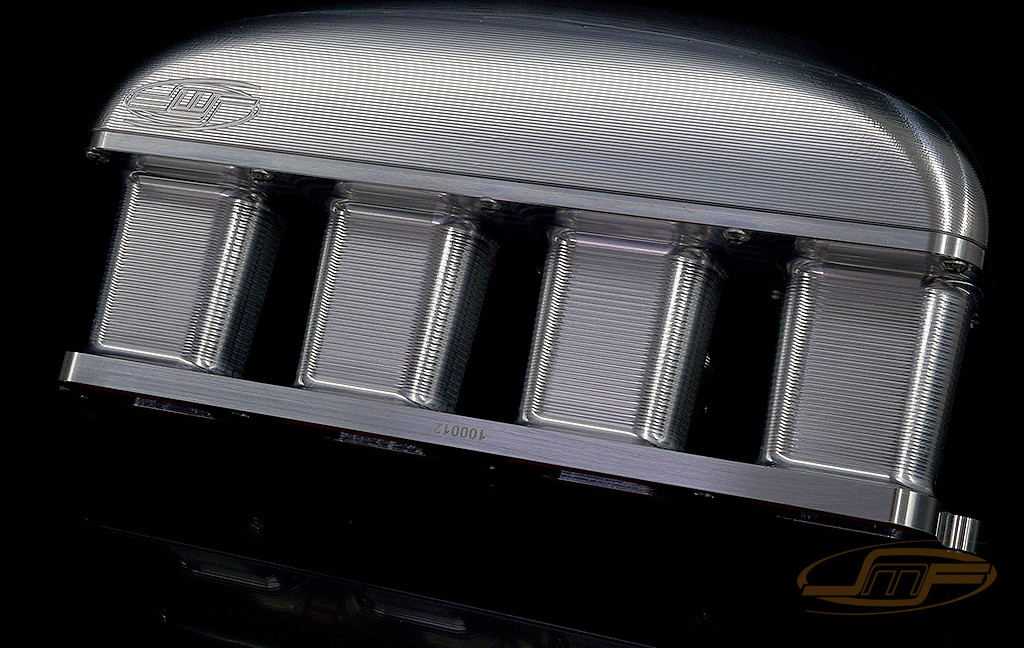

The JMF Billet Intake Manifold is one of the highest-flowing intake manifolds available for the Ford Focus ST/RS — a direct upgrade over the OEM plastic unit that’s engineered to last.

Every component is fully CNC-machined from 6061-T6 aircraft-grade billet aluminum, eliminating the weak points of welded construction and the cracking risks of the factory plastic manifold. Multiple prototype iterations and rigorous flow testing went into the final design, delivering a manifold that balances maximum airflow with real-world reliability.

Features:

• CNC-machined 6061-T6 aircraft-grade aluminum — no welds
• CAD-designed with tapered runners and CNC-machined velocity stacks
• Modular bolt-together design for cost-effective upgrades
• O-ring’d head flange and TB flange — no gasket required
• 5-port vacuum plate with 1/8″ and 1/4″ NPT threads
• Large wall thickness — drill and tap directly into runners for NOS/methanol ports
• Multiple finish options available
• Won’t crack like the OEM plastic manifold
• Limited Lifetime Warranty

What’s Included:

• Billet intake manifold
• Brass vacuum fittings
• Stainless steel mounting hardware
• Silicone O-rings

Applications:

• 2013-2018 FOCUS ST
• 2016-2018 FOCUS RS

Install Tips:

• Use blue Loctite on all fuel rail mounting hardware.  Avoid mounting FP regulator directly to rail end.
• Allow sufficient slack in your fuel lines to prevent stress on the fuel rail mounts.
• Fuel rail designed for a 14mm Bosch style injector with a 48mm o-ring to o-ring height.

Testing:

Additional Information:

Some modifications to your upper intercooler pipes may be needed as this manifold sits at a different angle than stock.
