JMF – 2015-2023 Ford EcoBoost Mustang Billet Intake Manifold

JMF – 2015-2023 Ford EcoBoost Mustang Billet Intake Manifold

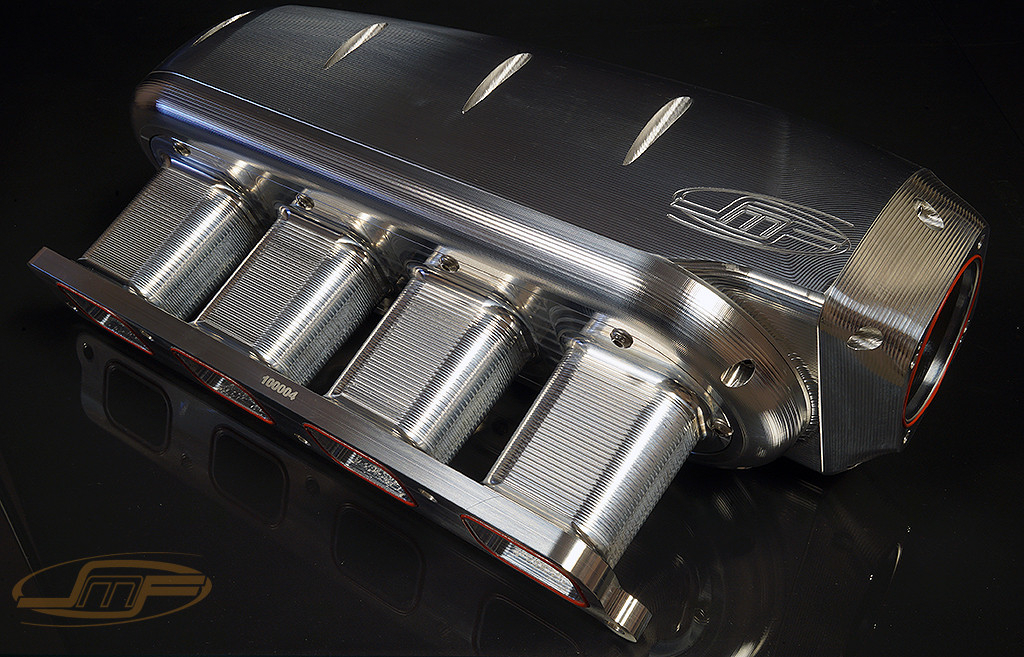

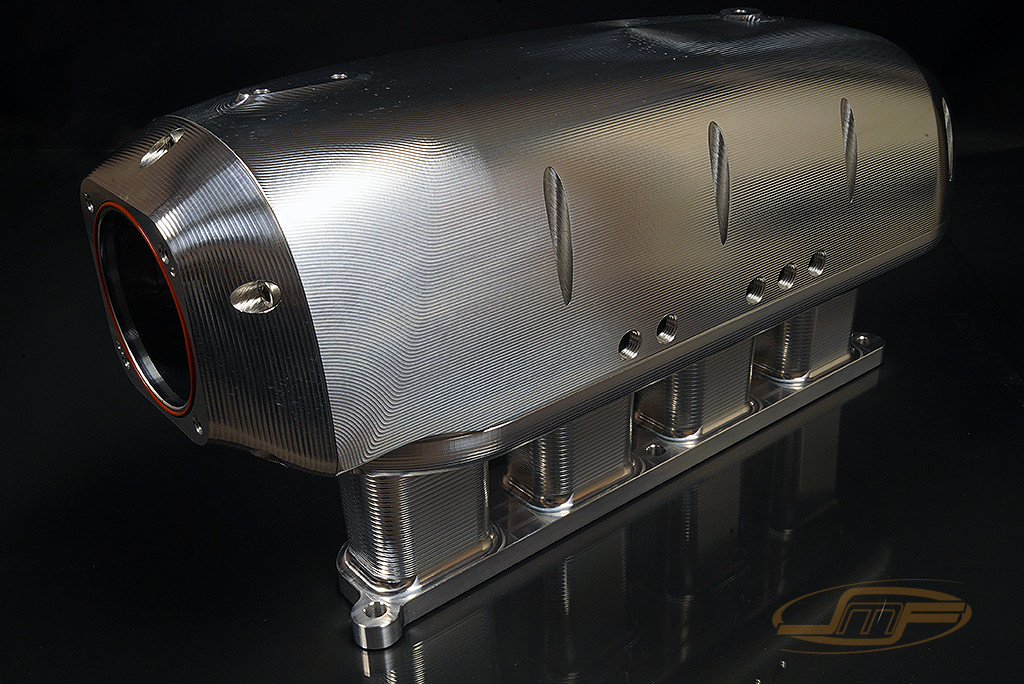

The JMF Billet Intake Manifold is one of the highest-flowing intake manifolds available for the Ford Ecoboost Mustang — built without compromise from start to finish.

Every component is fully CNC-machined from 6061-T6 aircraft-grade billet aluminum, eliminating the inconsistencies of welded construction. The modular bolt-together design is derived directly from JMF’s proven EVO DRAG manifold platform — a design found on some of the fastest cars in the world. Multiple prototype iterations and rigorous plenum flow testing went into the final spec, resulting in a manifold that delivers optimum performance right out of the box.

Features:

• CNC-machined 6061-T6 aircraft-grade aluminum — no welds

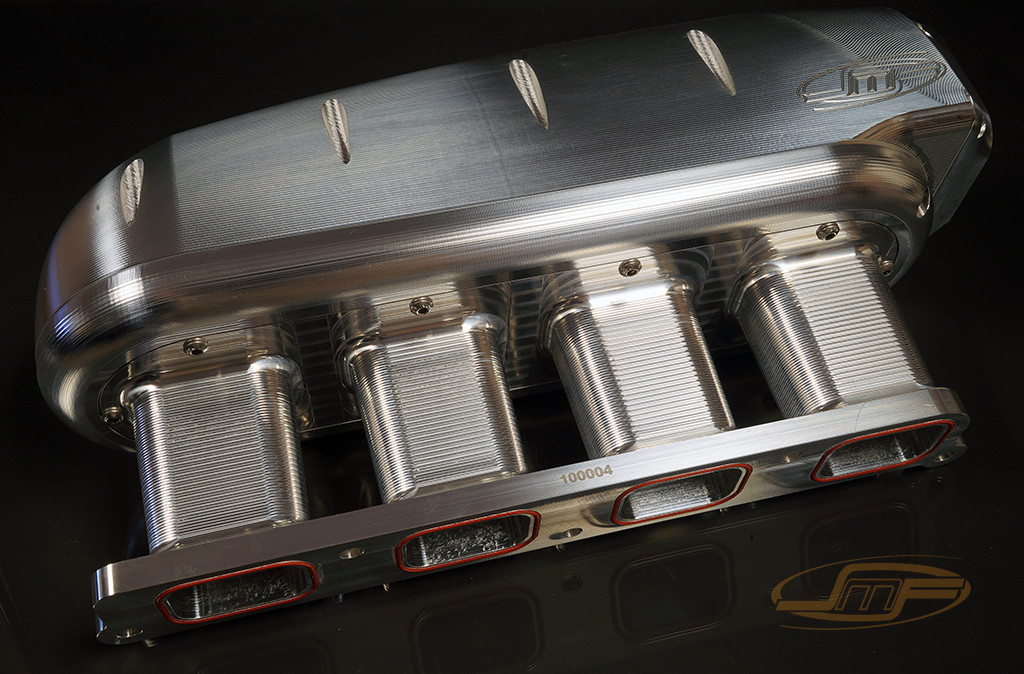

• CAD-designed with tapered runners and CNC-machined velocity stacks
• 5.68L plenum volume
• Modular bolt-together design for cost-effective upgrades

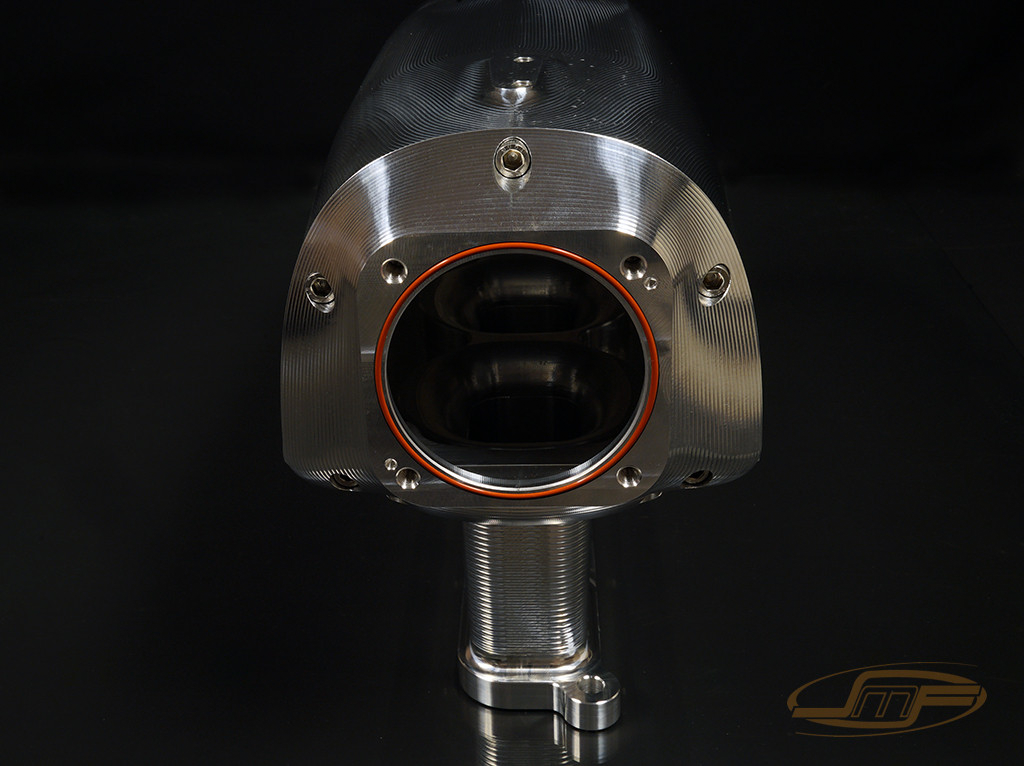

• O-ring’d head flange and TB flange — no gasket required
• 5-port vacuum plate with 1/4″ NPT threads
• Large wall thickness — drill and tap directly into runners for NOS/methanol ports
• Multiple finish options and throttle body flange configurations available
• Limited Lifetime Warranty

What’s Included:

• DRAG version intake manifold
• (1) 3/8″ brass hose barb
• (3) 1/4″ brass hose barb
• (1) 1/2″ brass hose barb
• Stainless steel mounting bolts

Applications:

• 2015+ Ford Ecoboost Mustang

Testing:

Additional Information:

Some modifications to your upper intercooler pipes may be needed as this manifold sits at a different angle than stock.
