AMS – Garrett PowerMax Stage 2 Turbocharger – 2017–2020 Ford F-150 & Raptor 3.5L EcoBoost (Right Side)

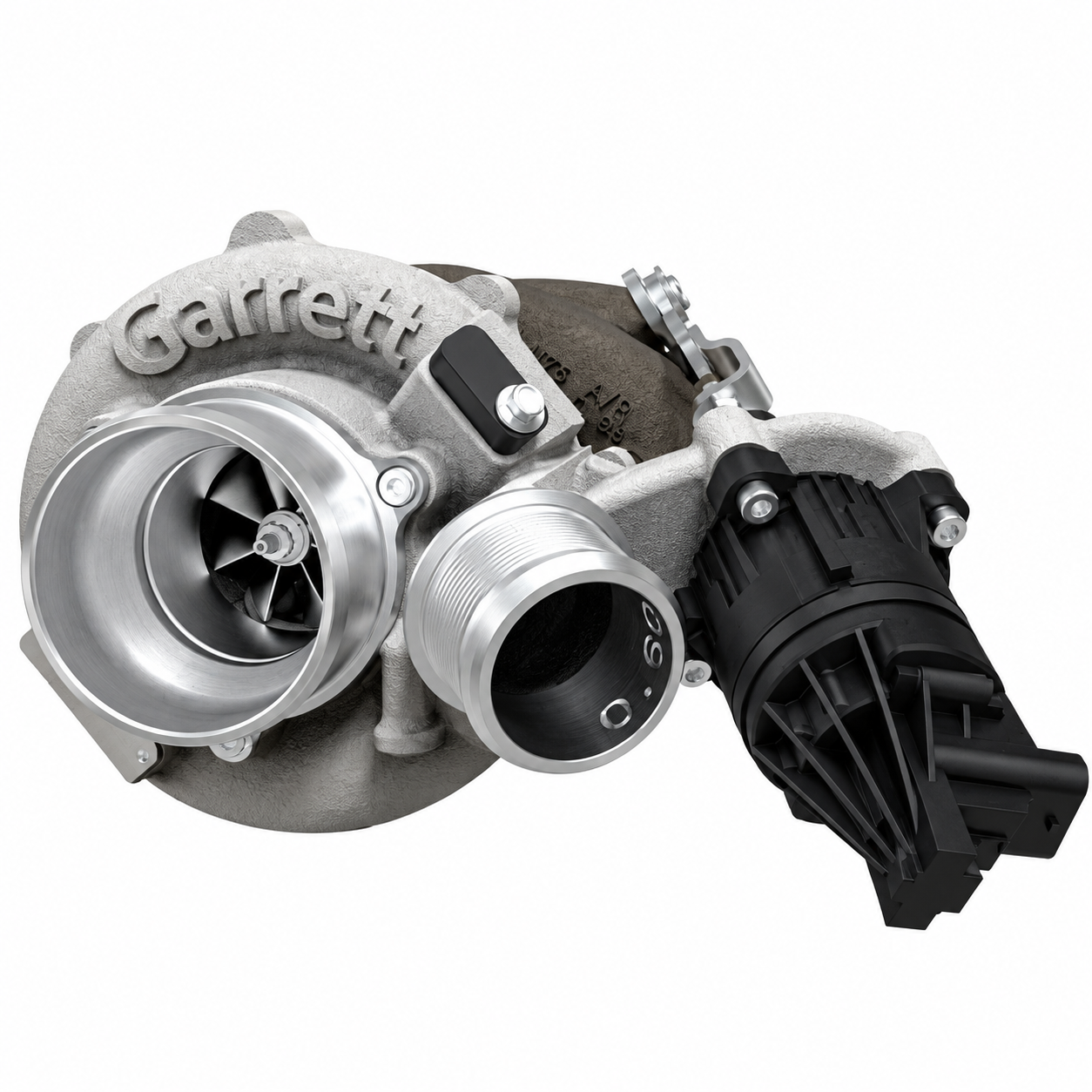

AMS – Garrett PowerMax Stage 2 Turbocharger – Right Side

Upgrade the right-side turbocharger on your 2017–2020 Ford F-150 or Raptor 3.5L EcoBoost with the Garrett PowerMax Stage 2 GT2260S. Designed as a direct-fit upgrade that maintains OEM installation interfaces, this unit features a fully machined 60 mm compressor wheel, a 50 mm Inconel turbine wheel and a calibrated electronic actuator.

Features

• 54% increased compressor flow compared with OEM
• 52% increased turbine flow compared with OEM
• 2.75-inch compressor inlet; stock inlet tube adapter included
• 0.45 A/R turbine housing
• Journal-bearing rotating assembly
• Ported shroud and speed-sensor provision (sensor sold separately)
• Complete calibrated turbocharger assembly

Vehicle Fitment

• 2017–2020 Ford F-150 3.5L EcoBoost
• 2017–2020 Ford F-150 Raptor 3.5L EcoBoost

Important: Sold as one RIGHT-side (reverse rotation) turbo. The left-side turbo is sold separately; both are needed for a complete pair. 700+ BHP is a potential complete-system flywheel capability, not a guaranteed result. Performance depends on vehicle modifications and tuning. Maximum allowable turbo speed is 176,000 RPM. Optional speed sensors: Garrett 781328-0003 or 781328-0004.

Emissions and use: AMS states CARB/EPA compliance testing has not been completed and that this product is not approved for street use. Verify applicable laws and manufacturer restrictions before ordering or installing.
