Name: EMS - Turbo Kit for the 2015–2023 Ford EcoBoost Mustang 2.3L S550
SKU: 35192
Availability: InStock

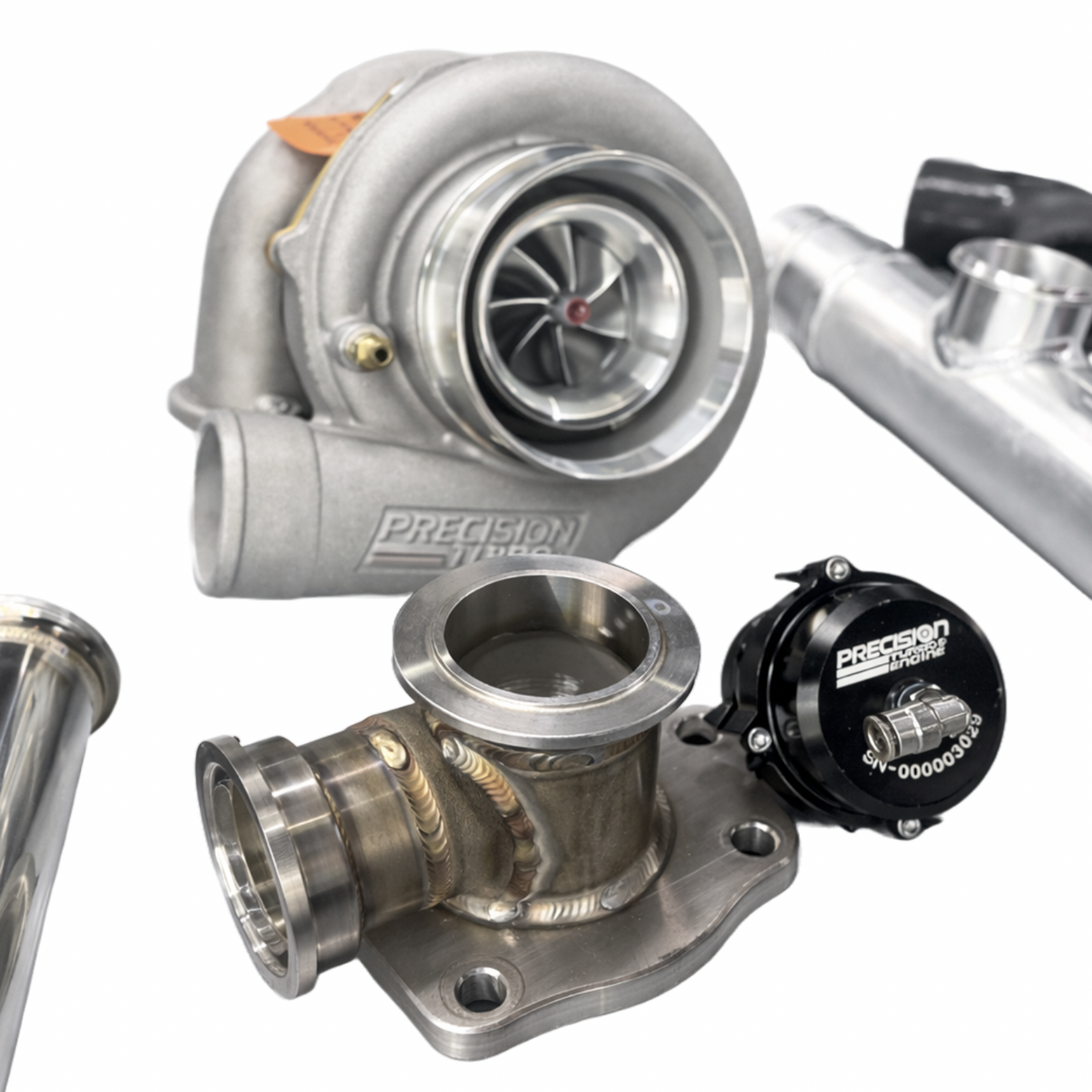

EMS Turbo Kit — Built for the Ford Mustang EcoBoost (2015–2023)

The EMS turbo kit has entered the chat.

Designed in-house for the 2015–2023 Mustang EcoBoost and engineered around Precision Turbo (PTE) components to ensure consistent fitment and performance.

This kit is the result of years working directly with these platforms, testing different setups, and improving on what we’ve seen in the market. Every component and routing decision reflects what actually works on these cars.

The system is designed to support builds ranging from 600 to 1000+ horsepower while maintaining proper fitment, consistency, and control.

Base Complete Kit

The base kit includes all core components required to mount and route the turbo system.

It does not include the turbocharger, wastegate, or blow-off valve.

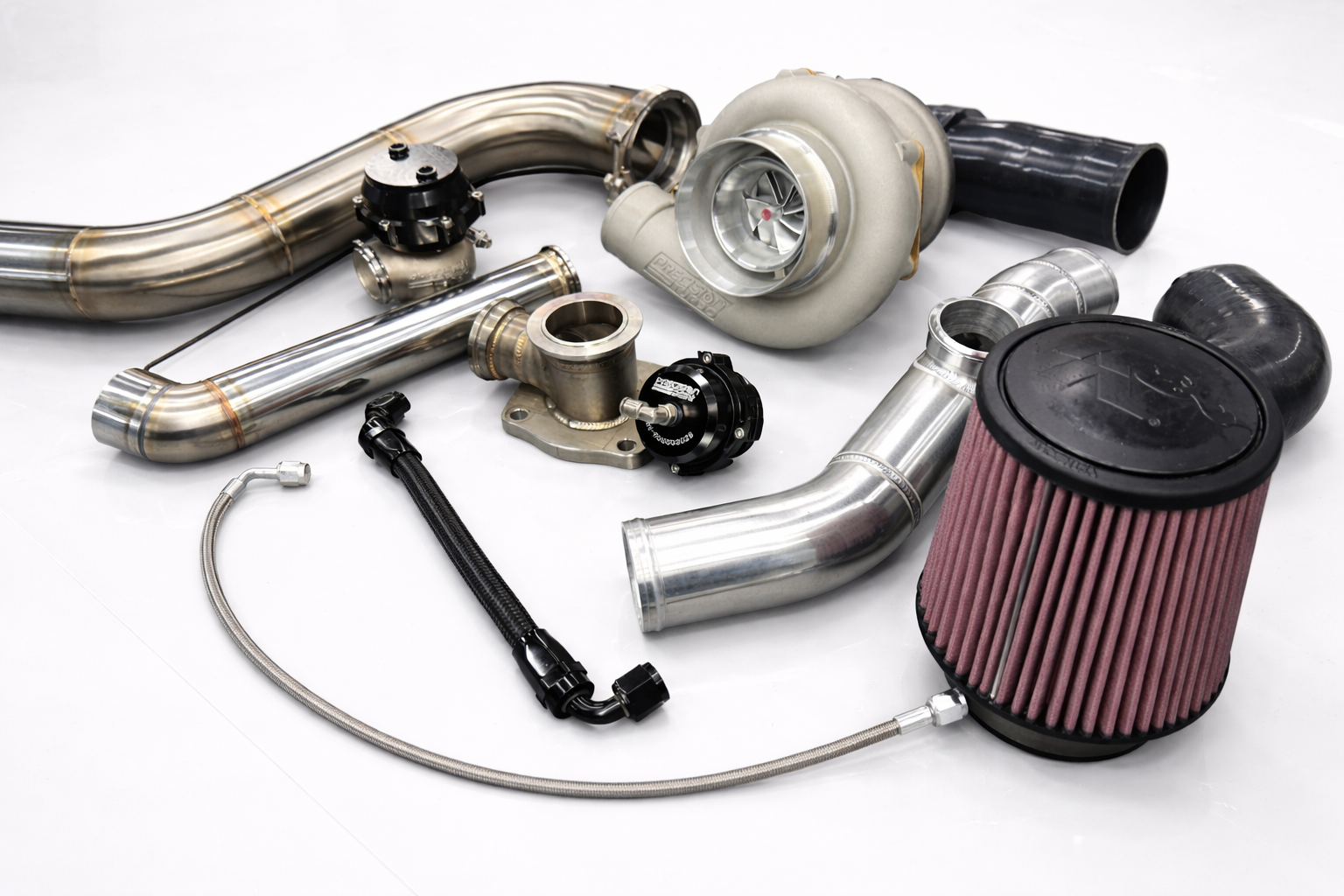

Included components:

Turbo System Hardware

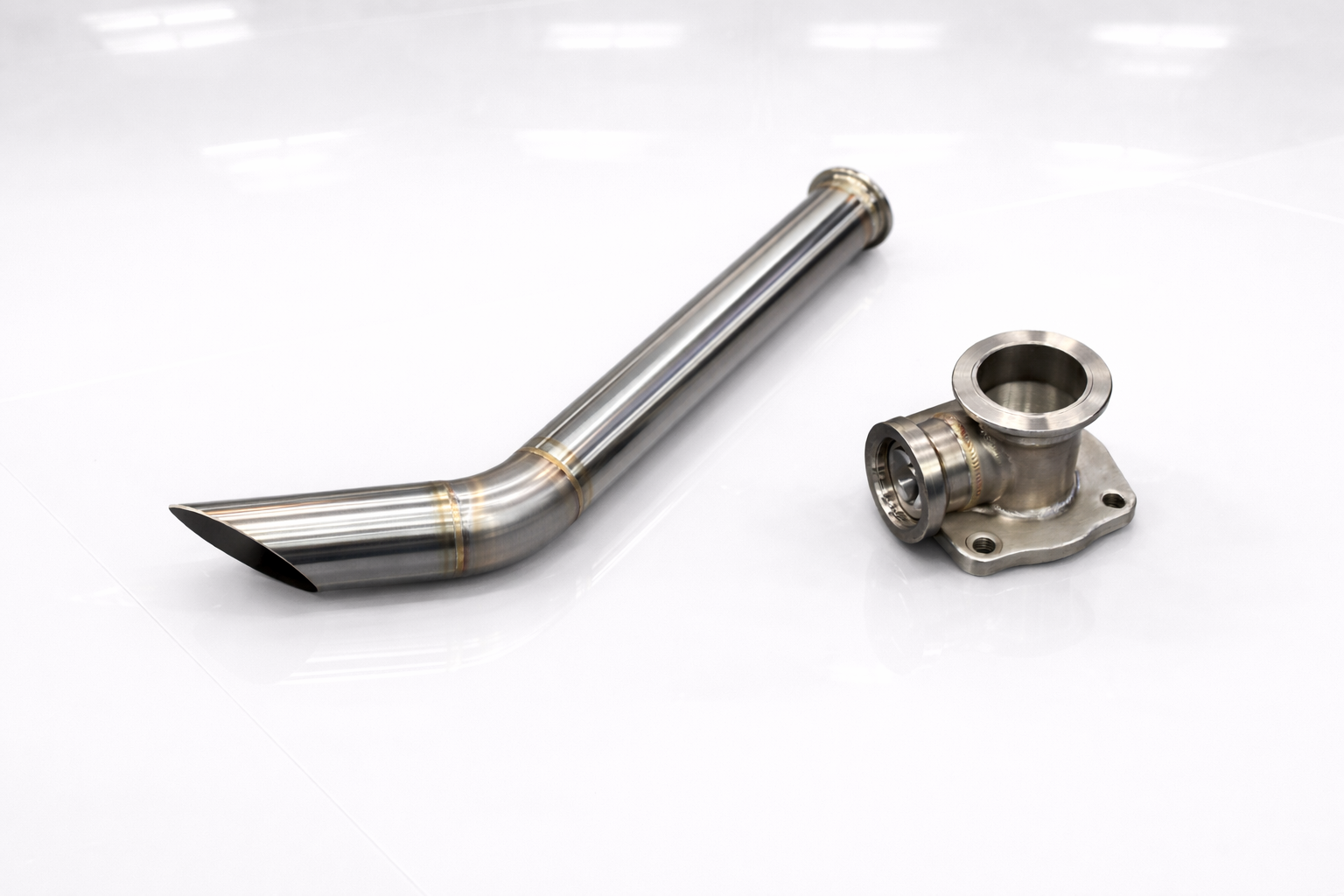

EMS T3 Exhaust manifold

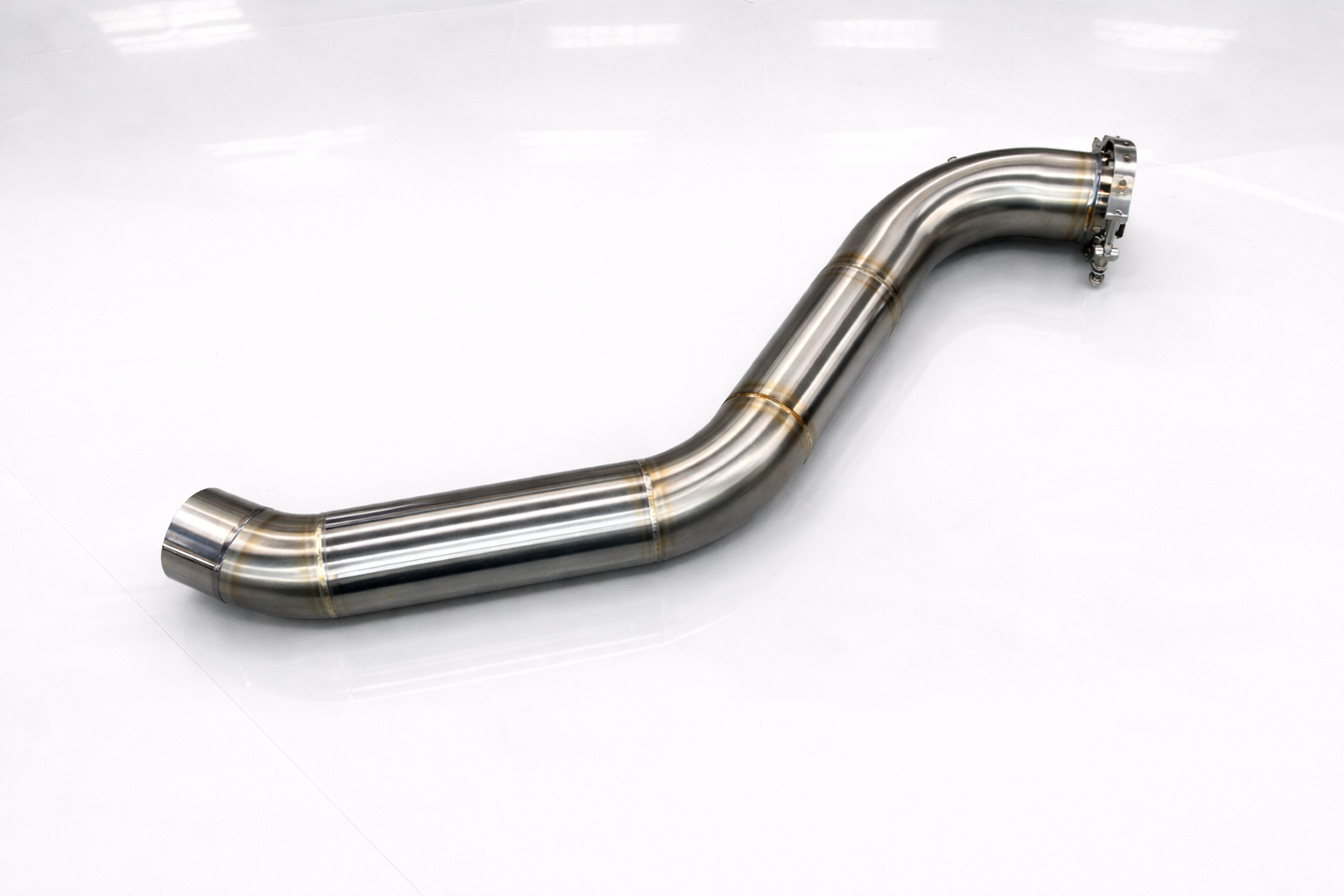

Downpipe (catted or race)
Turbo inlet pipe (optional)

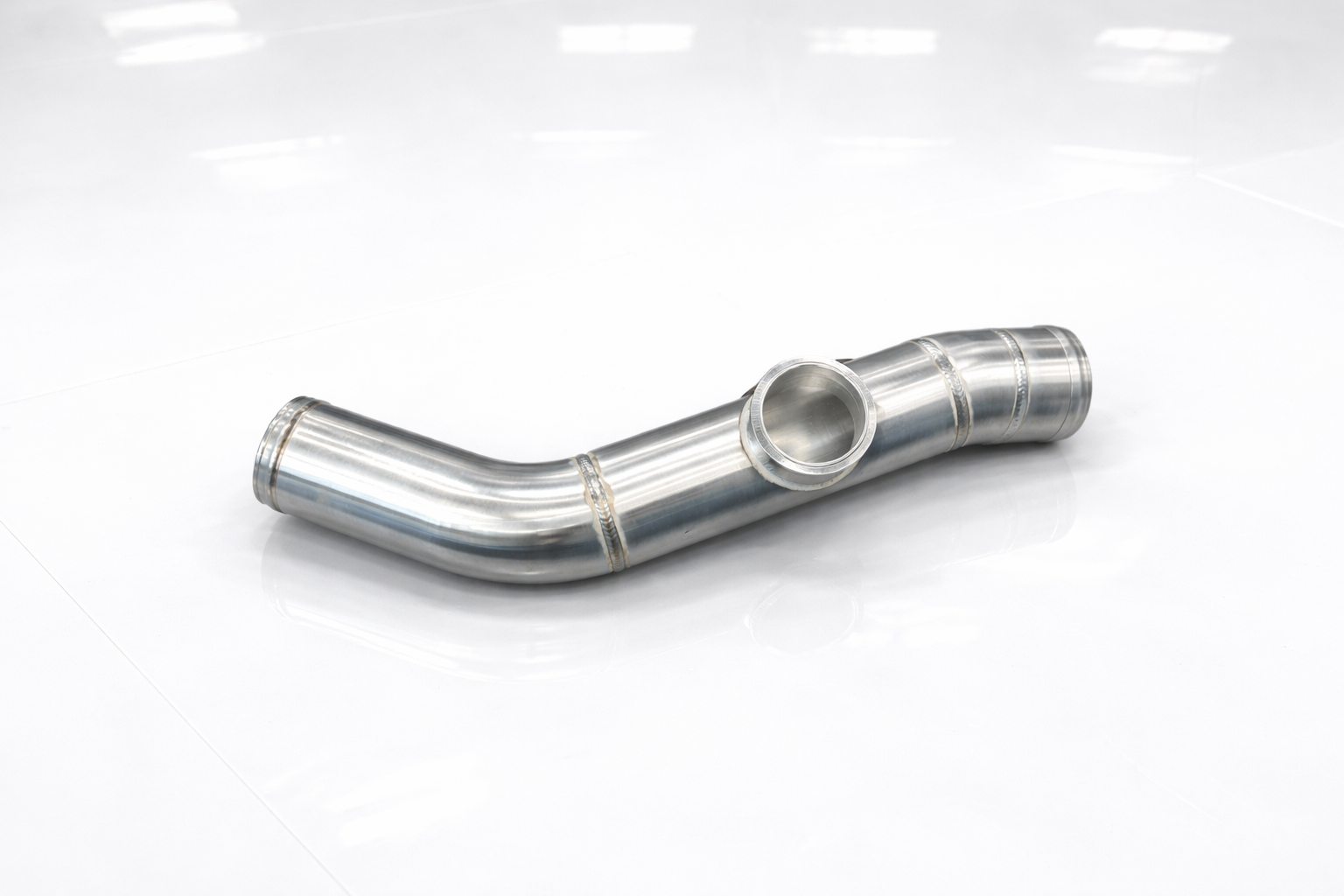

Hot-side pipe with blow-off valve flange

Oil System

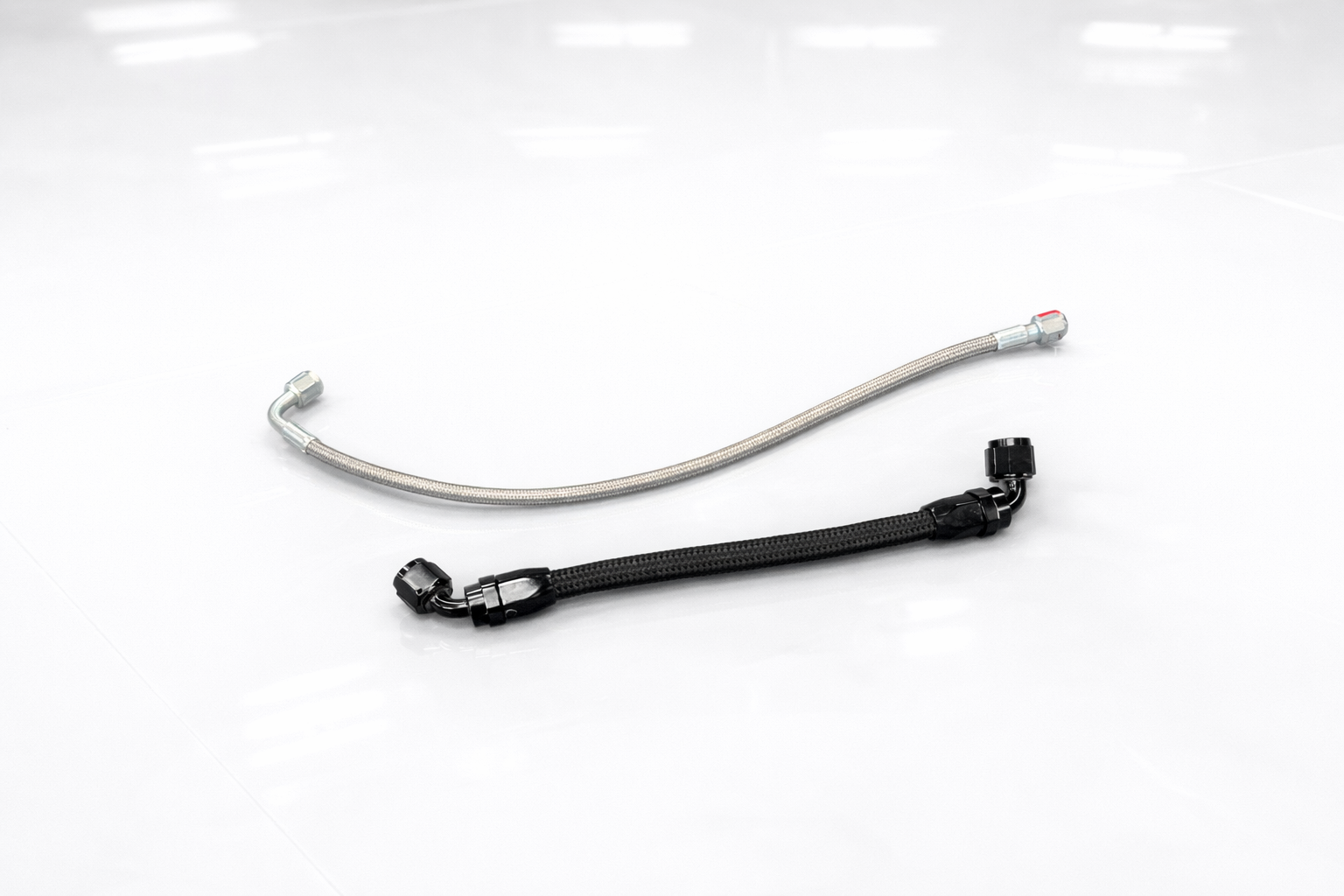

Turbo feed line
Turbo return line kit

Intake & Couplers

4” inlet air filter
4” 45-degree silicone hose
2.75” 90-degree coupler
2.75” 45-degree coupler

Clamps & Connections

2.75” T-bolt clamp
Turbo inlet clamp
Turbo exit clamp
4” hose clamps

Cooling System Provisions

Coolant passage block-off
Coolant pipe block-off

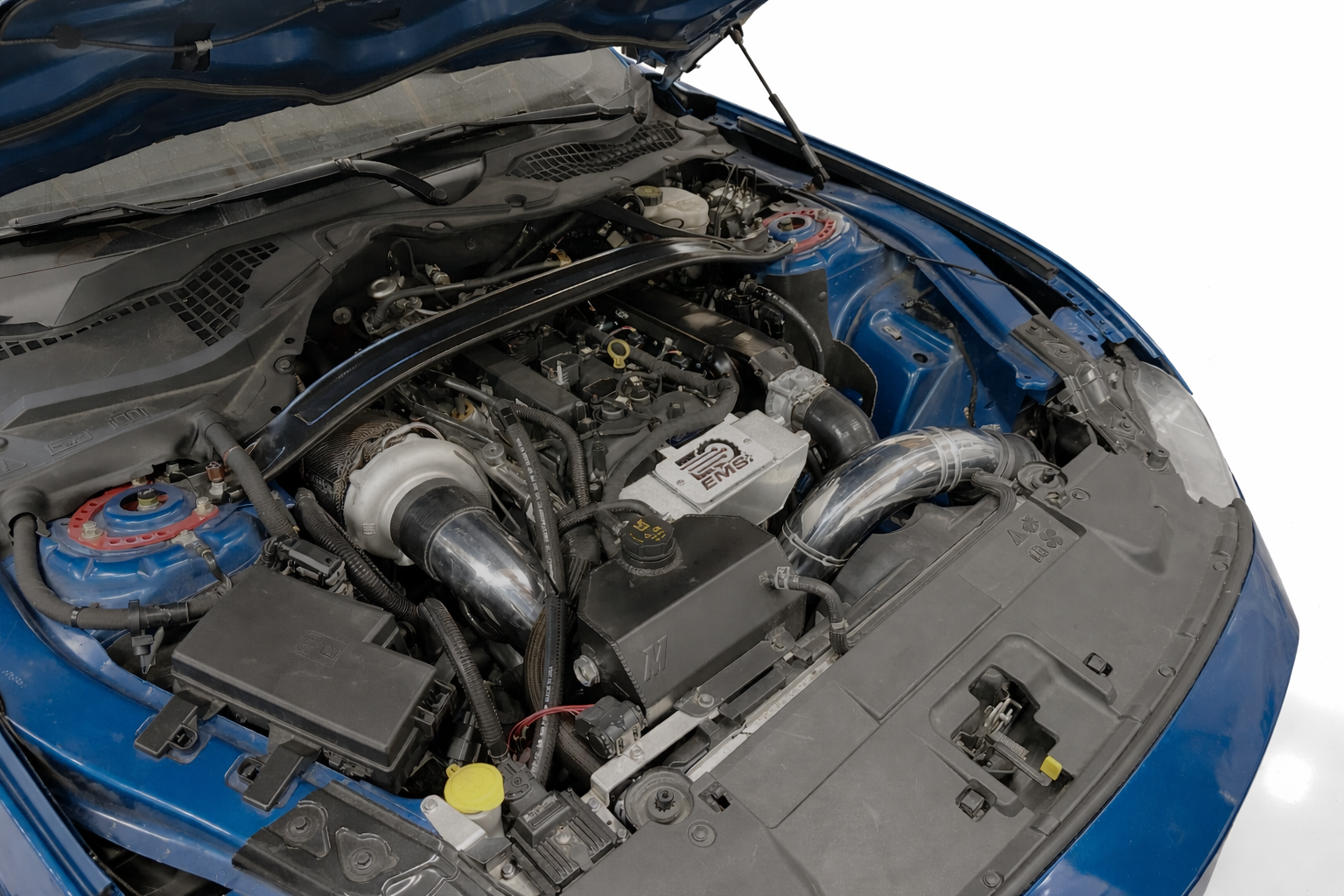

All components are designed specifically around the S550 EcoBoost platform to ensure proper fitment and clean routing within the factory engine bay.

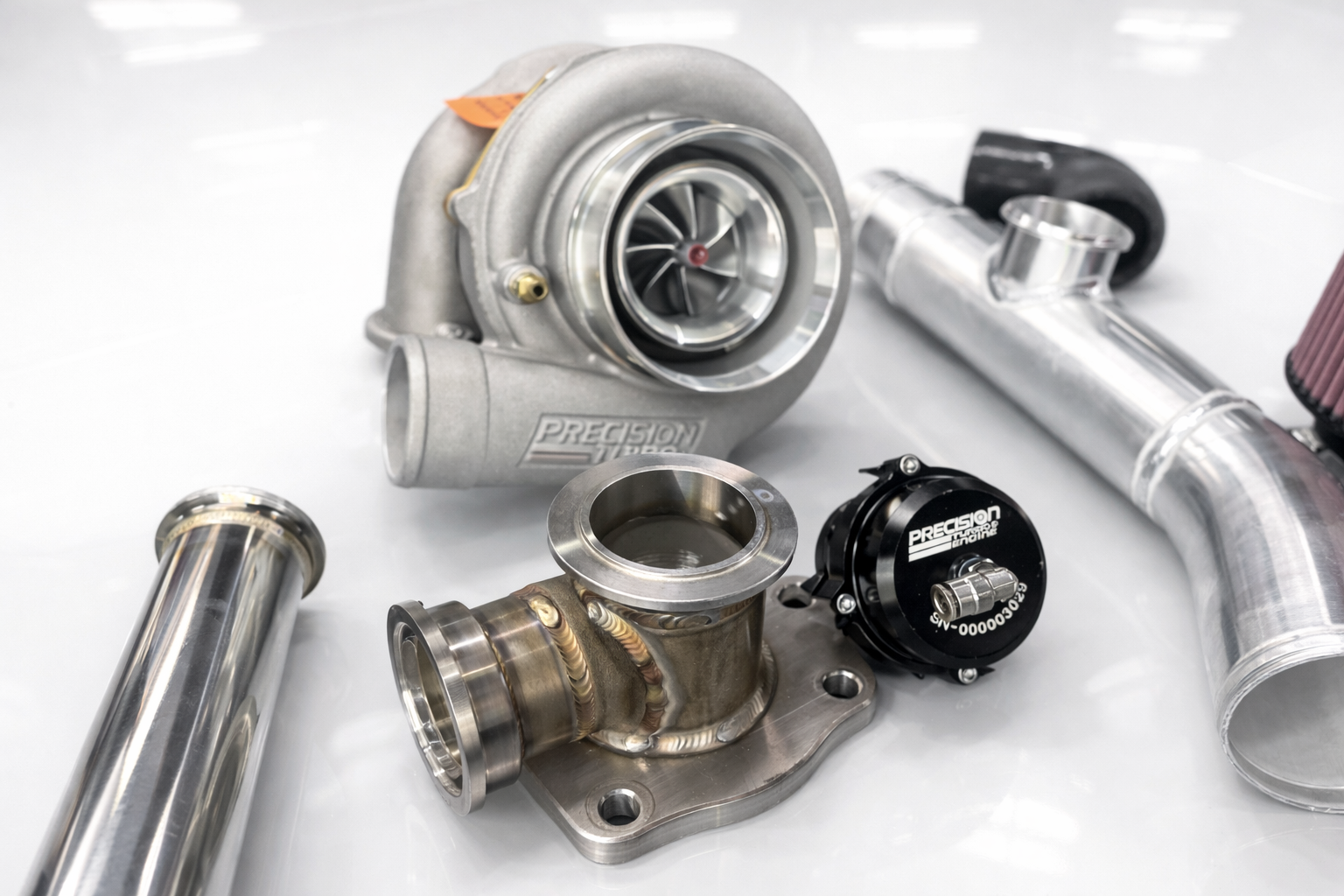

Turbo + Boost Control Components

The turbo options available with this kit are the same setups we’ve consistently run and proven through our race program and customer builds.

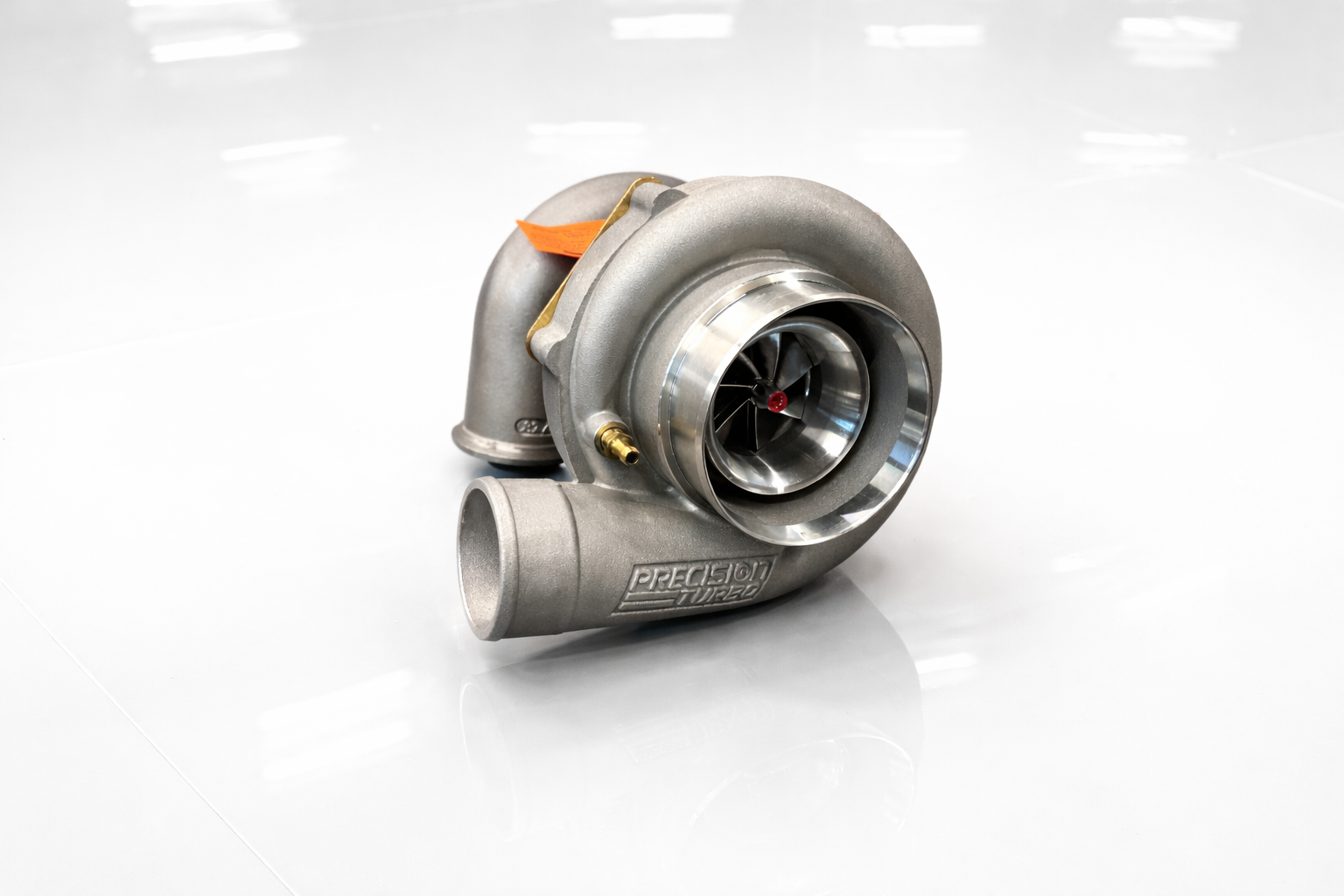

Turbo Options and Power Goals

Turbo Option	Power Range	Description
PTE 6266	600–750 HP	Strong street performance. Ideal for responsive setups.
PTE 6466	700–850 HP	Best all-around option. Balanced power and top-end performance.
PTE 6266 SS	600–750 HP	Same performance as 6266 with stainless housing.
PTE 6466 SS	700–850 HP	Stainless version of 6466 for added durability.
PTE 6870 SS	850–1000+ HP	Maximum power option for high-horsepower builds.

Blow-Off Valve Options:

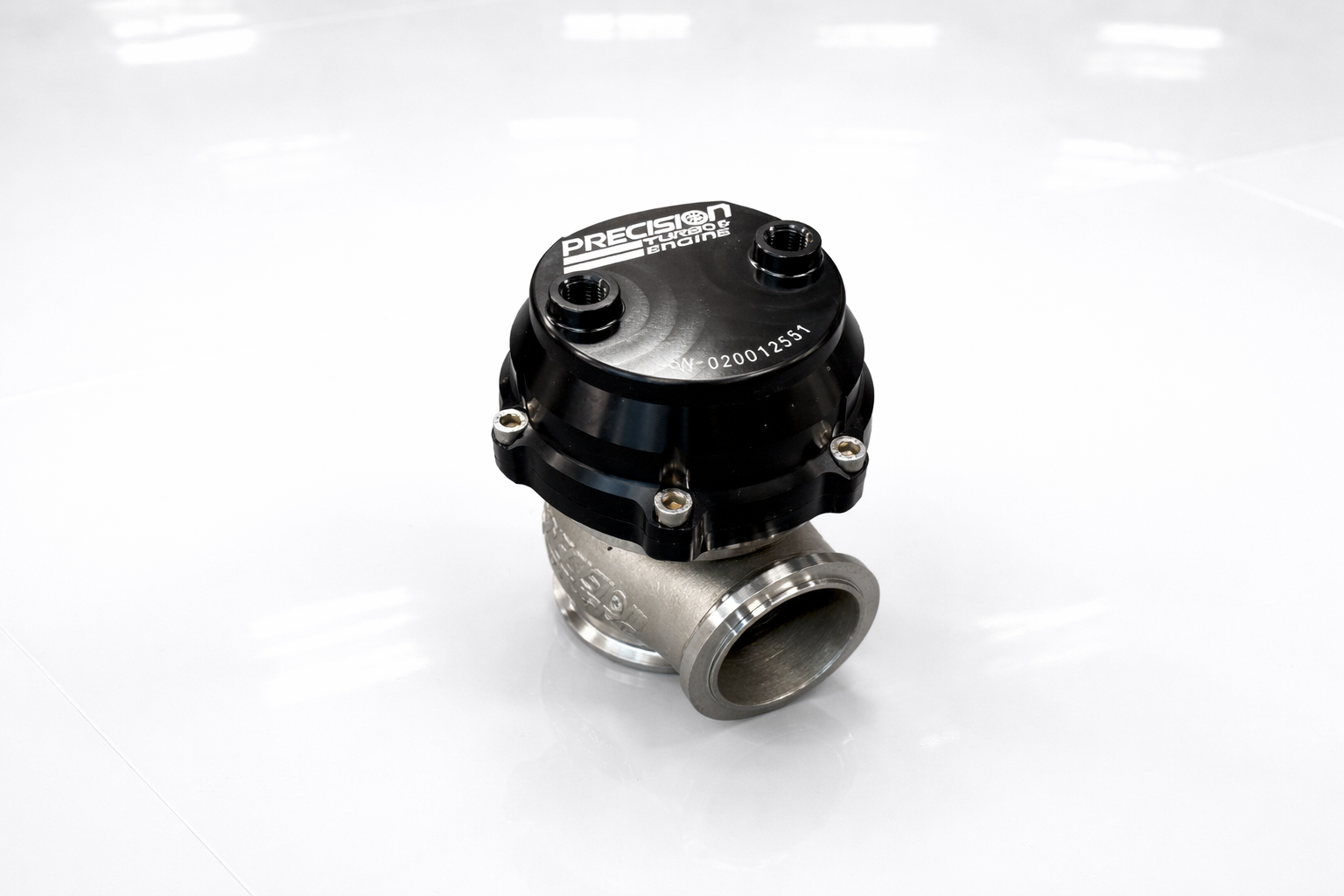

Precision Turbo 50mm Blow-Off Valve (recommended)
Option to supply your own compatible blow-off valve

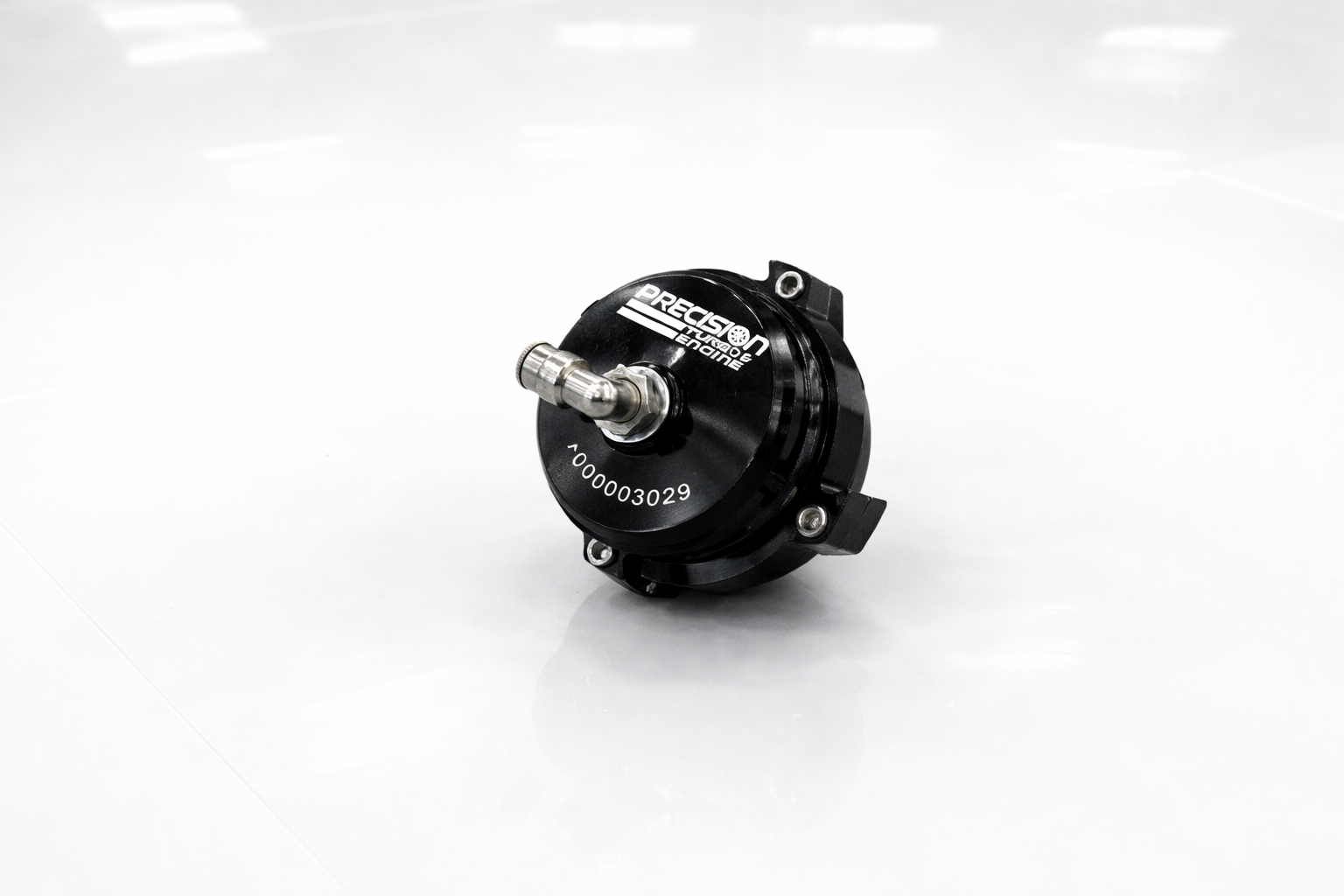

Wastegate Options:

Precision Turbo External Wastegate (recommended)
Option to supply your own compatible wastegate

Turbocharger, blow-off valve, and wastegate can be selected as part of your configuration or supplied by the customer.
This system is designed around Precision Turbo (PTE) components, and performance or fitment is not guaranteed with non-PTE parts.

Important Installation Note (NextGen Turbocharger Compressor Housing)

All NextGen turbocharger compressor housing bolts require thread sealant during installation.

Failure to properly seal these bolts will result in a significant boost leak and can affect system performance and drivability.

This applies to all applicable turbo configurations used with this kit.

If you have any questions regarding proper installation procedures, contact us prior to installation.

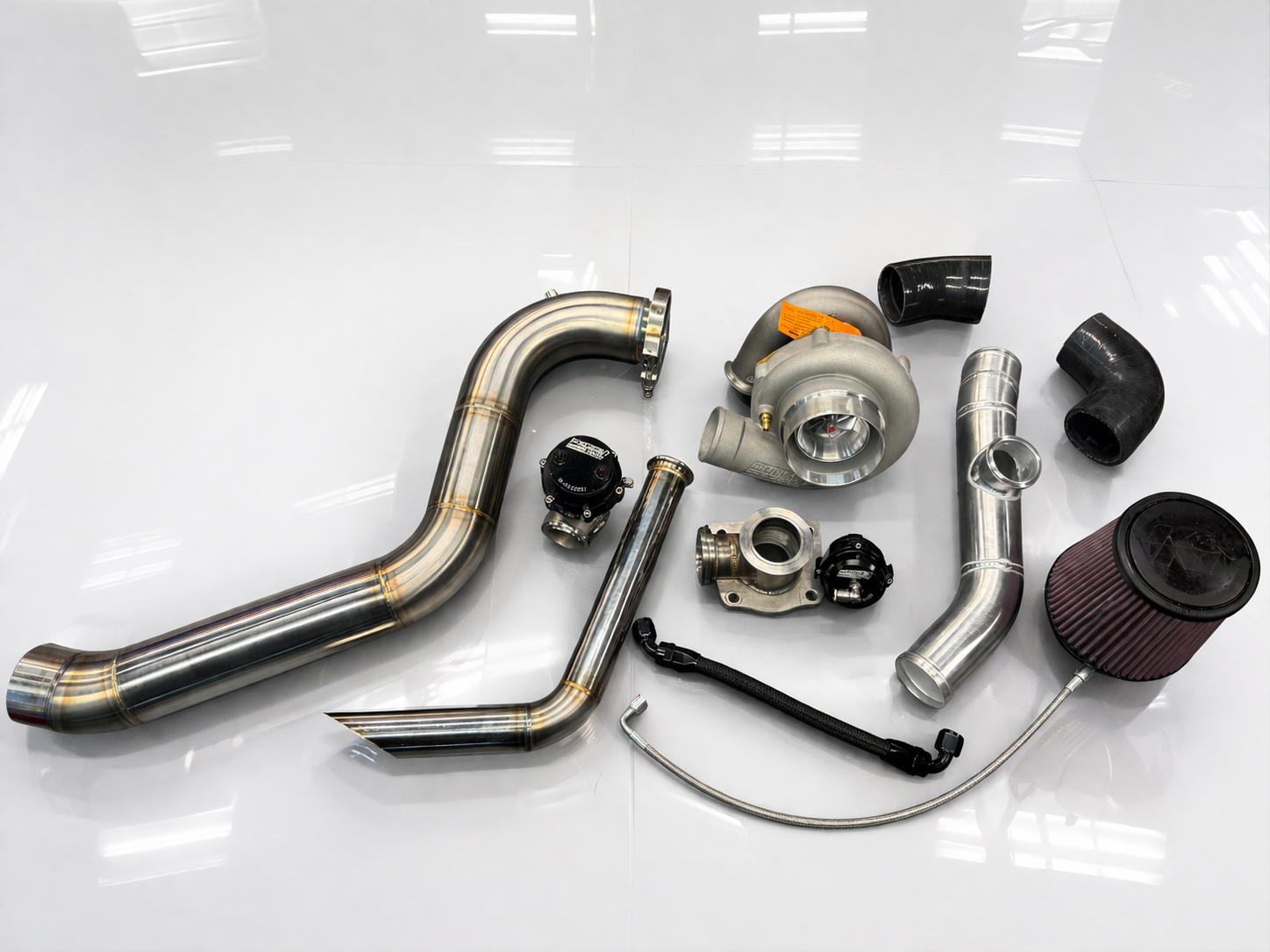

Complete System

The full turbo system consists of:

Base Complete Kit
Turbo + Boost Control Components

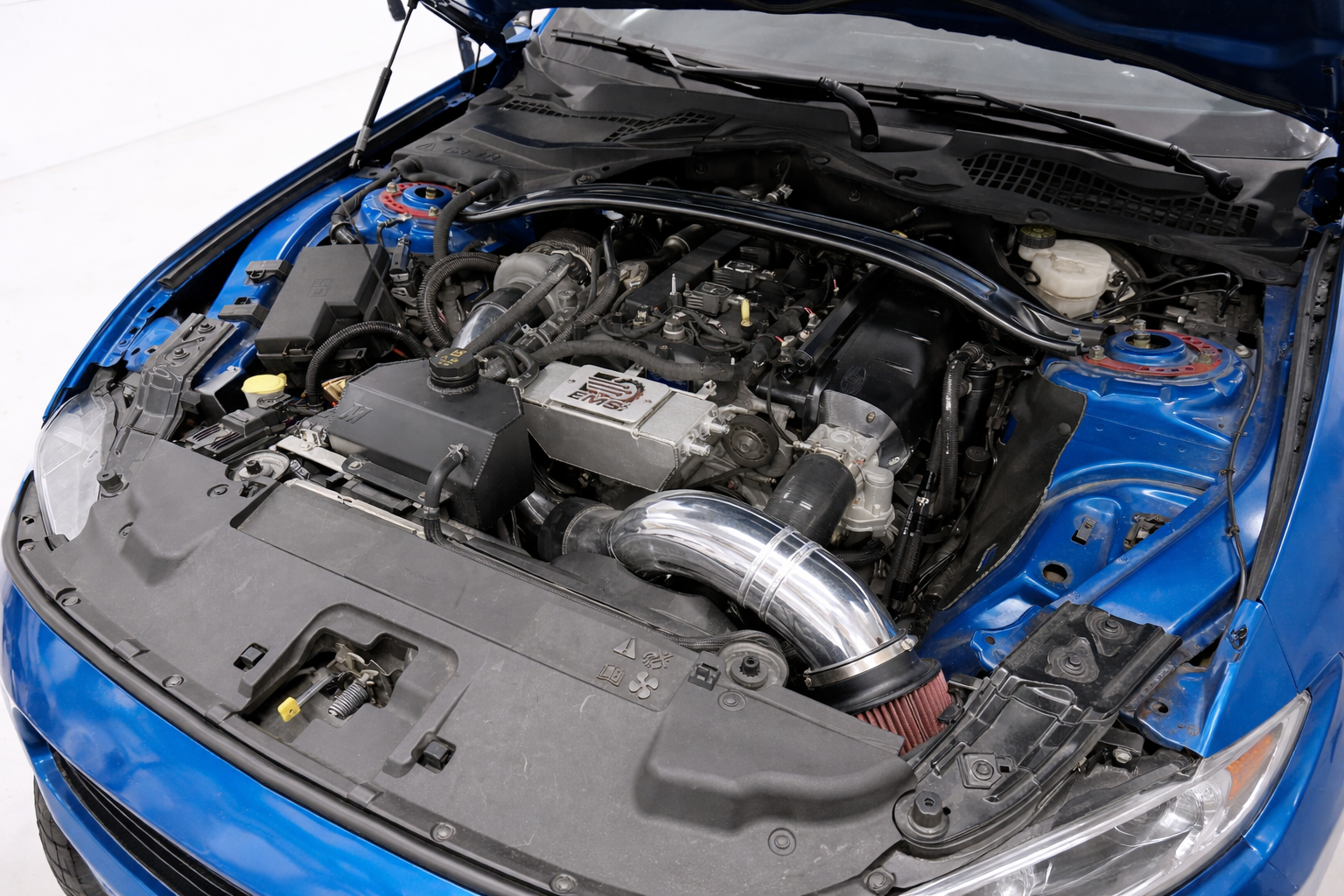

Combined, this creates a complete, install-ready turbo setup for the 2015–2023 Mustang EcoBoost.

Recommended Supporting Components

These components are not required for purchase but are strongly recommended based on our experience with higher horsepower EcoBoost builds and the configurations this kit supports.

Ceramic Coating (Highly Recommended)
Helps reduce engine bay temperatures and improve overall thermal management.

Downpipe & dump tube ceramic coating
Downpipe, dump tube, and turbo exhaust housing coating

EMS 3-Port MAC Valve Kit (Highly Recommended)

Provides more consistent and reliable boost control and is a tunable solution.

EMS 5-Bar MAP Sensor Kit (Highly Recommended)

Allows the ECU to properly read and control higher boost levels required for tuning.

FULL-RACE T3 Turbo Blanket (Highly Recommended)
Helps contain heat within the turbocharger, reducing engine bay temperatures and protecting surrounding components.

Fitment Note
Vehicles equipped with a JMF Billet Intake manifold will require a different cold-side charge pipe configuration.

Need Help Finalizing Your Setup?

If you have questions about configuration, compatibility, or dialing in your setup, contact us directly.

We’re available to help you spec the system correctly based on your build.

Call us (423) 500-4901 or

Email us at sales@emsinc-tn.com

WWW.EMSINC-TN.COM

Exhaust Port	3 Port, 4 Port (COMING SOON)
Turbo	PTE 6266, PTE 6466, PTE 6266 SS, PTE 6466 SS, PTE 6870 SS, I'll Supply My Own Compatible Turbo
Turbo Inlet Pipe	Included: Yes, No Thanks
Downpipe	Included: Street/Catted Downpipe, Race/Off-Road Downpipe
Blow-Off Valve	Included: PTE 50mm Blow-Off Valve (Recommended), I'll Supply My Own Compatible Blow-Off Valve
Wastegate	Included: Precision Turbo WGA (Recommended), I'll Supply My Own Compatible Wastegate
