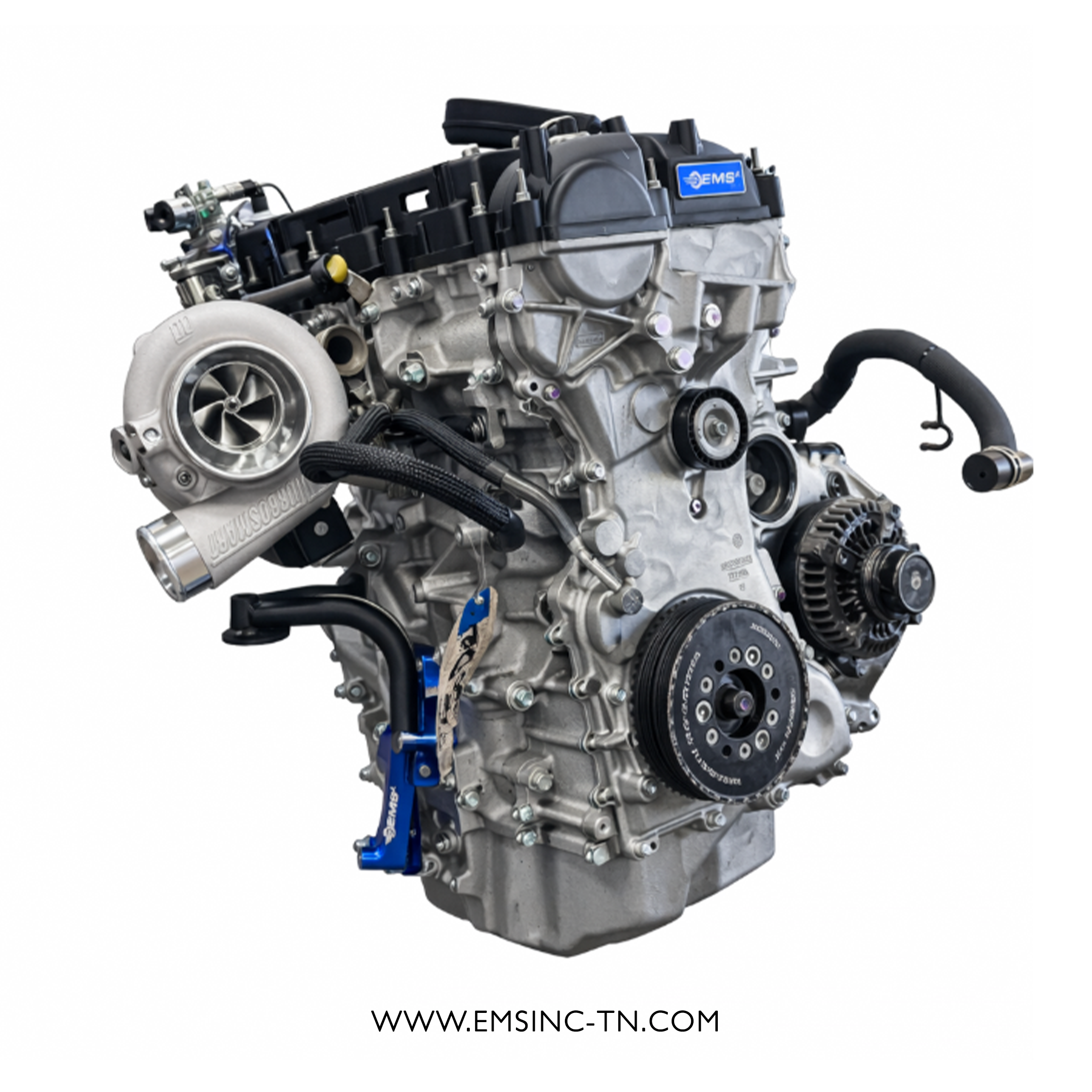

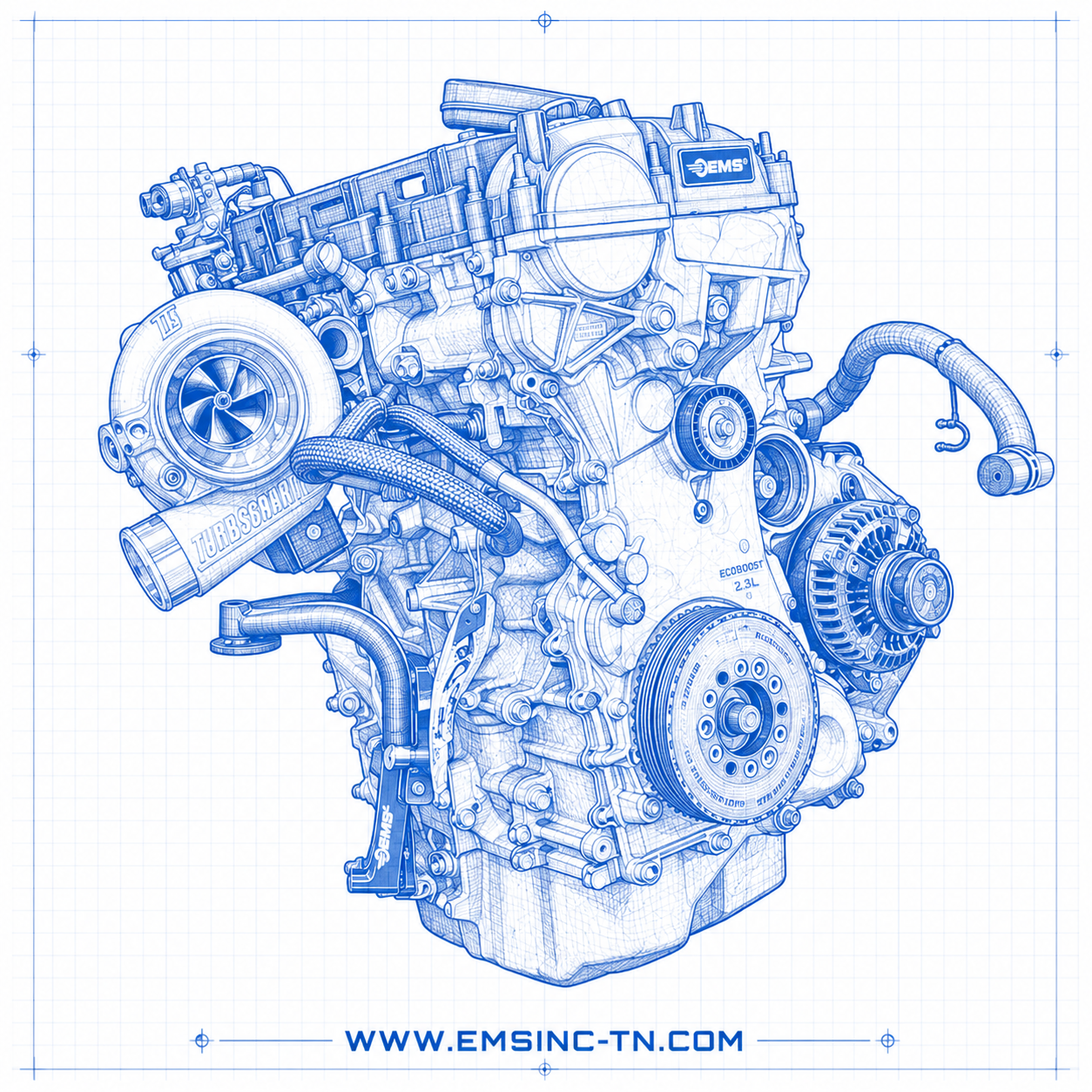

EMS – EcoBoost Long Block Engine Rebuild
Price range: $6,431.20 through $9,588.97
-
EMS Long Block Rebuilds are offered in two configurations: Budget and BadAss.

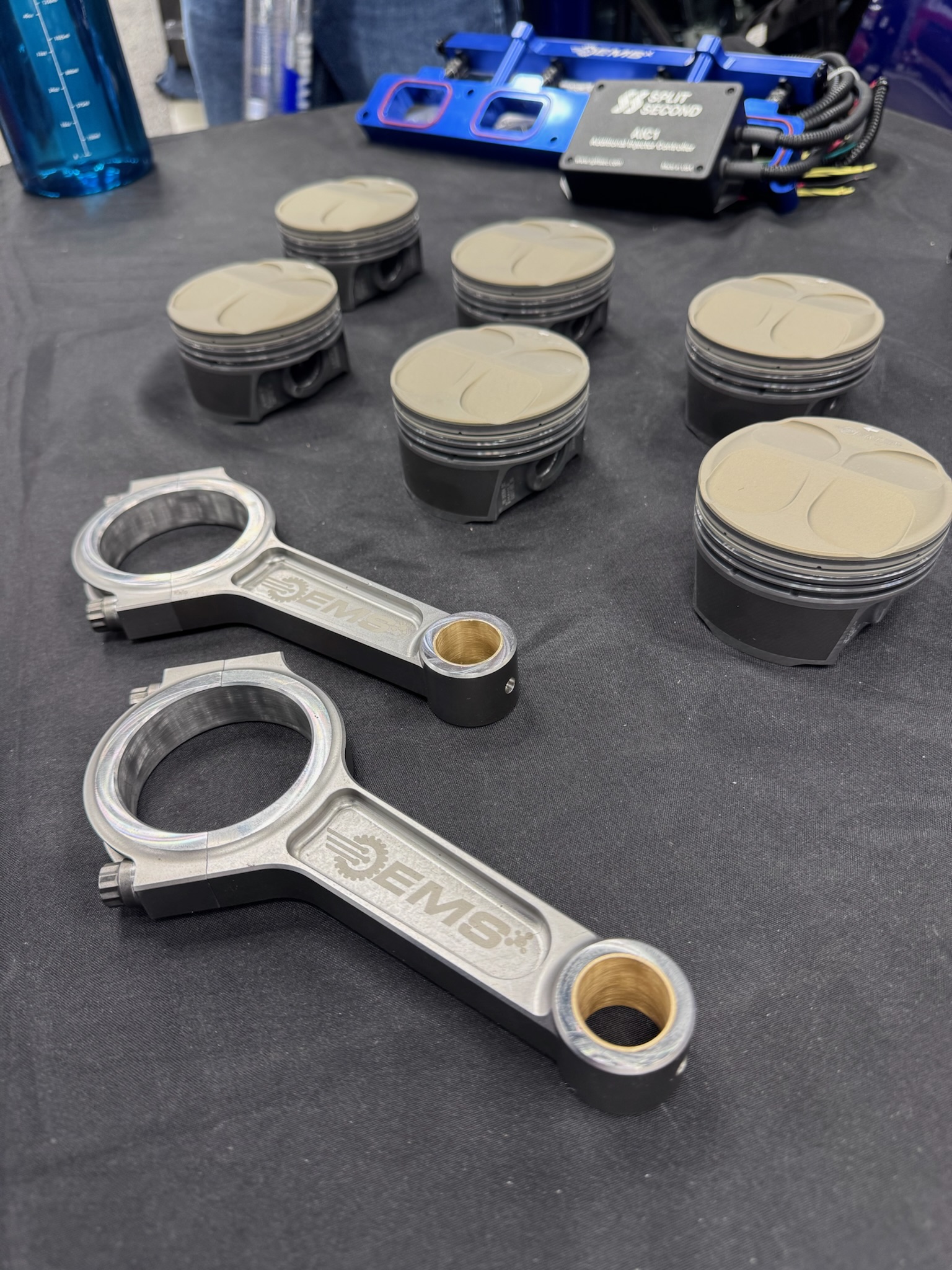

The Budget Rebuild is designed for enthusiasts targeting up to approximately 550 WHP using proven components such as forged H-beam rods, Mahle pistons, ARP CA625+ head studs, and a balance shaft delete. Camshafts and upgraded valve springs are not included by default but are available as optional upgrades based on your specific performance goals. Despite the name, this is not a stripped-down or compromised engine. It is a fully engineered rebuild focused on reliability, efficiency, and real-world performance.
The BadAss Rebuild is built for higher power goals of approximately 700 WHP and beyond. It features upgraded rotating assemblies including Wiseco BoostLine I-beam rods, a keyed rotating assembly with pinned OEM crankshaft, ARP CA625+ head studs, and a balance shaft delete. Upgraded camshafts and valve springs are available as optional upgrades to support higher boost levels and more aggressive setups. This configuration is ideal for customers planning aggressive boost levels, track use, or future power growth.
Calling it “Budget” does not mean cutting corners. It simply means choosing the most effective parts combination for the intended power level. Both rebuilds receive the same EMS machining standards, assembly process, and attention to detail.
Important Notice: Damaged Parts Disposal Policy: Any damaged, worn, or unusable parts removed during the rebuild process will be disposed of by Engineered Motorsport Solutions (EMS) unless the customer specifically requests their return prior to the start of the build. EMS is not responsible for retaining or returning parts that have not been identified for return before work begins.
Estimated ship time is 12-16 weeks on most builds.
(All EMS Performance Engines are 2.3L stroker builds. By purchasing, you acknowledge that these engines are intentionally stroked from the original 2.0L configuration to 2.3L)
Call us (423) 500-4901 or
Email us at sales@emsinc-tn.com
WWW.EMSINC-TN.COM
Start your build:
Engineered Motorsport Solutions INC.
HOW DOES AN EMS LONG BLOCK REBUILD WORK AND WHAT IS INCLUDED?

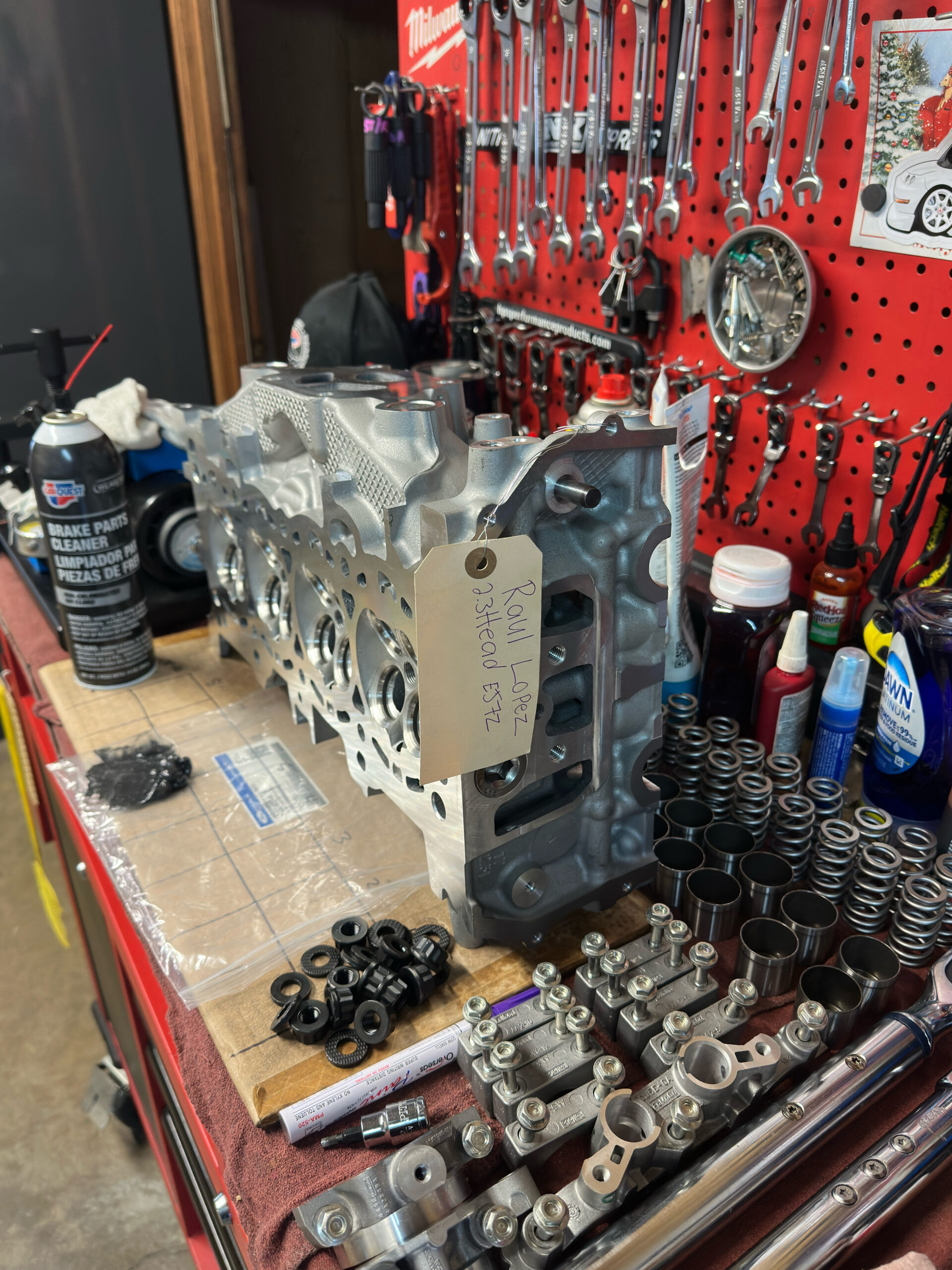

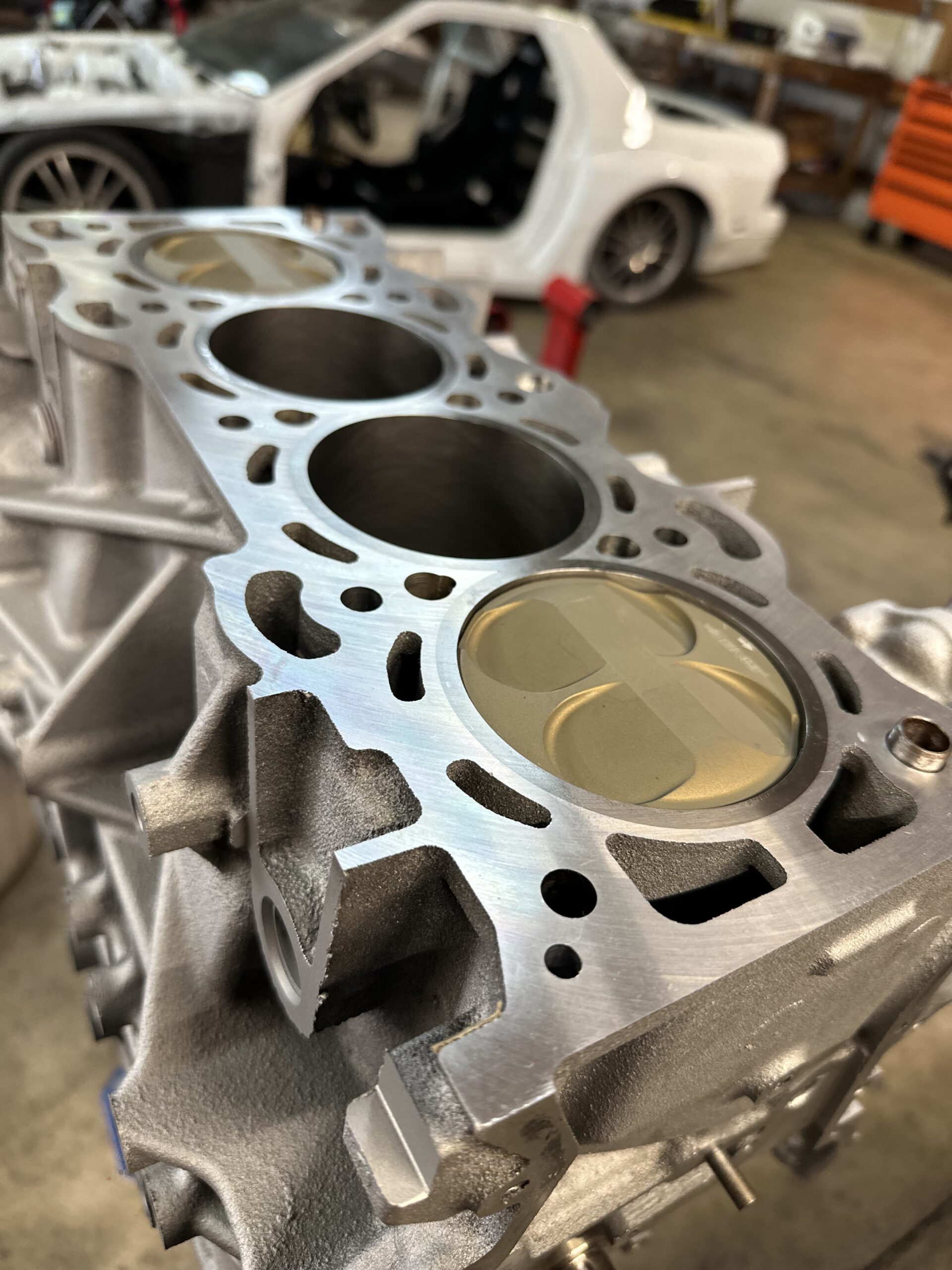

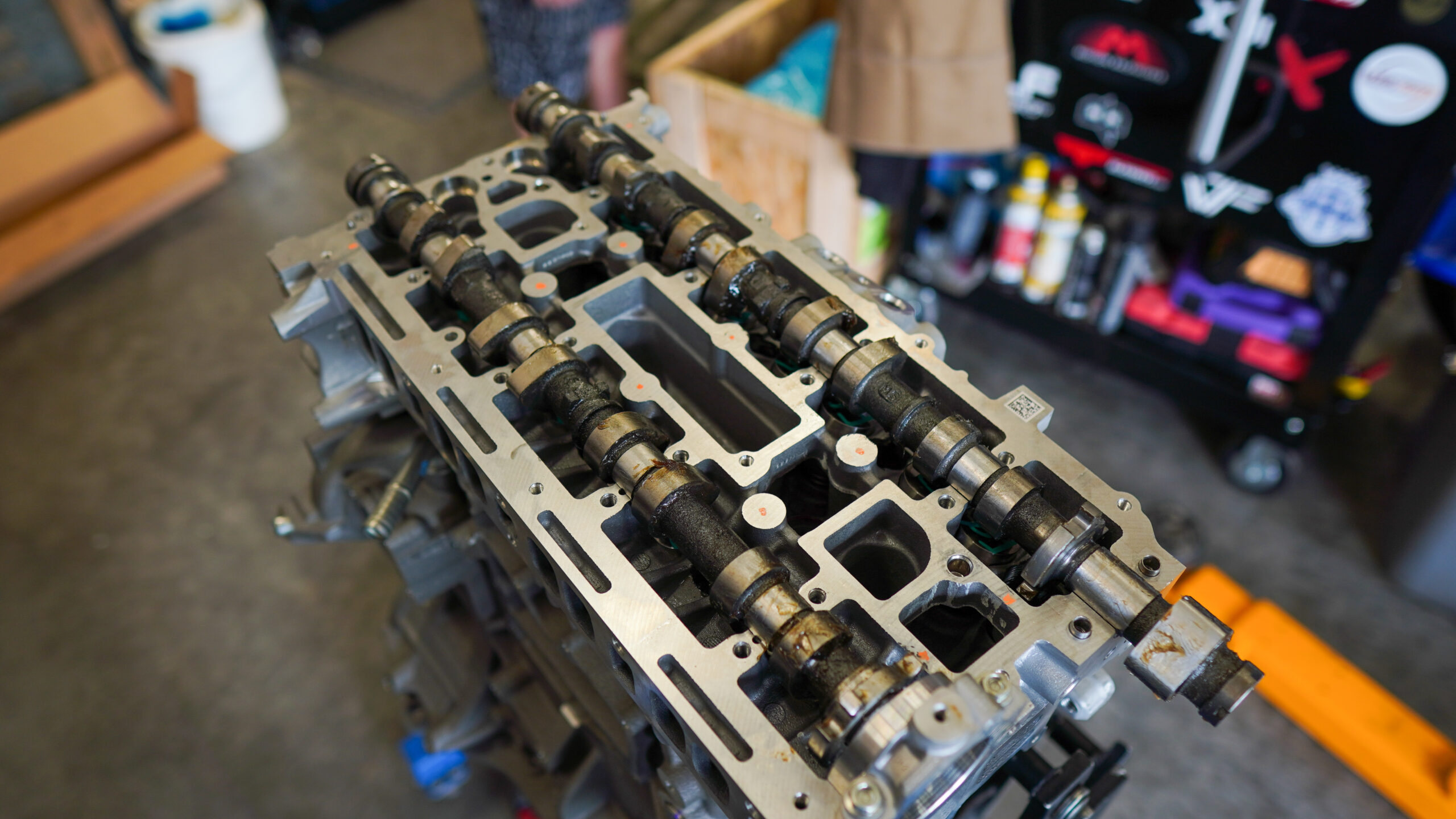

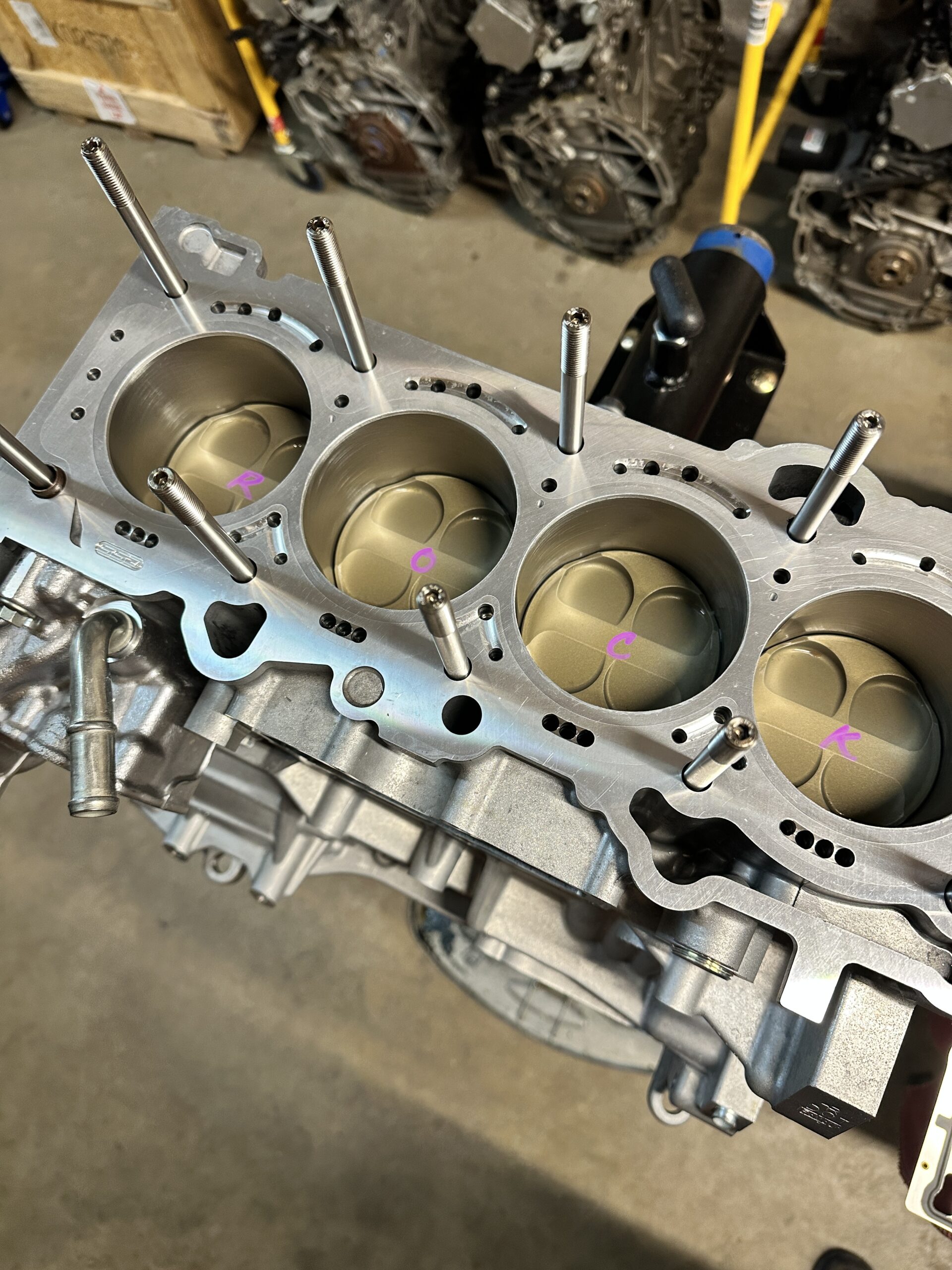

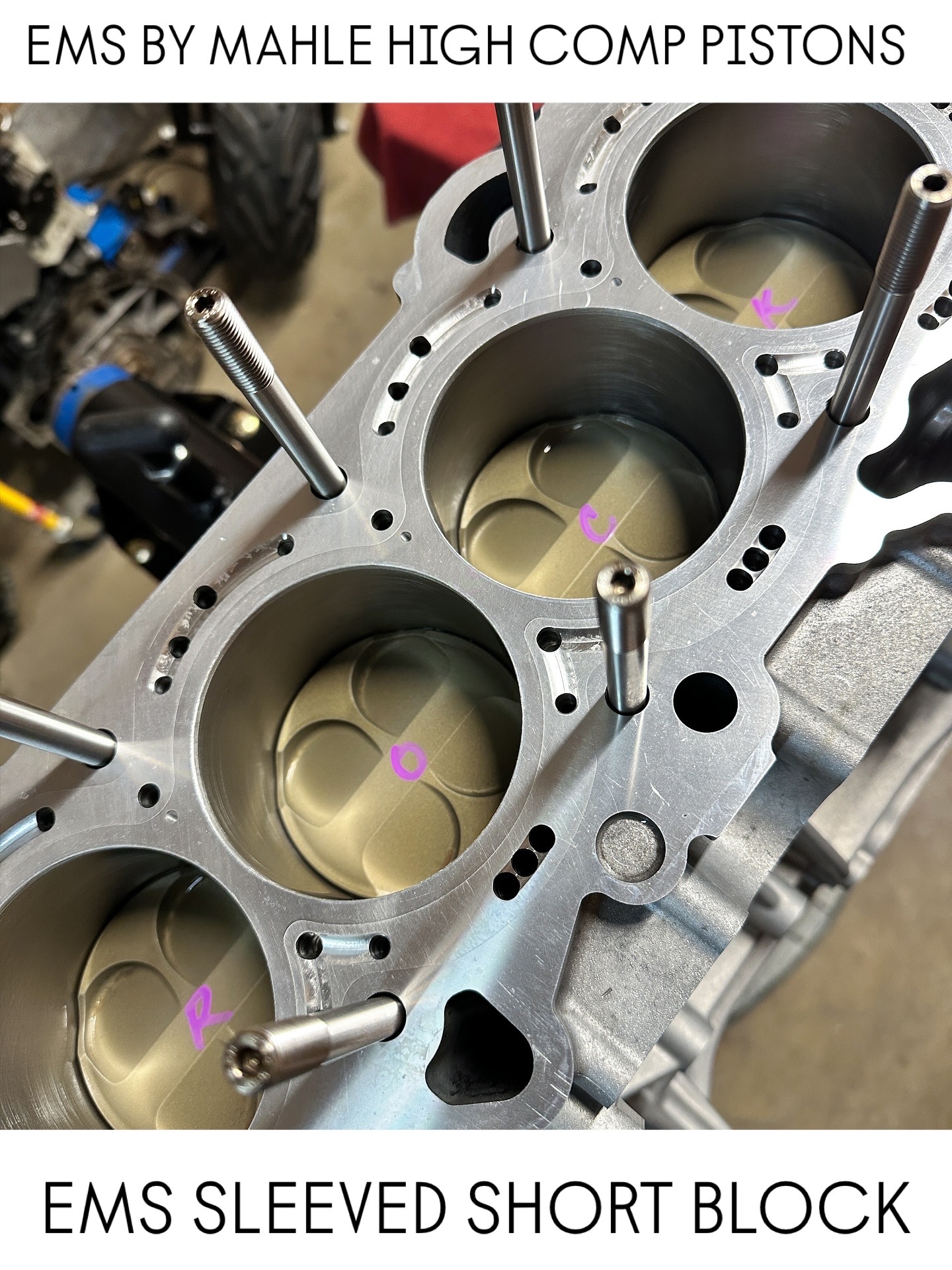

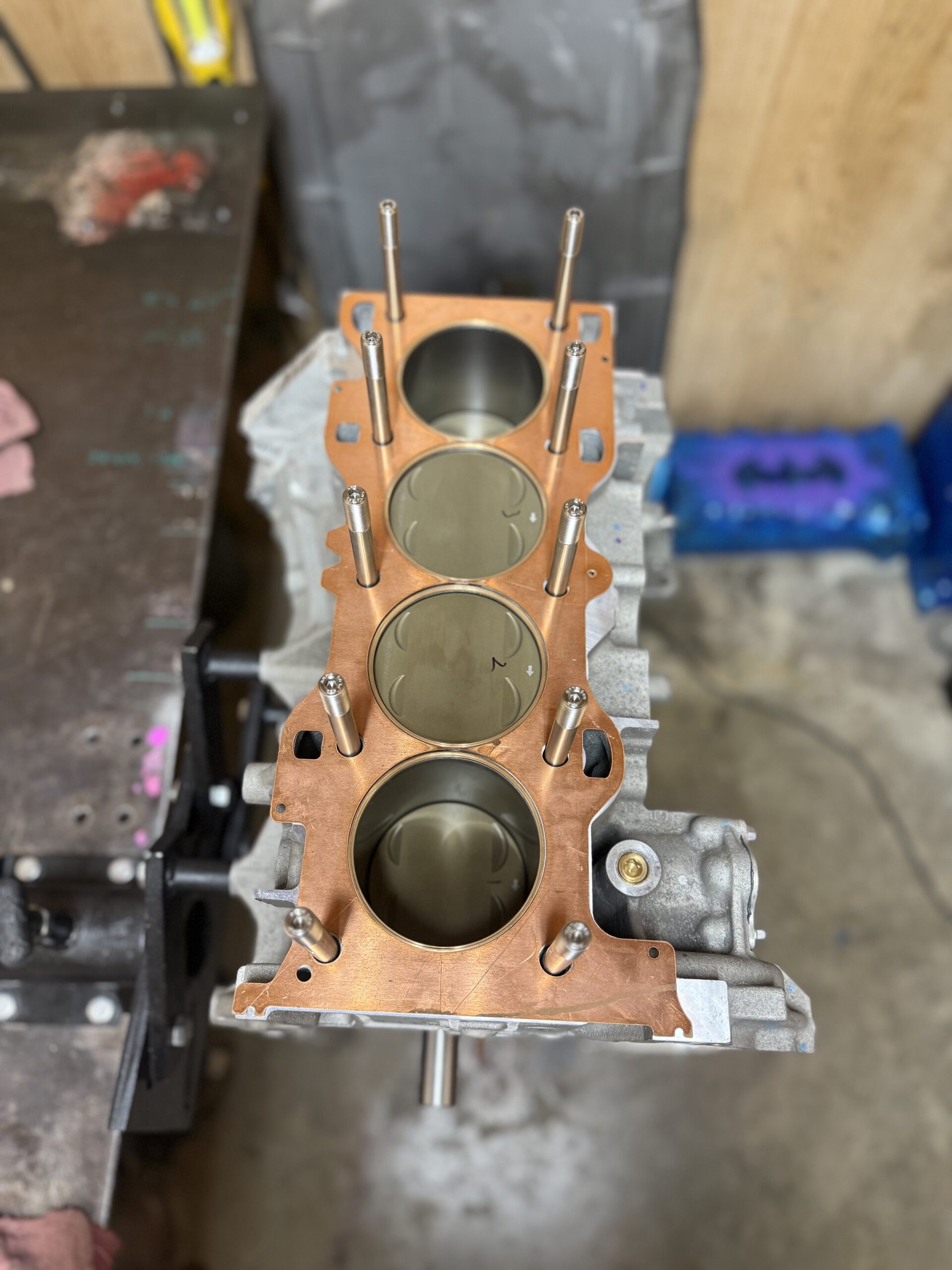

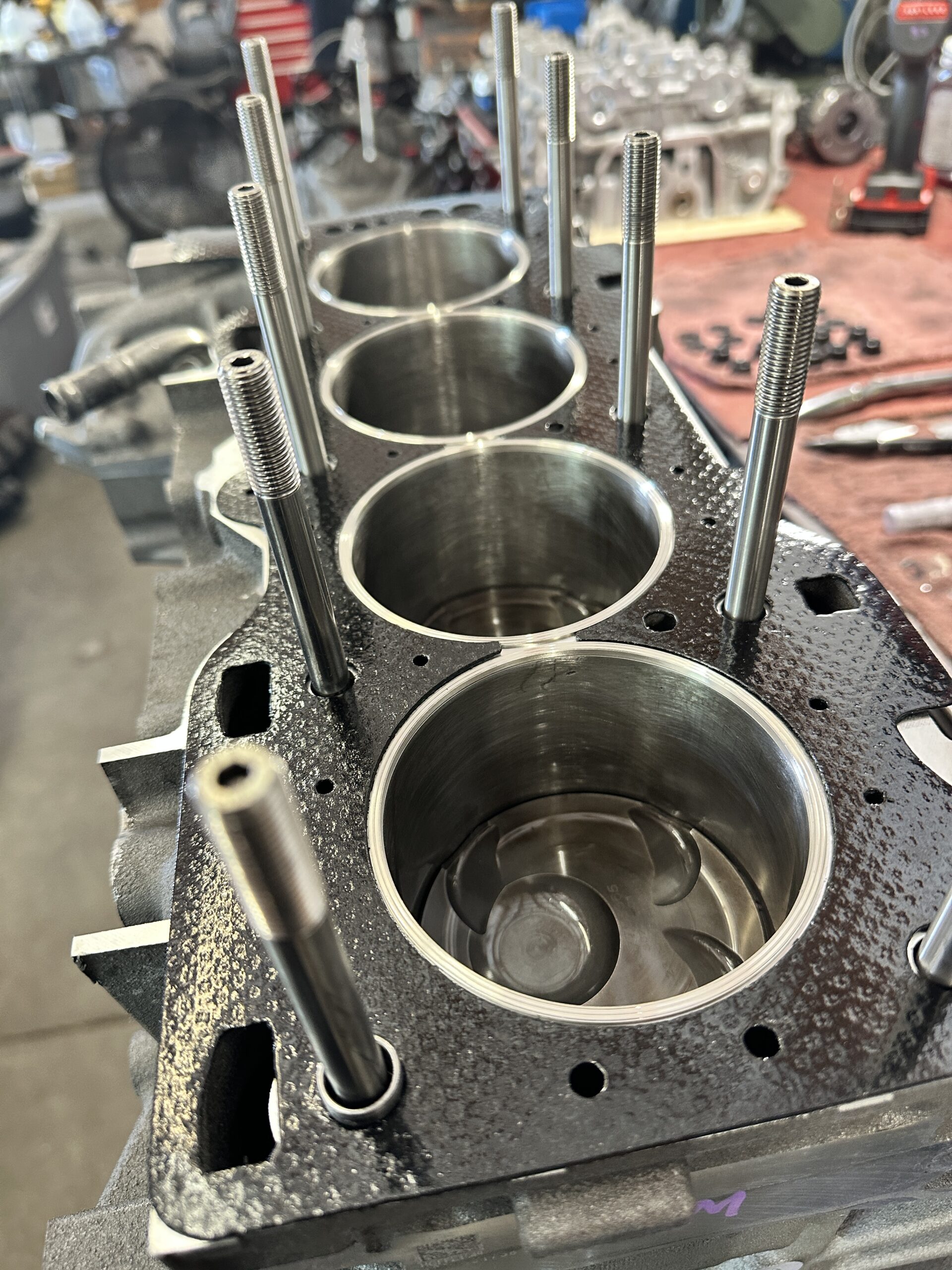

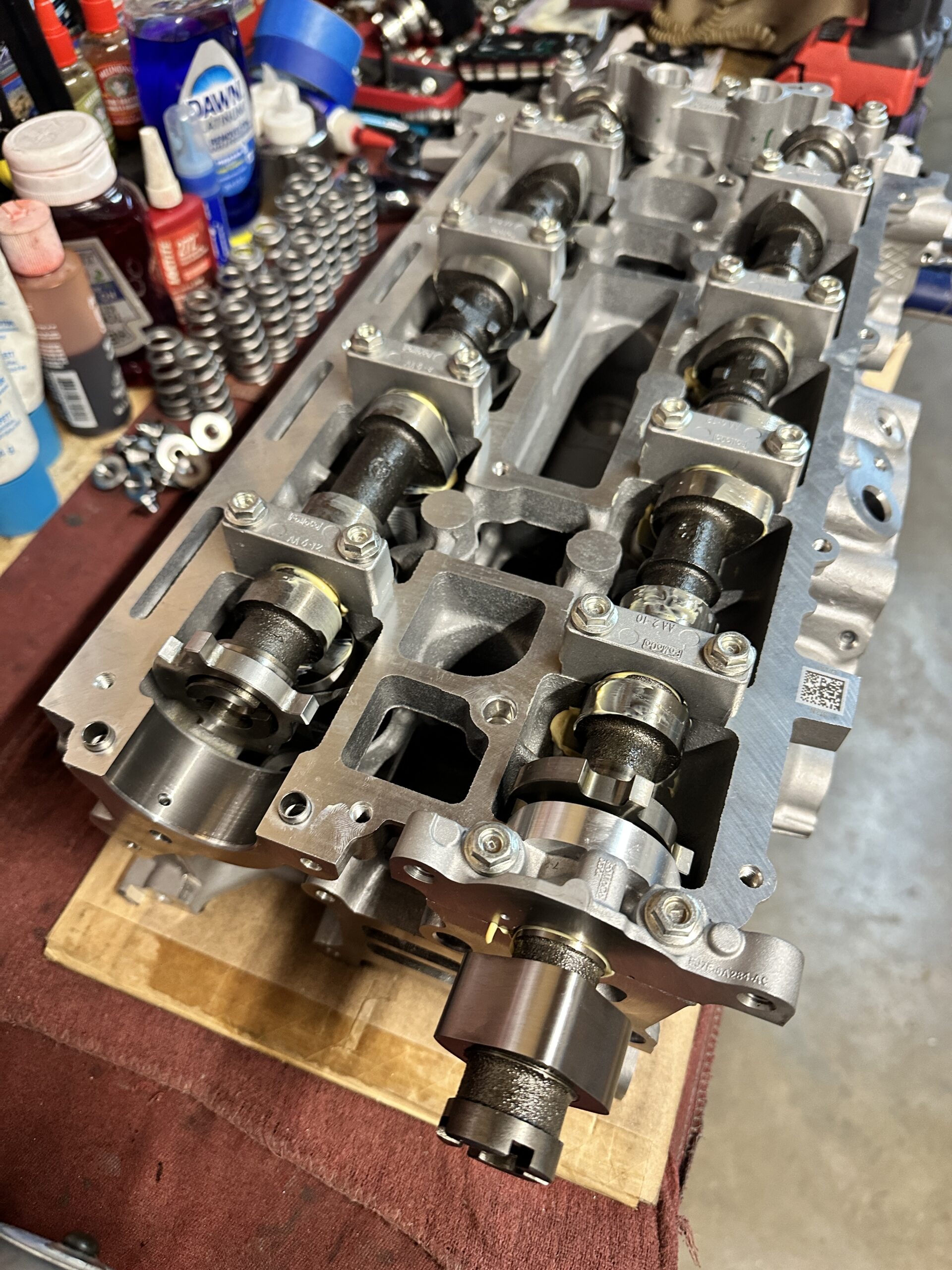

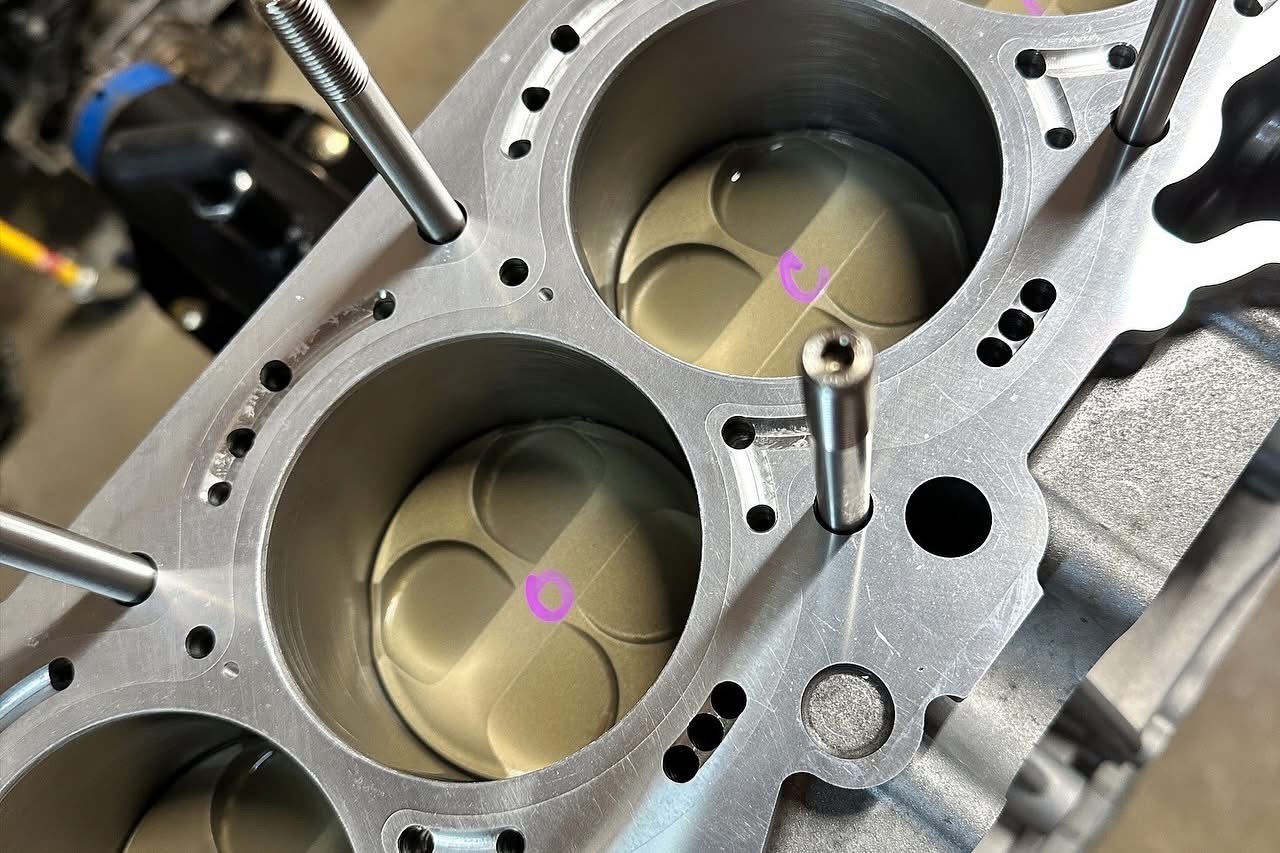

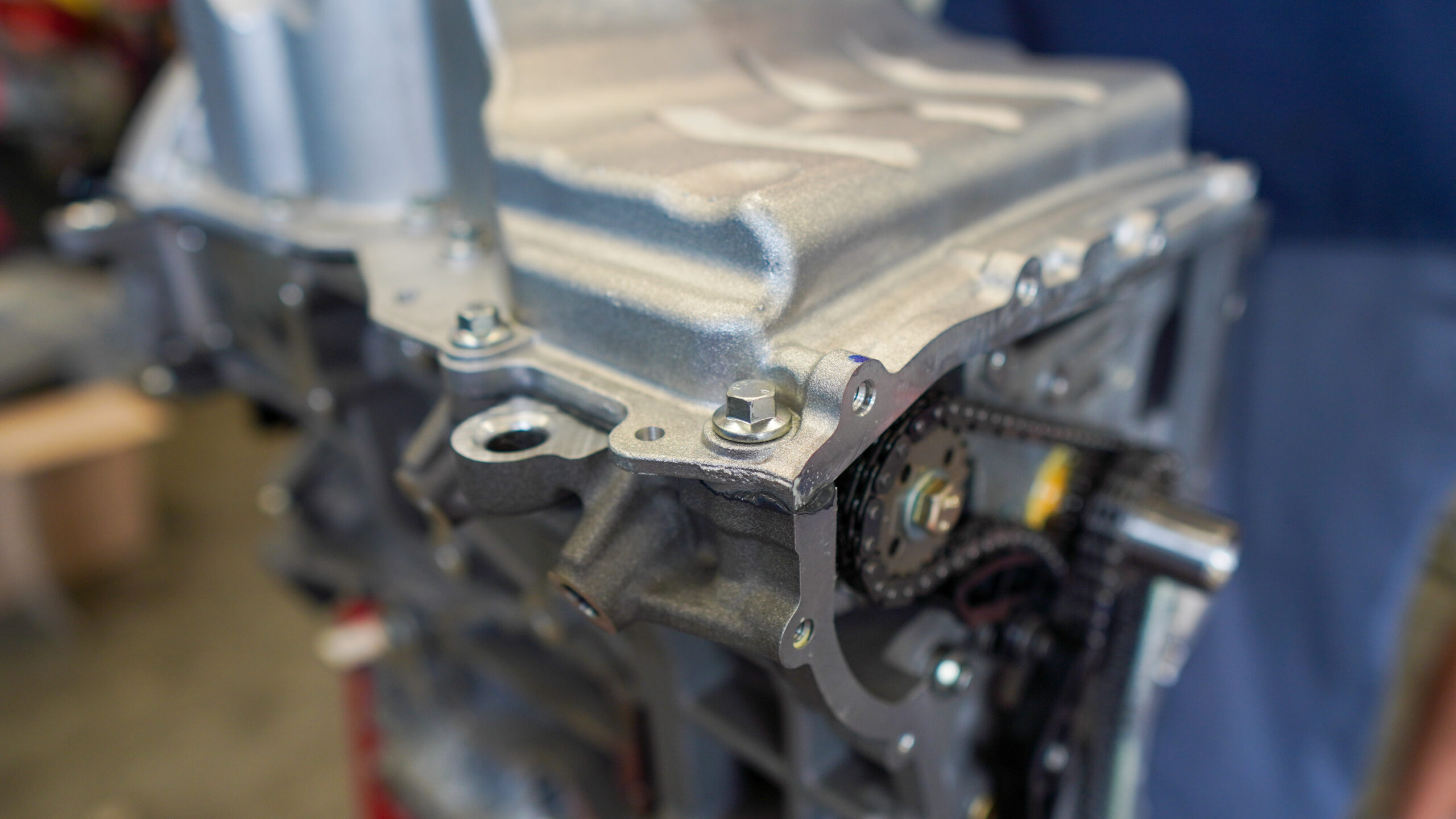

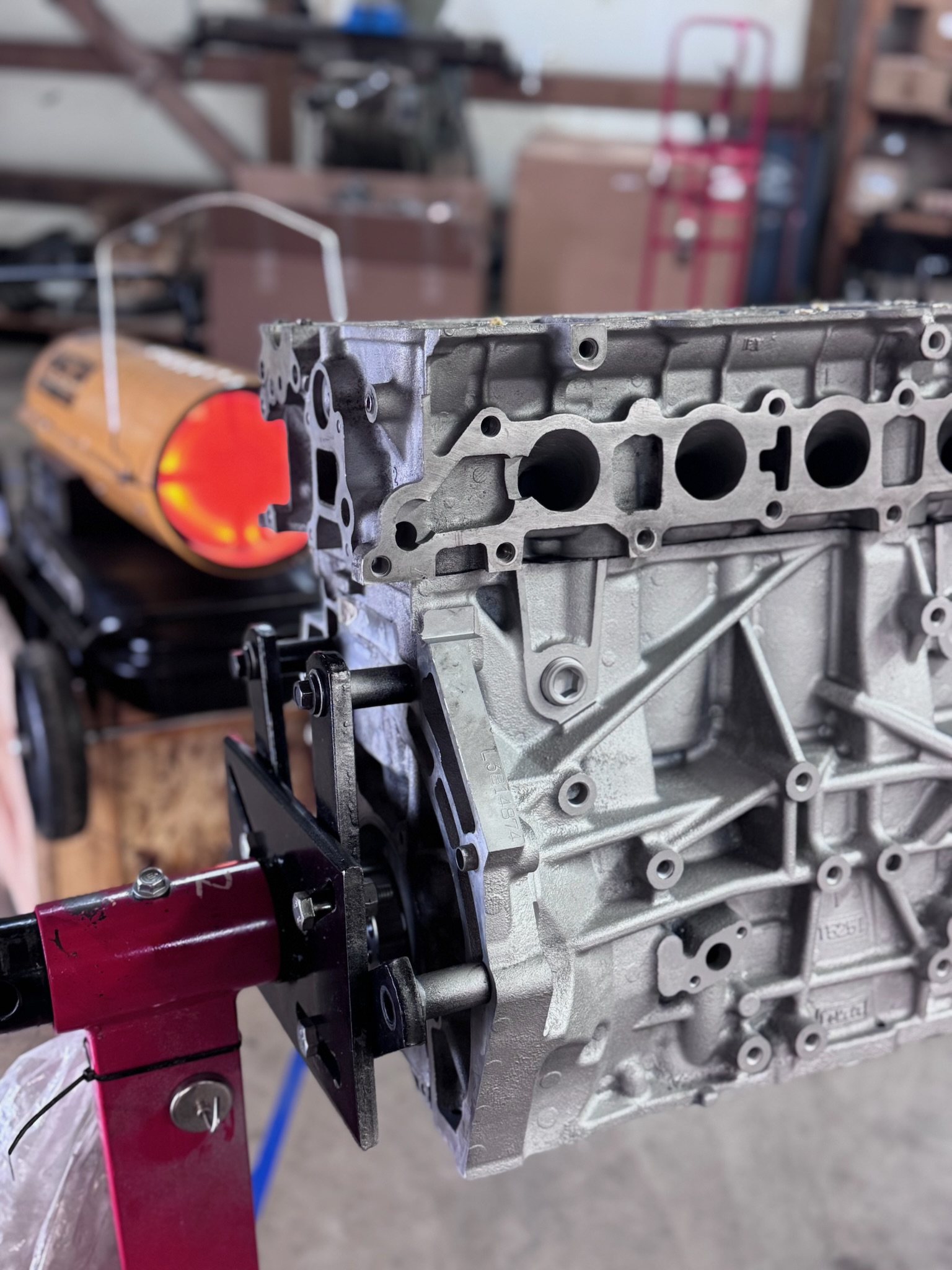

You transport your car or ship your old engine to us in East TN. When received at EMS, we will tear down your engine while keeping the cylinder head. Your timing cover, oil pan, timing components, and oil pickup tube will be inspected during tear down. If in good condition, they will be reused in the rebuild unless replacement options are purchased (available below). If your engine is blown, we recommend new timing/oil components in the drop downs. (Camshaft and springs /retainers upgrades are available in the dropdown menu below.) EMS will build a brand new block (or used if provided) using EMS spec standard comp or high comp Mahle pistons, keyed OEM crankshaft, Weisco Boostline Rods, King Main & Rod Bearings, balance shaft delete, new oil pump, and new oil squirters, and new intake and exhaust valve seals. EMS will then marry your freshly decked core OEM head to the new EMS block using EMS spec CA+ 625 head studs and an OEM head gasket. We will install the oil/timing components and covers provided with the core engine to the rebuilt engine and time it. Lastly, EMS will install a new Ford OEM Rear Main Seal. From here, EMS will either ship your engine to you or install it in your car. Shipping and Installation charges are not included.
Important Notice: Damaged Parts Disposal Policy: Any damaged, worn, or unusable parts removed during the rebuild process will be disposed of by Engineered Motorsport Solutions (EMS) unless the customer specifically requests their return prior to the start of the build. EMS is not responsible for retaining or returning parts that have not been identified for return before work begins.
ENGINE-ONLY SHIPPING OPTIONS
#1.) Terminal to Terminal Shipping ($750 Each Way, when available) – Goes to a shipping terminal that is in or near the destination zip code. EMS will email shipping & tracking information to the email on the engine order. When the destination terminal receives your engine, they will call you to arrange pick-up.
#2.) Door to Door Shipping ($950 Each Way)- Goes directly to your door commercial or residential.
Engine Shipment Disclaimer
**Short block shipping is NOT included in the price. Shipping option are listed in drop-downs above (limited to the continental US.) Restrictions may apply based on residential area and shipper limitations. An EMS representative will reach out if these restrictions apply to your purchase.**
Engine Shipment Policy – Inspect Before Accepting
EMS is not responsible for any engine damage that occurs during shipping. Before accepting and signing your shipment, you must carefully inspect the pallet or crate for any visible damage. If there is any sign of damage that could have affected the engine, do not accept the shipment. Instead, refuse delivery and have it returned to EMS through the carrier. Finally, contact Susan at EMS to start the claims process. Always inspect your engine before signing the freight carriers Clear Delivery Receipt.
Important: The freight carrier is not automatically responsible for damages once the shipment is signed for. If you accept a damaged shipment, you take full responsibility for any damage, and neither EMS nor the carrier will be liable.
ENGINE INSTALLATION OPTIONS
#1.) Base Install (Mustang/Focus)
EMS will install a base map provided by your tuner. You’ll pick up the car and complete your own break-in and e-tune later. (Fluids billed separately; pricing TBD by platform.)
#2.) Base Install + Turn Key “Out the Door”
EMS will complete the break-in and perform a final dyno tune before delivery. You pay for break-in and dyno time at pickup. (Live tuning cost not included.)
Break-In Details: 500 miles of proper street driving performed in-house. Includes oil change & filter replacement, full fluid inspection & top-off, pump gas, and final health & performance inspection.
Dyno Tuning Cost: Remote tuning support is $100/hour. If you hit 4+ hours, full-day support is $650.
Dyno Rental Cost: $350 for 2 hours ($175/hour). Optional live tuning is available with Ryan or Westley at $100/hour (must be scheduled in advance). Remote tuning support included (WiFi available). FWD & RWD only. AWD must be switchable to FWD.
Break-In Procedures: We recommend 500 miles of street driving with engine braking. Don’t be afraid to see some boost! Use 5w30 non-synthetic oil and a FL400S oil filter. At 500 miles, switch to your preferred oil.
BREAK-IN PROCEDURES
We recommend 500 miles of street driving with lots of engine braking and don’t be afraid to see some boost. Use a 5w30 non-synthetic and a FL400S oil filter. At 500 miles change the oil to whatever oil you like.
Start your build today;
Call us (423) 500-4901 or
Email us at sales@emsinc-tn.com
WWW.EMSINC-TN.COM
| Choose Your Vehicle | Mustang, Focus RS, Focus ST |
|---|---|
| Choose Rebuild Type | Budget Rebuild, Badass Rebuild |
| Choose Block Option | 2.3L Block -, TS Block, (New) ST Block, (Used) ST Block, (Used) MZR Block, (BYOB) Bring Your Own Block |
Brand
Engineered Motorsport Solutions
Engineered Motorsport Solutions, led by Jessie Ringley, is the leader in EcoBoost performance, specializing in Mustang EcoBoost enhancements. As the owner and driver of the world’s fastest and quickest Ford Mustang EcoBoost, Jessie and his team of experts bring unmatched expertise. Engineered Motorsports Solutions offers a range of professional services including custom tuning by Ryan Martin, high horsepower engine builds, and offers a collection of high-performance parts for various Ford EcoBoost models.
