EMS – 5 Bar MAP Sensor Kit with AEM 5 bar MAP Sensor for 2015-2023 Mustang 2.3L EcoBoost

EMS – 5 Bar MAP Sensor Kit

Required upgrade for high-boost and big turbo EcoBoost builds exceeding the limits of the factory MAP sensor.

The EMS AEM 5-Bar MAP Sensor Kit is designed for Mustang EcoBoost builds pushing beyond the limits of the factory MAP sensor. When increasing boost pressure or upgrading to a larger turbocharger, the stock sensor can no longer accurately measure manifold pressure.

The factory EcoBoost MAP sensor maxes out at roughly 29 psi of boost, which limits how much boost the ECU can properly read and control. Upgrading to a 5-bar MAP sensor allows the ECU to accurately read significantly higher pressure levels, giving your tuner the data needed for safe and precise tuning on high-performance builds.

Whether you’re running a big turbo setup, aggressive custom tuning, or pushing your EcoBoost to higher horsepower levels, this kit ensures your ECU receives accurate manifold pressure data for optimal performance.

Why Upgrade to a 5-Bar MAP Sensor

• Allows accurate boost readings beyond the factory sensor limit
• Required for high-boost and big turbo setups
• Provides critical pressure data for precise ECU tuning
• Supports higher horsepower EcoBoost builds
• Proven AEM sensor technology used in motorsports applications

MAP sensors provide the ECU with manifold pressure data used to calculate airflow, fueling, and ignition timing, making accurate readings essential for high-performance tuning.

Kit Includes

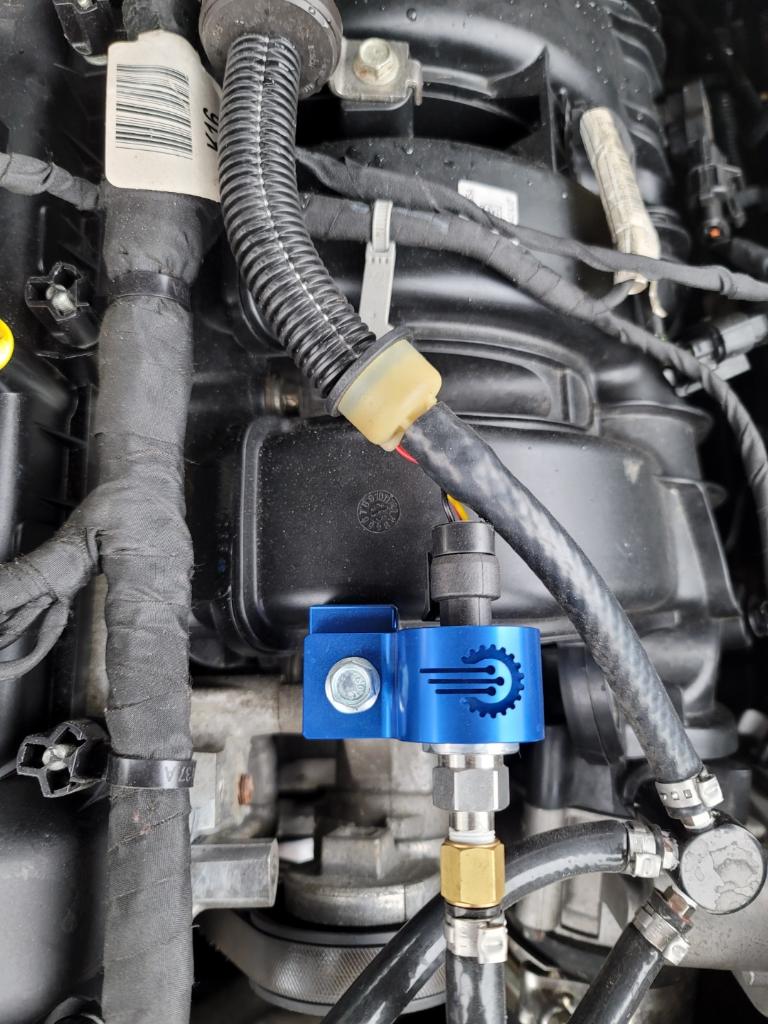

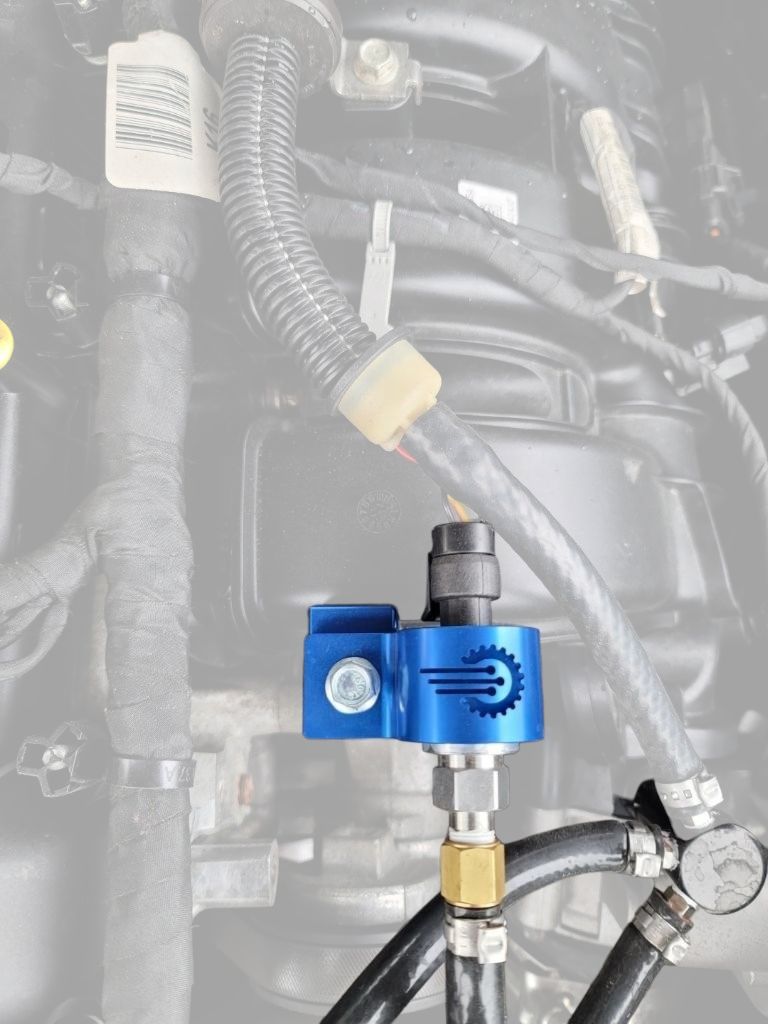

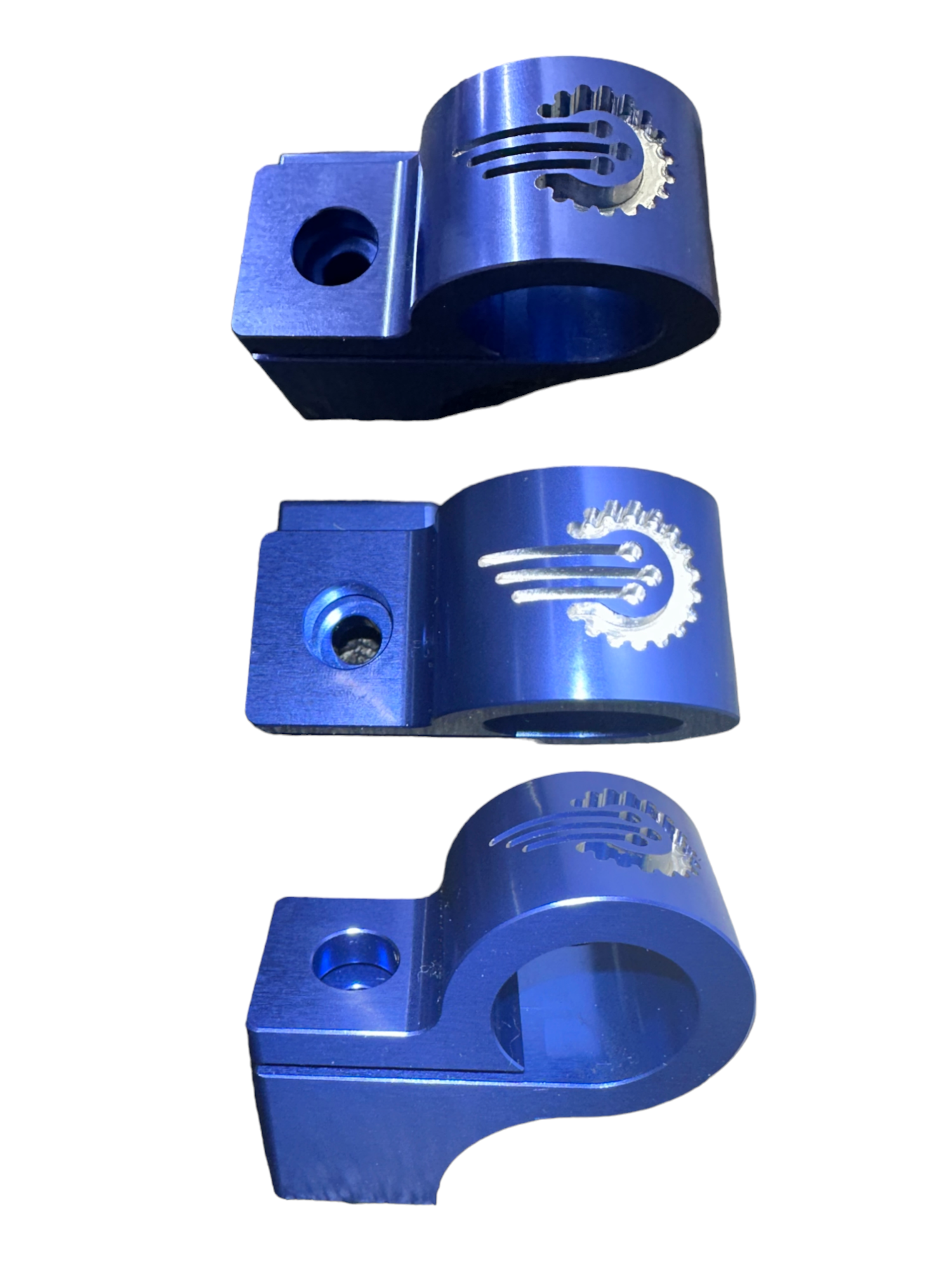

• EMS AEM 5-Bar MAP Sensor Billet Bracket
(EMS Blue with logo as seen in photos)

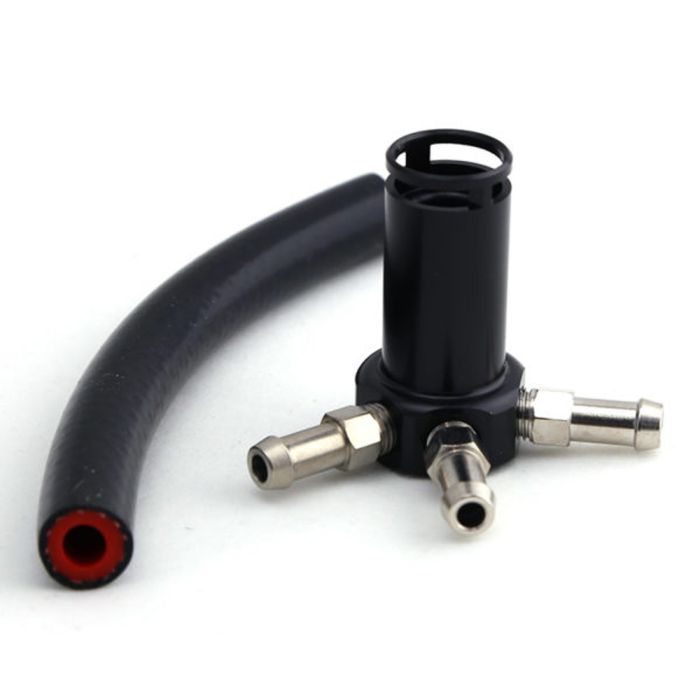

• Turbosmart Boost Reference Adapter
(2015+ Ford Mustang EcoBoost – Black)

• AEM 5-Bar MAP Sensor

• 1 ft HPS vacuum line

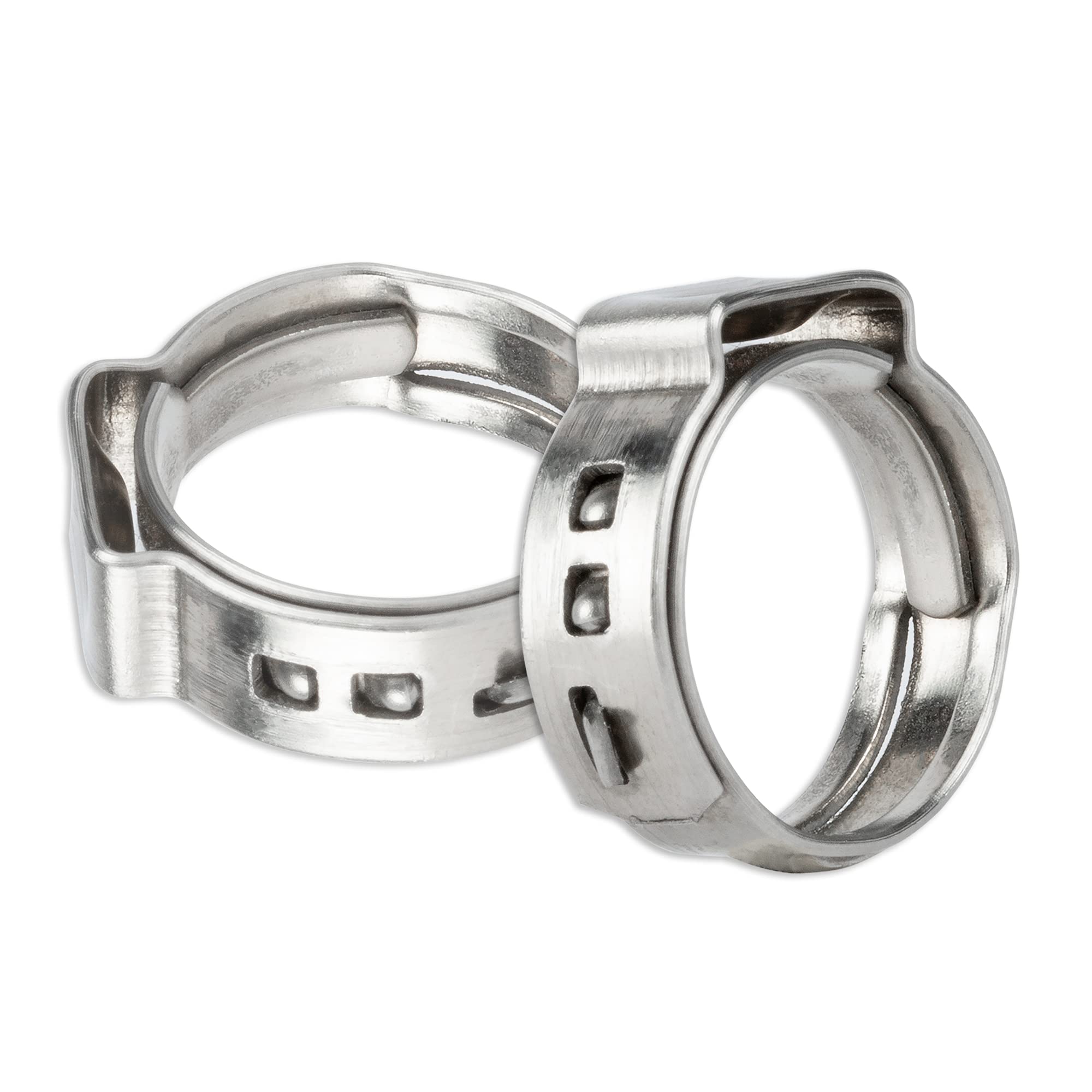

• (2) PEX clamps

• (1) 20 mm M6 socket head cap screw

• Pre-wired / assembled adapter

• Installation instructions
(link available on our FAQ page)

Fitment

2015–2023 Ford Mustang EcoBoost
2.3L Turbocharged Engine
