CVF – Performance Intercooler for 2024-2025 Ford Ranger 2.3/2.7L EcoBoost

CVF – Performance Intercooler for 2024-2025 Ford Ranger 2.3/2.7L EcoBoost

• Direct bolt-on replacement – no modifications required other than removal of the AGS (active grille shutters)


• +28HP and +45TQ gains on the dyno with no tune required (data in graph below)

• +31 degree reduction in Charge Air Temps. (IAT2) observed in real-world conditions (data in graph below)

• 58% greater internal core volume and 144% increase in external fin surface in comparison to the OEM intercooler


• High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum


• TIG-welded bar-and-plate construction

• CVF Lifetime Warranty

LESS HEAT, MORE POWER

Improve the performance of your Bronco by replacing the small, inefficient stock intercooler to reduce heat and produce more top-end power. This intercooler is a direct fit replacement that features a core over 58% larger than the stock unit.

As the charts show in the images above, the CVF Performacne Intercooler saw Charge Air Temps. (IAT2) DECREASE -9 degrees compared to the OEM intercooler’s +22 degree INCREASE during a 20 – 80 MPH run under similar conditions: the same stretch of road, the same vehicle, and in the same ambient temps. (the only change to the vehicle was the intercooler).

The CVF Performance Intercooler realized a whopping +31 degree improvement over the OEM intercooler in real-world street testing by an unbiased, third-party tester where it matters: on the street in day-to-day driving.

Taking it one step further, the above chart shows that on the dyno the CVF Performance Intercooler alone yielded a +28HP and +45TQ gain on a 2.7L model. Note that this is WITHOUT a tune, which would help enhance the gains even further.

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

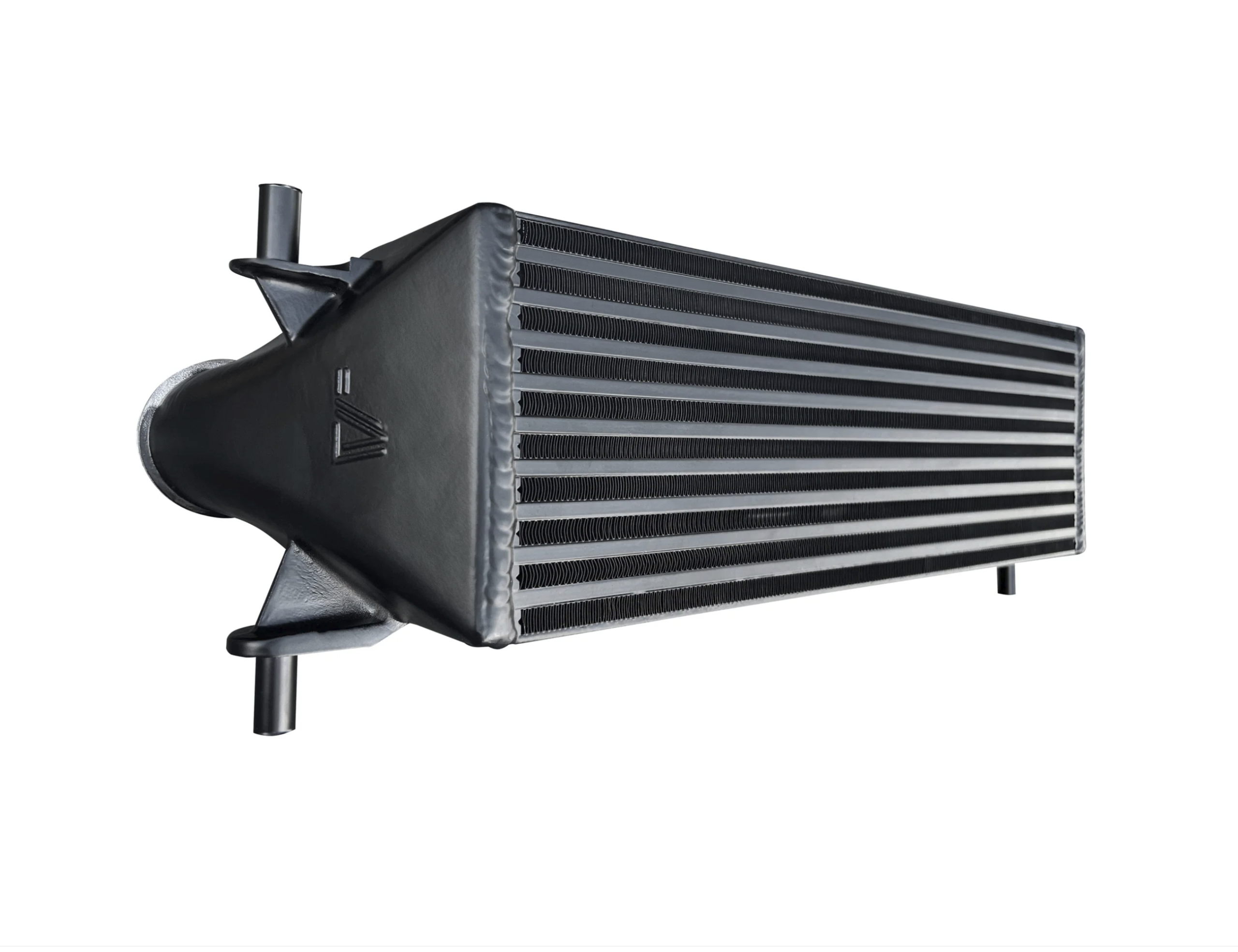

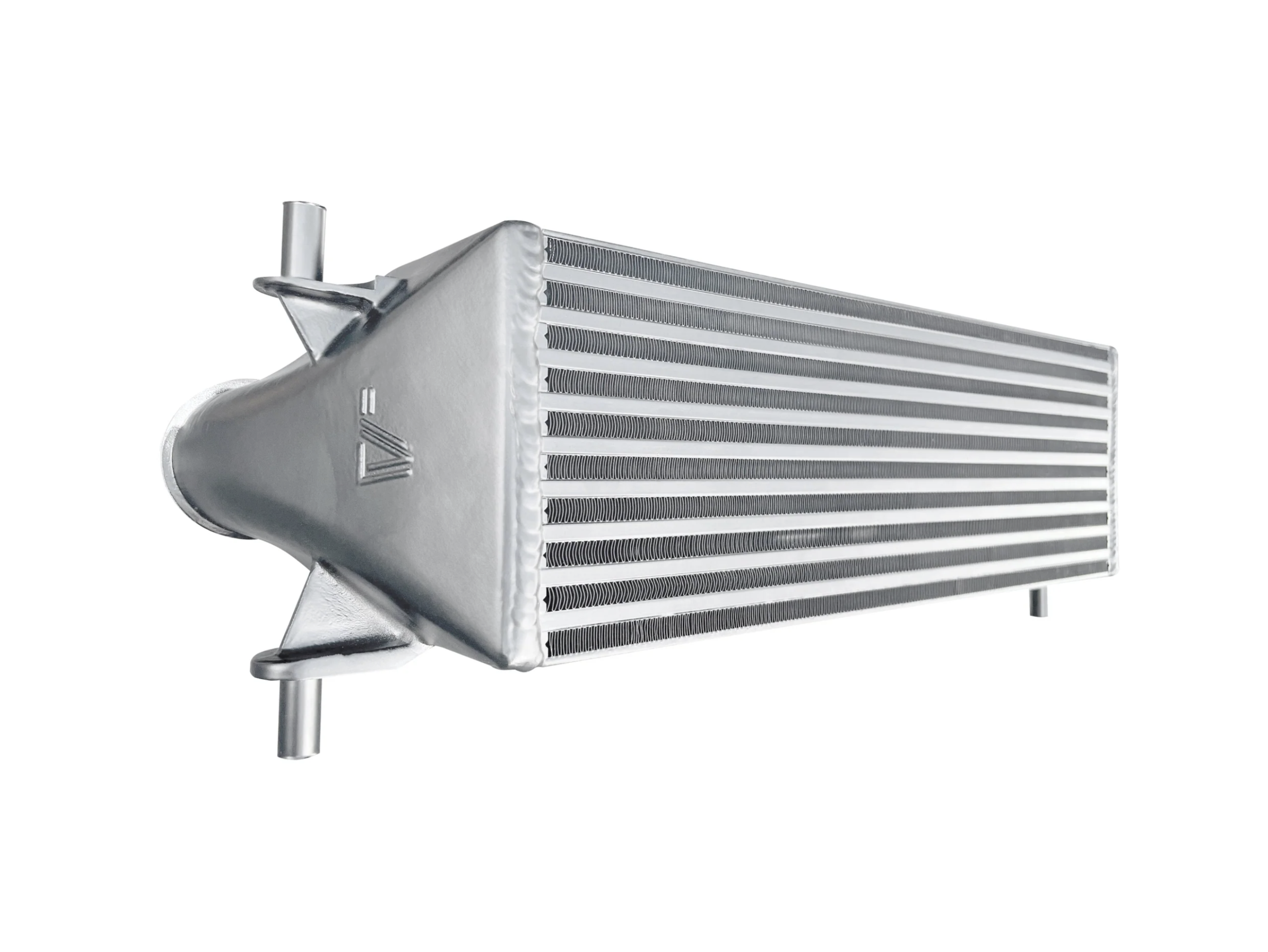

Manufactured from top-grade aluminum, the CVF Performance Intercooler features a TIG-welded proprietary bar-and-plate design for maximum durability and fully cast end tanks (imprinted with the CVF logo) to ensure maximum flow of air into the unit and out to your turbo – equaling more HP.

APPLICATION AND INSTALLATION

The active grille shutters (AGS) have to be removed for installation. There is no check engine light associated with removal of the AGS and they can be placed back on the vehicle if the intercooler is removed.

This part installs on the following vehicles:

• 2021-2025 Ford Bronco 2.3L/2.7L engines

• 2024-2025 Ford Ranger 2.3L/2.7L engines
