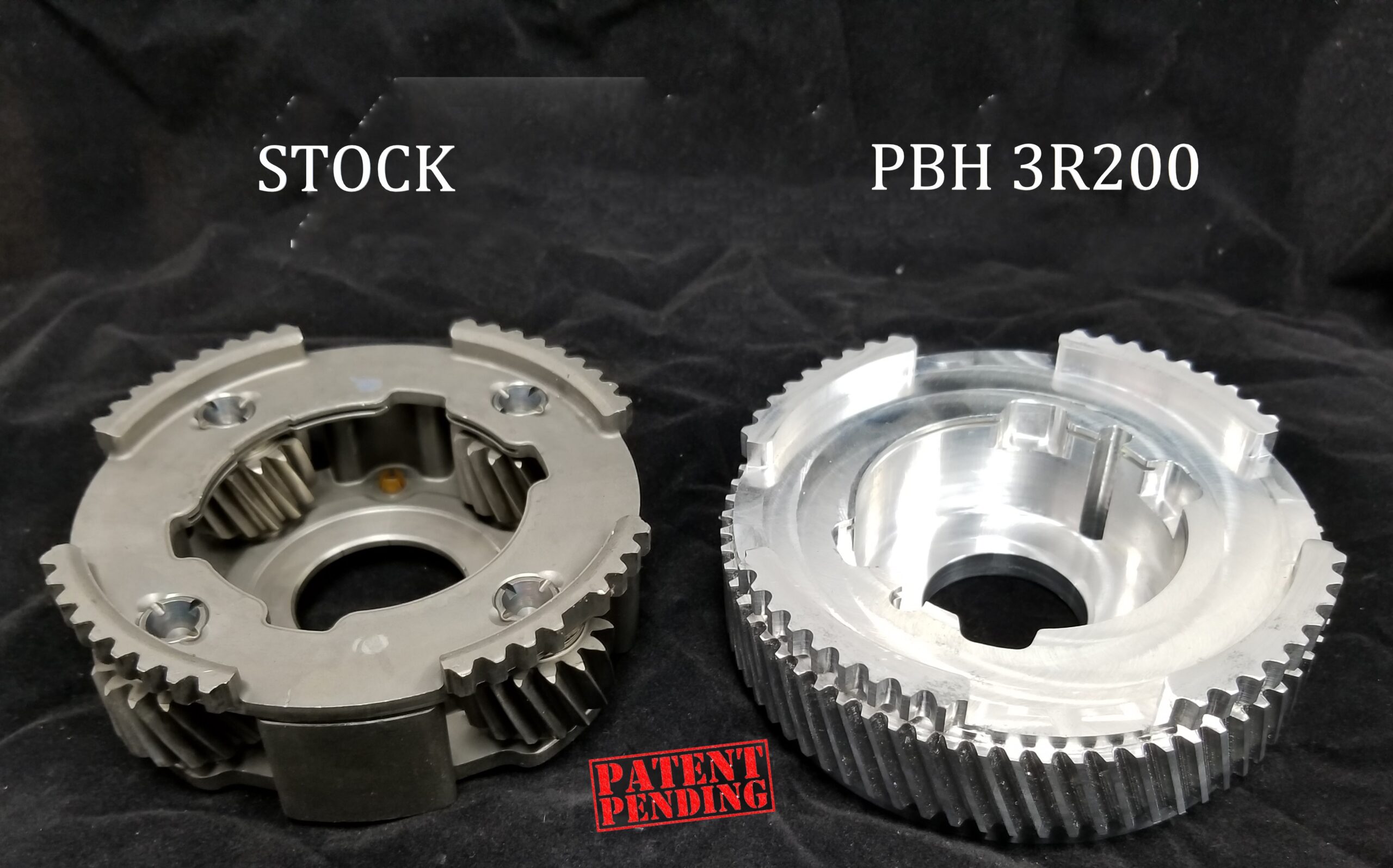

After years of pushing the 6R80 to its limits on the street and at the track, PBH is proud to introduce one of our most game-changing innovations: the 3R200 Forward Hub. Designed to eliminate a known weak point and rewrite how your 6R80 performs, this upgrade is more than a replacement — it’s a serious performance advantage.

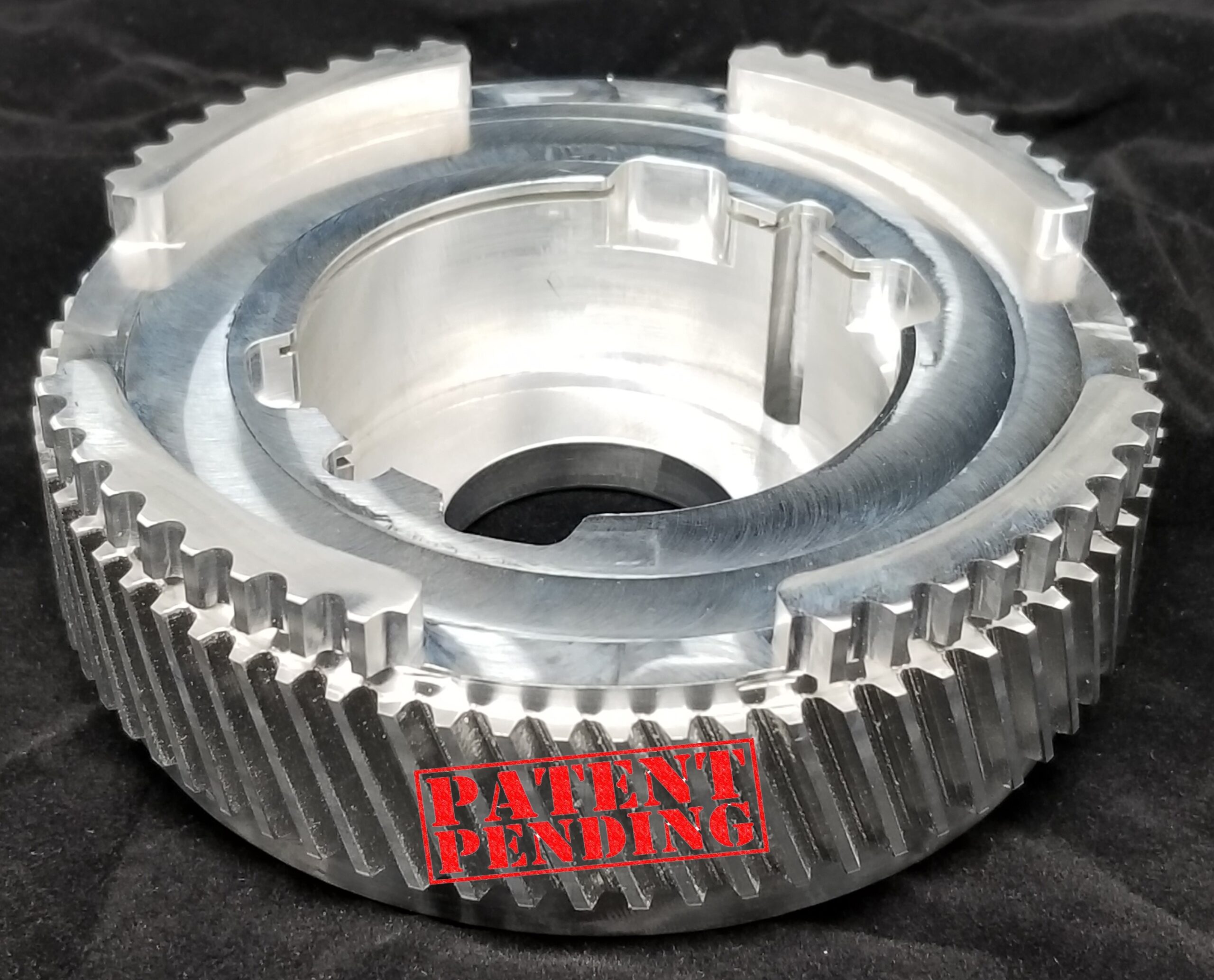

Through extensive testing (and some heavy abuse), we identified the forward planetary as a failure-prone component under high torque. So, we didn’t just strengthen it — we replaced it entirely with the 3R200. Built from lightweight and durable 7075 aluminum, the 3R200 changes your gear ratios to shift stress away from common weak spots like the OD clutches, intermediate shaft, and factory planetary. The result? Harder launches, more stable acceleration, and cleaner shifts — without sacrificing lockup or trans-brake functionality.

New Gear Ratios with 3R200:

  • 1st: 2.74

  • 2nd: 1.54

  • 3rd: 1.00

This direct replacement installs with no machining required, and custom tuning is required to get the most out of it. Lund Racing offers a base file for 3-speed setups using SCT devices, making it easy to integrate into your existing tune.

Recommended Rear Gear Ratios (with 28″ tire):

  • For 170–200 MPH: 3.31 – 3.55

  • For 165–170 MPH: 3.55 – 3.73

Why 3R200?

  • “3” = 3-speed

  • “R” = Reverse capable

  • “200” = Rated for 2,000 ft/lbs torque

  • Proudly made in the USA

Note: Always consult your tuner and converter supplier to ensure your combo is optimized for the new gearing.

Works on all 2015-2017 Mustang 6R80 transmissions
