EMS – 3.0L Long Block Rebuild for 2020-2024 Explorer ST

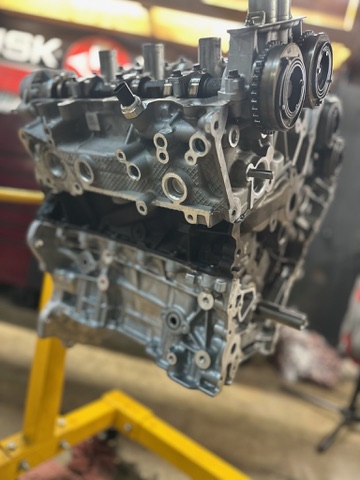

The EMS 3.0L Long Block Rebuild for 2020-2024 Explorer ST is a complete rebuild designed with strength and reliability at its core. Each engine is assembled in-house using EMS-spec components and precision machining, making it a solid choice for high-performance EcoBoost 3.0 applications.

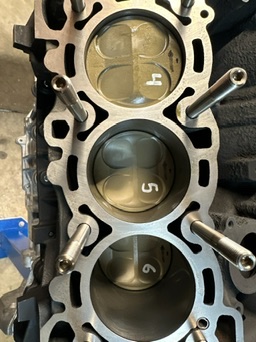

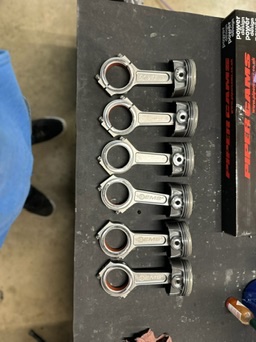

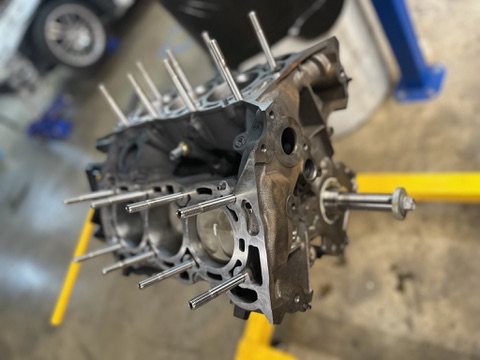

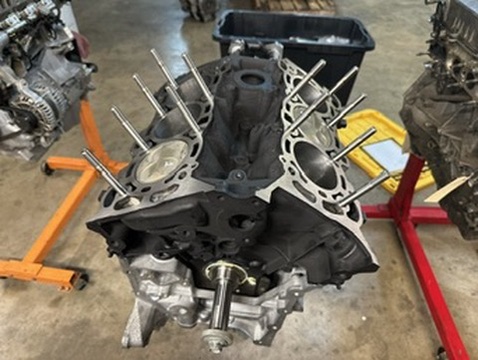

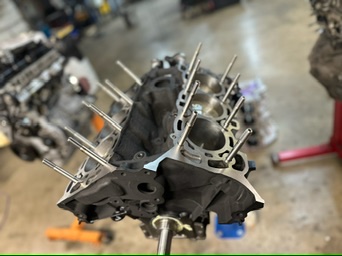

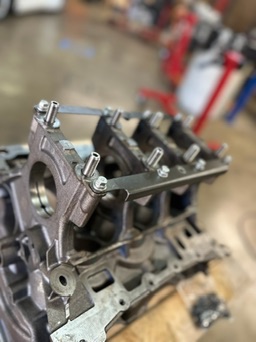

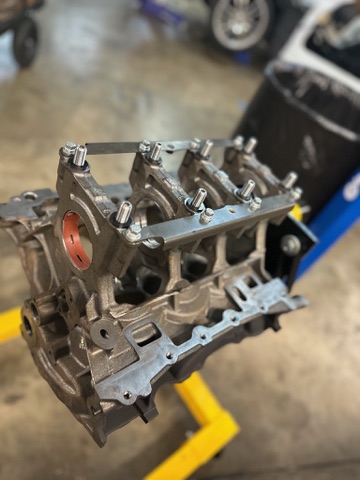

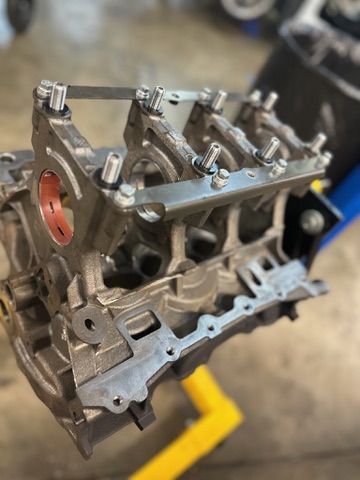

The short block is equipped with EMS I-Beam rods for increased durability, Mahle EMS-spec 3.0 pistons for precise fitment and strength, and a brand-new crankshaft and rod bearings. To handle elevated cylinder pressures, EMS-spec ARP 625+ head studs are included, ensuring consistent clamping force under demanding conditions.

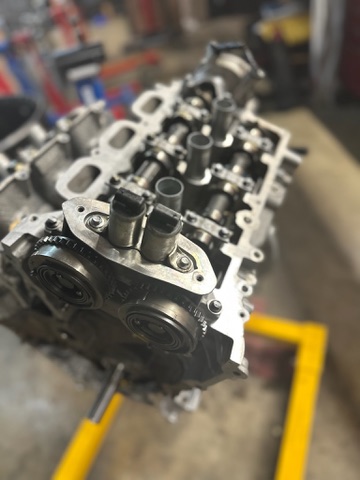

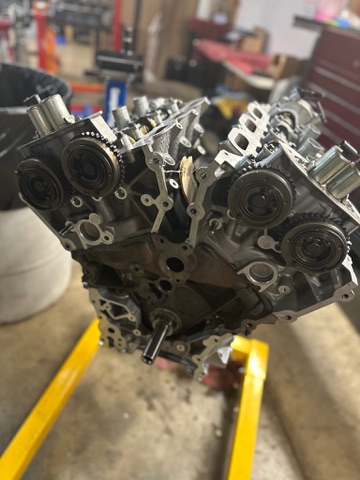

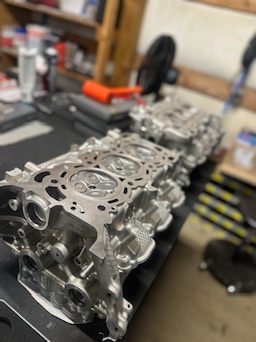

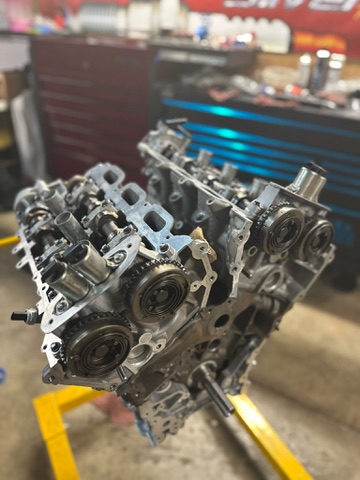

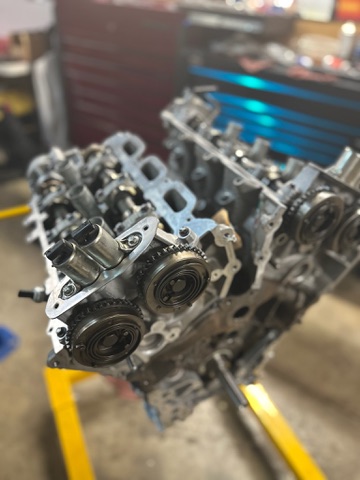

The cylinder heads are fully disassembled, cleaned, and resurfaced before receiving extensive upgrades. Each head is pocket ported for improved airflow and sealed with copper O-rings for added reliability. Kelford beehive springs and retainers are installed to provide improved valve control at higher RPMs. All timing components are refreshed, including the VCT solenoid, timing chain, guides, and arms, ensuring the valvetrain is ready for long-term use.

For customers whose cores are not usable, the “Core is Blown Up” option is available for an additional $3,100. This adds new upper and lower block sections, crankshaft, oil squirters, cam phasers, oil pump, valve lifters, timing tensioners, and an oil cooler to ensure the build starts with a clean, fully renewed foundation.

Short Block Features

• EMS I-Beam Rods

• Mahle EMS Spec 3.0 Pistons

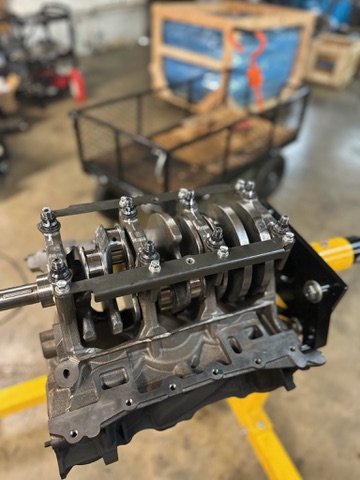

• New Crank and Rod Bearings

• EMS Spec ARP 625+ Head Studs

Cylinder Head Upgrades

• Torn down, cleaned, and resurfaced

• Pocket ported with copper O-ringed sealing

• Kelford Beehive Springs and Retainers

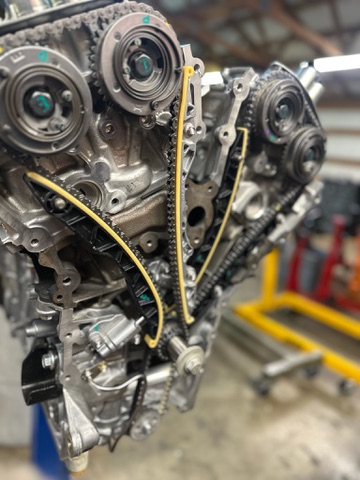

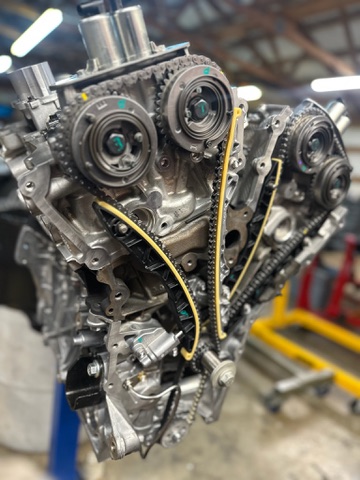

• Updated timing components (VCT solenoid, timing chain, guide, arms)

Optional Upgrade If your core is not usable, choose the “Core is Blown Up” option for an additional $3,100.

This adds all-new components including:

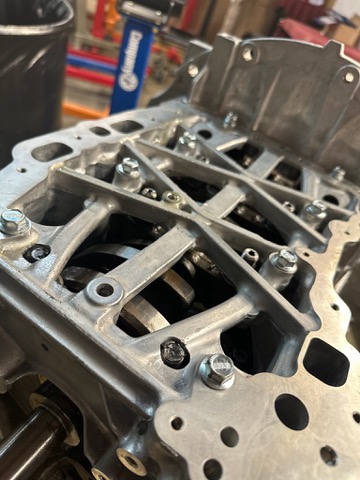

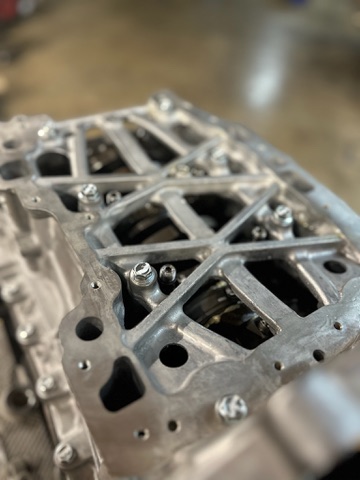

• Upper and lower block

• Crankshaft

• Oil squirters

• Cam phasers

• Oil pump

• Valve lifters

• Timing tensioners

• Oil cooler

Engine Shipment Disclaimer

We offer commercial freight Shipping ($750 Each Way).

**Short block shipping is NOT included in the price. Shipping option are listed in drop-downs above (limited to the continental US.) Restrictions may apply based on residential area and shipper limitations. An EMS representative will reach out if these restrictions apply to your purchase.**

Engine Shipment Policy – Inspect Before Accepting

EMS is not responsible for any engine damage that occurs during shipping. Before accepting and signing your shipment, you must carefully inspect the pallet or crate for any visible damage. If there is any sign of damage that could have affected the engine, do not accept the shipment. Instead, refuse delivery and have it returned to EMS through the carrier. Finally, contact Susan at EMS to start the claims process. Always inspect your engine before signing the freight carriers Clear Delivery Recepit.

Important: The freight carrier is not automatically responsible for damages once the shipment is signed for. If you accept a damaged shipment, you take full responsibility for any damage, and neither EMS nor the carrier will be liable.

Engine Installation:

#1.) Base Install (Mustang/Focus)
EMS will install a base map provided by your tuner. You’ll pick up the car and complete your own break-in and e-tune later. (Fluids billed separately; pricing TBD by platform.)

#2.) Base Install + Turn Key “Out the Door”
EMS will complete the break-in and perform a final dyno tune before delivery. You pay for break-in and dyno time at pickup. (Live tuning cost not included.)

Break-In Details: 500 miles of proper street driving performed in-house ($1 per mile). Includes oil change & filter replacement, full fluid inspection & top-off, pump gas, and final health & performance inspection.

Dyno Tuning Cost: Remote tuning support is $150/hour. If you hit 4+ hours, full-day support is $650. In-house tuning is $100/hour.

Dyno Rental Cost: $350 for 2 hours ($175/hour). Optional live tuning is available with Ryan or Westley at $100/hour (must be scheduled in advance). Remote tuning support included (WiFi available). FWD & RWD only. AWD must be switchable to FWD.

Break-In Procedures: We recommend 500 miles of street driving with engine braking. Don’t be afraid to see some boost! Use 5w30 non-synthetic oil and a FL400S oil filter. At 500 miles, switch to your preferred oil.

Break-In Procedures — Recommended 500 Miles:

Follow our guidelines for a smooth break-in, ensuring 500 miles of street driving with recommended oil and filter changes. Engine braking is encouraged during the 500 mile break in period. Always start with a base map from your tuner.

**All engine sales are final 14 days after purchase, before 14 days cancellations are subject to a pro-rated 20% cancellation fee**

Engine component failure is not covered under any warranty, however, craftsmanship is warrantied and guaranteed 100%!

Start your build today;

Call us (423) 500-4901 or

Email us at sales@emsinc-tn.com
