UAFS Wiring Guide 2018+ EcoBoost Mustang

UAFS Wiring Guide 2018+ EcoBoost Mustang – Jessie Ringley

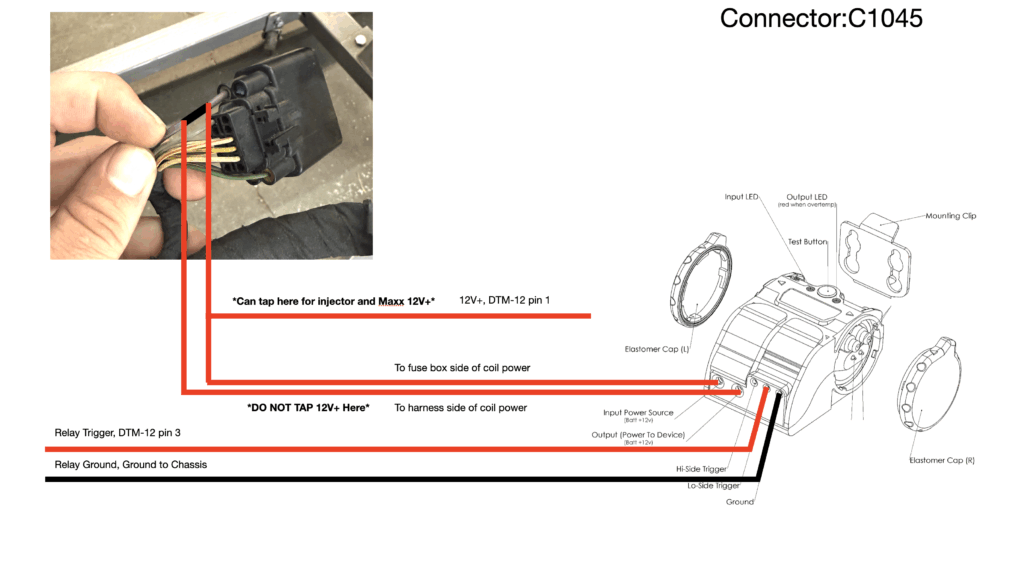

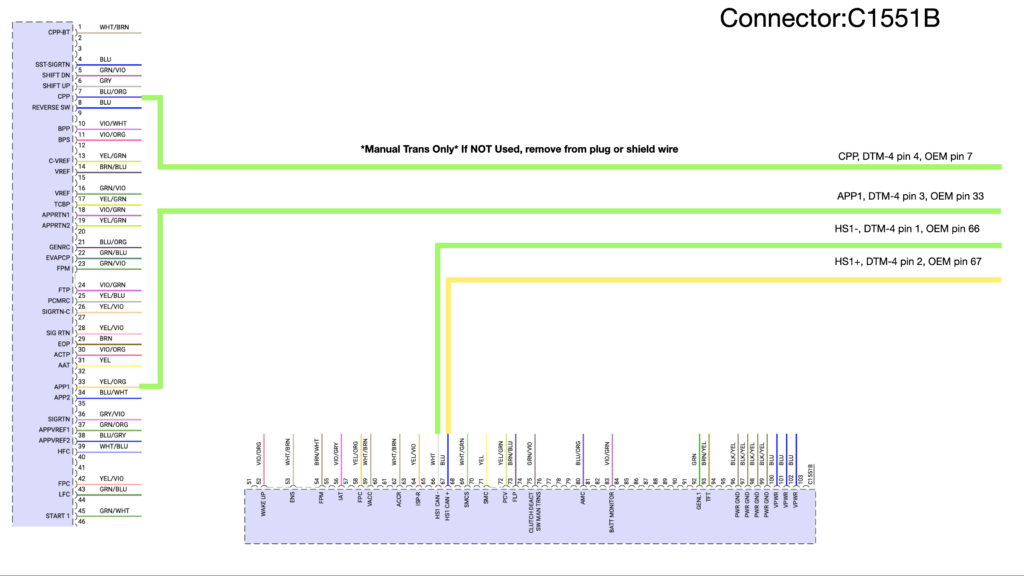

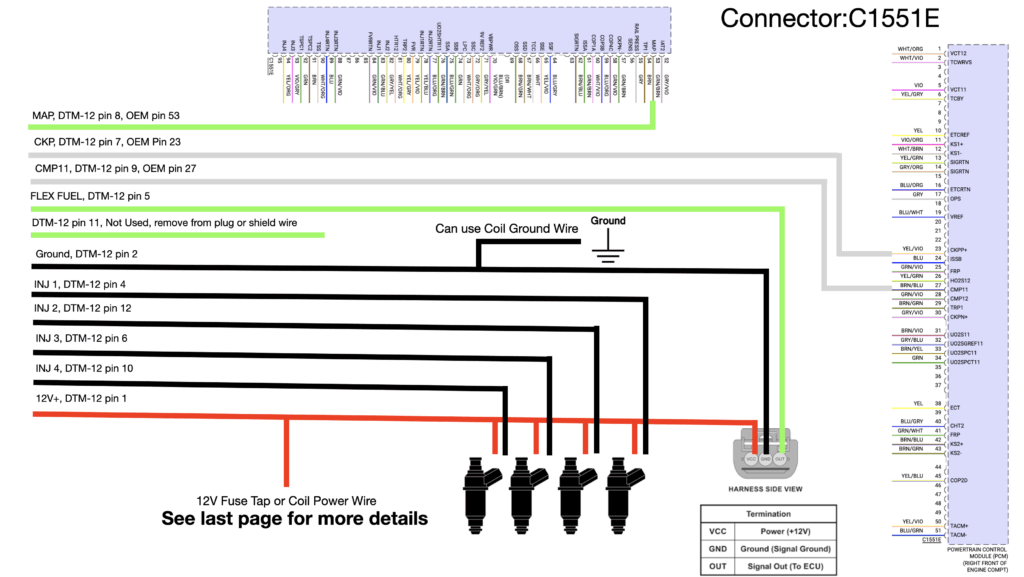

This set of wiring diagrams is a detailed guide for installing the EMS Ultimate Aux Fuel System (UAFS) on a 2018 Ford Mustang 2.3L EcoBoost. It outlines how to properly connect power, ground, sensors, and injector control wires to the factory harness using specific connectors (C1045, C1551B, and C1551E). The guide shows where to tap for safe 12V+ power, how to wire the relay trigger and ground, and how to connect key inputs like the MAP sensor, crank and cam position sensors, flex fuel sensor, and the accelerator pedal. It also includes injector pin assignments and instructions for removing unused wires to avoid interference. Overall, the purpose is to ensure clean integration of the UAFS with the OEM ECU and harness, supporting additional fuel delivery for high-performance or ethanol-tuned EcoBoost builds.
This set of wiring diagrams is a detailed guide for installing the EMS Ultimate Aux Fuel System (UAFS) on a 2018 Ford Mustang 2.3L EcoBoost. It outlines how to properly connect power, ground, sensors, and injector control wires to the factory harness using specific connectors (C1045, C1551B, and C1551E). The guide shows where to tap for safe 12V+ power, how to wire the relay trigger and ground, and how to connect key inputs like the MAP sensor, crank and cam position sensors, flex fuel sensor, and the accelerator pedal. It also includes injector pin assignments and instructions for removing unused wires to avoid interference. Overall, the purpose is to ensure clean integration of the UAFS with the OEM ECU and harness, supporting additional fuel delivery for high-performance or ethanol-tuned EcoBoost builds.
This entry was posted in . Bookmark the permalink.
Jessie Ringley

Cobb Accessport Serial Number & ECU Definition Location for custom tuning
UAFS Wiring Guide 2013-2014 Focus ST
