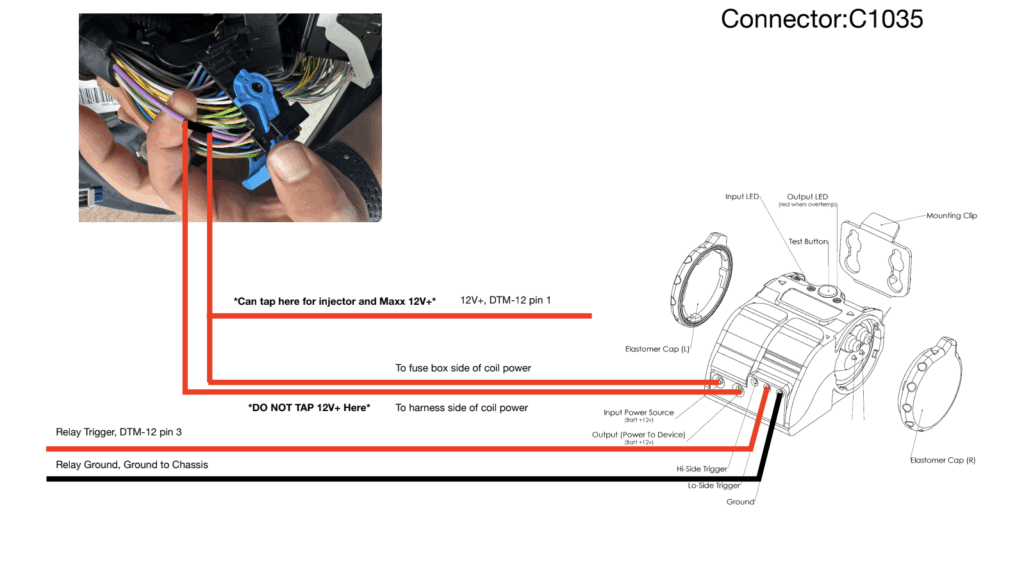

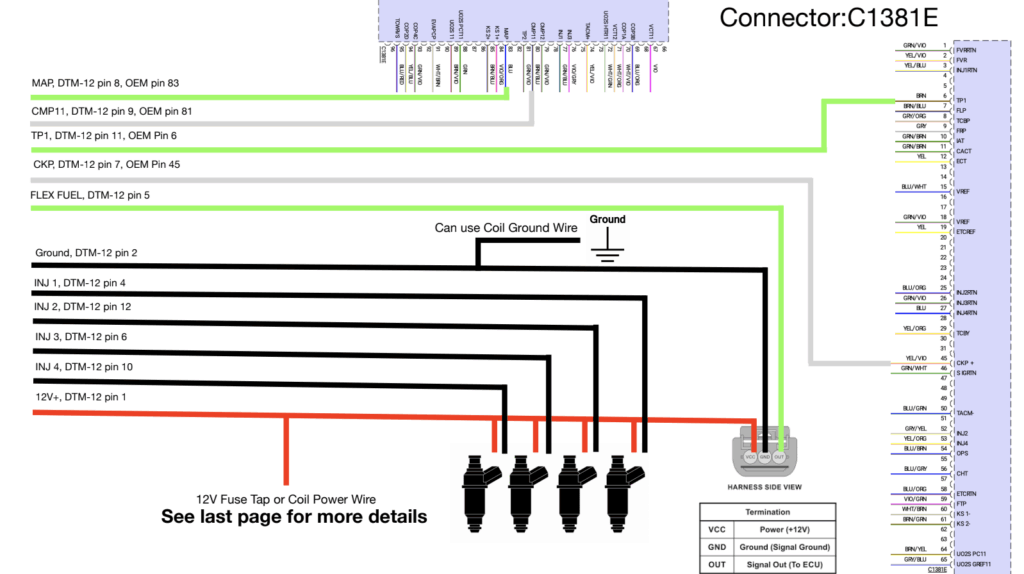

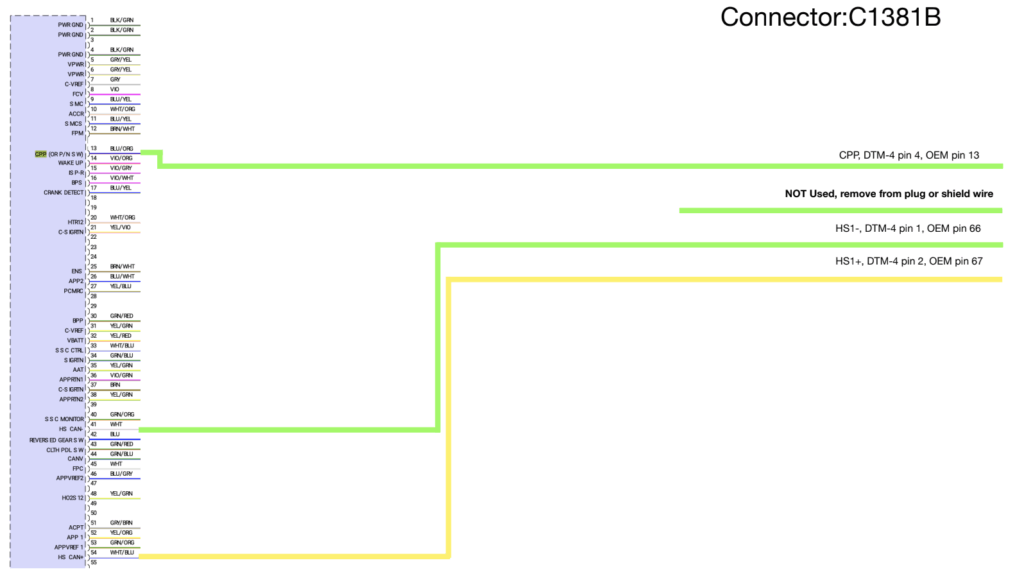

UAFS Wiring Guide 2013-2014 Focus ST

UAFS Wiring Guide 2013-2014 Focus ST – Jessie Ringley

This entry was posted in . Bookmark the permalink.
Jessie Ringley

UAFS Wiring Guide 2018+ EcoBoost Mustang
UAFS Wiring Guide 2015+ Focus ST
